Zettler Magnetics is a leading manufacturer of transformers and magnetic components, offering over 140 years of industry expertise in power products for diverse applications.
Parts that are not part of a series
Company background and product focus
Zettler Magnetics, Inc., a Zettler Group company headquartered in Aliso Viejo, California, provides application engineering, sales, and distribution for a comprehensive range of transformers and magnetic components across North America. With over 140 years of industry-leading support and technological innovation, Zettler Magnetics delivers solutions for the most demanding power applications.
The company's extensive product portfolio includes:
Zettler Magnetics serves a wide range of industries including appliances, LED lighting, industrial controls, medical devices, e-mobility, food and beverage, telecommunications, and energy management systems. Their design and manufacturing capabilities support both standard and custom designs for specialized applications.
© 2026 Zenode. All rights reserved.
Product families from Zettler Magnetics
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Zettler Magnetics that are not part of a series
| Part Information | Pricing (lowest) | Height - Seated (Max) | Current Rating | Size / Dimension Width | Size / Dimension Length | Turns Ratio - Secondary | Turns Ratio - Primary | DC Resistance (DCR) | Mounting Type | Termination Style | Frequency Range (Min) | Frequency Range (Max) | Current Ratio | Type | Inductance | Primary Winding(s) | Current - Output (Max) Series | Current - Output (Max) Parallel | Center Tap | Voltage - Primary | Voltage - Secondary (Full Load) (Series) | Voltage - Secondary (Full Load) (Parallel) | Voltage - Isolation | Power - Max | Secondary Winding(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Zettler Magnetics CURRENT SENSE TRANSFORMER | Sign in to see pricing | 16.51 mm | 30 A | 0.69 in | 0.807 in | 500 | 1 | 0.6 mOhm | Through Hole | PC Pin | 50 Hz | 200 Hz | 500 ratio | Invasive | 730 mH | — | — | — | — | — | — | — | — | — | — |
Zettler Magnetics CURRENT SENSE TRANSFORMER | Sign in to see pricing | 16.51 mm | 30 A | 0.69 in | 0.807 in | 1000 | 1 | 0.6 mOhm | Through Hole | PC Pin | 50 Hz | 200 Hz | 1000 ratio | Invasive | 2.4 H | — | — | — | — | — | — | — | — | — | — |

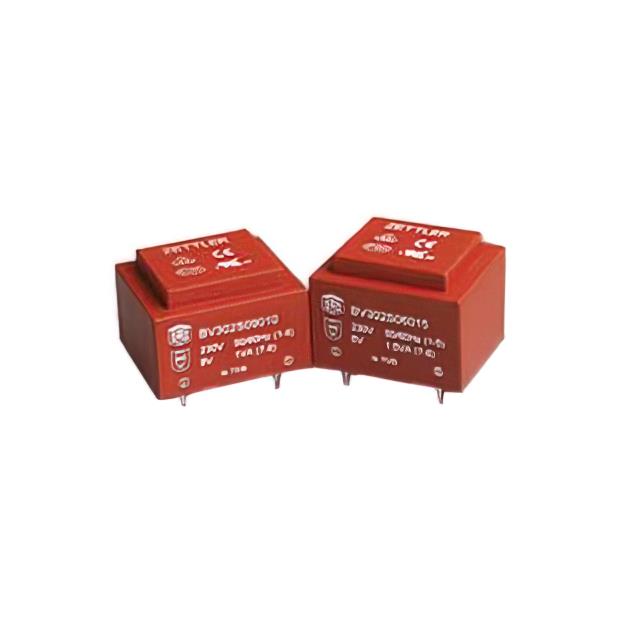

 Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual, Multiple Taps | 110 mA | 220 mA | No | 115V, 230V | 10 V | 5 V | 2500 Vrms | 1.1 W | Dual, Multiple Taps |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual, Multiple Taps | 90 mA | 180 mA | No | 115V, 230V | 12.6 V | 6.3 V | 2500 Vrms | 1.1 W | Dual, Multiple Taps |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual, Multiple Taps | 70 mA | 140 mA | No | 115V, 230V | 16 V | 8 V | 2500 Vrms | 1.1 W | Dual, Multiple Taps |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual | 55 mA | 110 mA | No | 115V, 230V | 20 V | 10 V | 2500 Vrms | 1.1 W | Dual |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual, Multiple Taps | 45 mA | 90 mA | No | 115V, 230V | 24 V | 12 V | 2500 Vrms | 1.1 W | Dual, Multiple Taps |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual, Multiple Taps | 40 mA | 80 mA | No | 115V, 230V | 28 V | 14 V | 2500 Vrms | 1.1 W | Dual, Multiple Taps |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual | 30 mA | 60 mA | No | 115V, 230V | 36 V | 18 V | 2500 Vrms | 1.1 W | Dual |
Zettler Magnetics PWR XFMR 1.1VA TH | Sign in to see pricing | — | — | 30 mm | 35.1 mm | — | — | — | Through Hole | PC Pin | — | — | — | — | — | Dual | 23 mA | 46 mA | No | 115V, 230V | 48 V | 24 V | 2500 Vrms | 1.1 W | Dual |
