Product families from Z-Communications, Inc.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Z-Communications, Inc. that are not part of a series
| Part Information | Pricing (lowest) | Current - Supply | Package / Case | Mounting Type | Gain (Min) | Gain (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | P1dB | Noise Figure | Frequency (Min) | Frequency (Max) | Package Name | 2nd Harmonic (Typ) (dBc) | Phase Noise Typ (dBc/Hz) | Power (dBm) (Nominal) | Power (dBm) Tolerance | Pushing (MHz/V) | Size / Dimension Width | Size / Dimension Length | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply | Icc Max | Height | Frequency - Center | Frequency Range (Min) | Frequency Range (Max) | Height - Seated (Max) | Current - Supply (Max) | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Z-Communications, Inc. DC TO 22GHZ LOW NOISE AMPLIFIER | Sign in to see pricing | 72 mA | Module, SMA Connectors | User Defined | 10 dB | 13 dB | 20 V | 6 V | 19 dBm | 2.5 dB | 0 Hz | 22 GHz | Module | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Z-Communications, Inc. 10KHZ TO 20GHZ LOW NOISE AMPLIFI | Sign in to see pricing | 120 mA | Module, SMA Connectors | User Defined | 15 dB | 17 dB | 20 V | 6 V | 19 dBm | 3 dB | 10 kHz | 20 GHz | Module | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

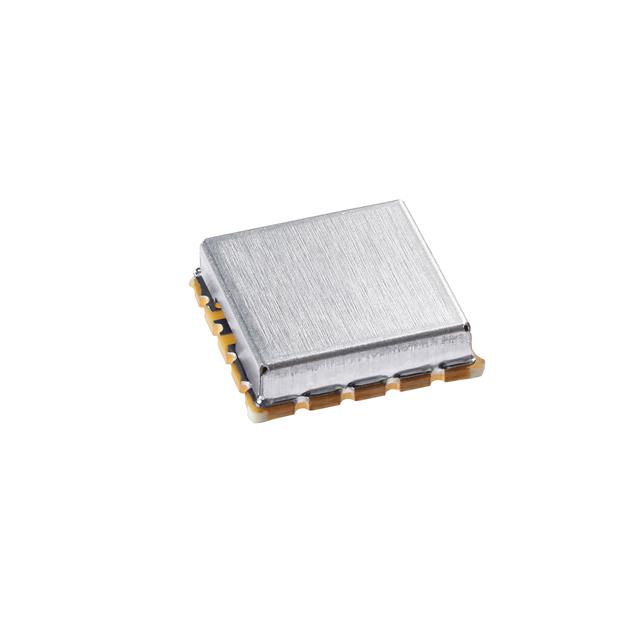

 Z-Communications, Inc. VCO FREQUENCY 1000 MHZ - 1000 MH | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | -5 dBc | -121 dBc/Hz | 3 dBm | 3 dBm | 0.5 MHz/V | 0.5 in | 0.5 in | -40 °C | 85 °C | 5 VDC | 18 mA | 0.13 in | 1 GHz | — | — | — | — | — |
Z-Communications, Inc. VCO FREQUENCY 2000 MHZ - 2000 MH | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | -15 dBc | -118 dBc/Hz | 7 dBm | 2 dBm | 0.5 MHz/V | 0.5 in | 0.5 in | -40 °C | 85 °C | 6 V | 28 mA | 0.22 in | 2000 MHz | — | — | — | — | — |
Z-Communications, Inc. VCO FREQUENCY 2400 MHZ - 2400 MH | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | -12 dBc | -116 dBc/Hz | 4 dBm | 2 dBm | 1 MHz/V | 0.5 in | 0.5 in | -40 °C | 85 °C | 5 VDC | 36 mA | 0.22 in | 2.4 GHz | 2399 MHz | 2401 MHz | — | — | — |
Z-Communications, Inc. VCO FREQUENCY 2620 MHZ - 2710 MH | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | -15 dBc | -107 dBc/Hz | 5 dBm | 2 dBm | 1.5 MHz/V | 0.5 in | 0.5 in | -40 °C | 85 °C | 5 VDC | 24 mA | 0.22 in | 2665 MHz | 2620 MHz | 2710 MHz | — | — | — |
Z-Communications, Inc. VCO FREQUENCY 2855 MHZ - 2855 M | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | -13 dBc | -114 dBc/Hz | 6.5 dBm | 3.5 dBm | 0.5 MHz/V | 0.5 in | 0.5 in | -40 °C | 85 °C | 5 VDC | 25 mA | 0.22 in | 2855 MHz | — | — | — | — | — |
Z-Communications, Inc. VCO FREQUENCY 3300 MHZ - 3300 M | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | -20 dBc | -111 dBc/Hz | 3.5 dBm | 3.5 dBm | 1 MHz/V | 0.5 in | 0.5 in | -40 °C | 85 °C | 5 VDC | 24 mA | 0.22 in | 3.3 GHz | — | — | — | — | — |
 Z-Communications, Inc. PLO FREQUENCY 1000MHZ | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.89 in | 2.5 in | -30 °C | 70 °C | 8 V | — | — | — | — | — | 0.67 in | 105 mA | 1 GHz |
Z-Communications, Inc. PLO FREQUENCY 2000MHZ | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.89 in | 2.5 in | -30 °C | 70 °C | 8 V | — | — | — | — | — | 0.67 in | 115 mA | 2 GHz |
