Product families from Yokowo
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Fiber Optic Transceiver Modules | 1 | Active | ||
| Connectors, Interconnects | 1 | Active | ||
| Contacts | 1 | Active | ||
| Connectors, Interconnects | 1 | Active | ||
| Contacts | 2 | Active | ||
| Contacts, Spring Loaded (Pogo Pins), and Pressure | 1 | Active | ||
| Contacts, Spring Loaded (Pogo Pins), and Pressure | 1 | Active |
Parts from Yokowo that are not part of a series
| Part Information | Pricing (lowest) | Operating Temperature (Min) | Operating Temperature (Max) | Contact Type | Minimum Working Height | Maximum Working Height | Plunger Diameter | Mounting Type | Mating Cycles | Recommended Working Height | Current Rating | Current | Wire Termination | Mating Orientation | Positions Per Level | Number of Levels | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Color | Pad Layout Shape | Pad Layout Diameter | Operating Force - Initial | Operating Force - Mid Compression |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

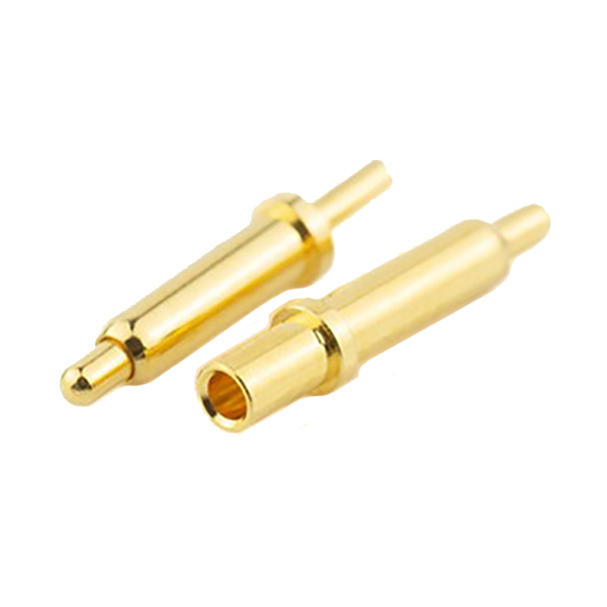

 Yokowo 5A HIGH CURRENT POGO THROUGH HOL | Sign in to see pricing | -40 °C | 85 °C | Plunger, Sleeve | 0.217 in | 0.276 in | 0.035 in | Through Hole | 5000 cycles | 0.236 in | 5 A | — | — | — | — | — | — | — | — | — | — | — | — |
 Yokowo 1 POSITION WIRE TO BOARD TERMINA | Sign in to see pricing | — | — | — | — | — | — | Surface Mount | — | — | — | 4 A | Leaf Spring, Screwless | Horizontal with Board | 1 | 1 | 22 AWG | 24 AWG | White | — | — | — | — |
 Yokowo 1 POSITION WIRE TO BOARD TERMINA | Sign in to see pricing | — | — | — | — | — | — | Surface Mount | — | — | — | 4 A | Leaf Spring, Screwless | Horizontal with Board | 1 | 1 | 22 AWG | 24 AWG | White | — | — | — | — |
 Yokowo 1 POSITION WIRE TO BOARD TERMINA | Sign in to see pricing | — | — | — | — | — | — | Surface Mount | — | — | — | 4 A | Leaf Spring, Screwless | Horizontal with Board | 1 | 1 | 22 AWG | 24 AWG | — | — | — | — | — |
 Yokowo RIGHT ANGLE TYPE SPRING LOADED C | Sign in to see pricing | — | — | Plunger, Sleeve | 0.181 in | 0.236 in | 0.031 in | Surface Mount | 20000 cycles | 0.205 in | 2 A | — | — | — | — | — | — | — | — | Circular | 0.071 in | 40.79 gf | 66.28 gf |
 Yokowo THROUGH HOLE CONNECTOR, 1PIN, TH | Sign in to see pricing | — | — | Plunger, Sleeve | 0.236 in | 0.299 in | 0.055 in | Through Hole | 20000 cycles | 0.256 in | 10 A | — | — | — | — | — | — | — | — | — | — | — | — |
