Yageo Nexensos

Yageo Nexensos is a premier manufacturer of platinum thin-film RTD temperature sensors, delivering high-stability Pt100, Pt500, and Pt1000 elements with exceptional precision and interchangeability.

Series List(8)

Series	Category	# Parts	Status

C416	RTD (Resistance Temperature Detector)	1	Active
HD421	Sensors, Transducers	1	Active
L1020	RTD (Resistance Temperature Detector)	1	Active
M1020	RTD (Resistance Temperature Detector)	1	Active
M222	Sensors, Transducers	1	Active
M422	RTD (Resistance Temperature Detector)	1	Active

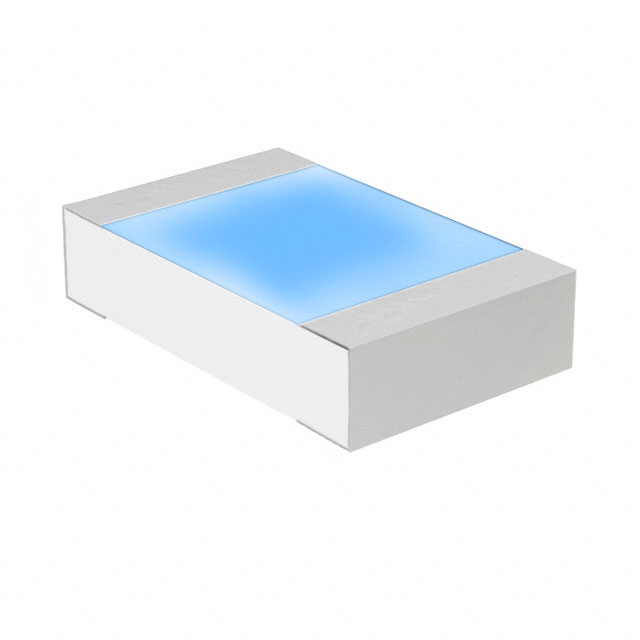

SMD0805V	RTD (Resistance Temperature Detector)	1	Active
SMD1206V	Sensors, Transducers	2	Active

Series	Category	# Parts	Status	Description

Standalone parts(270)

...

Part	Category	Description

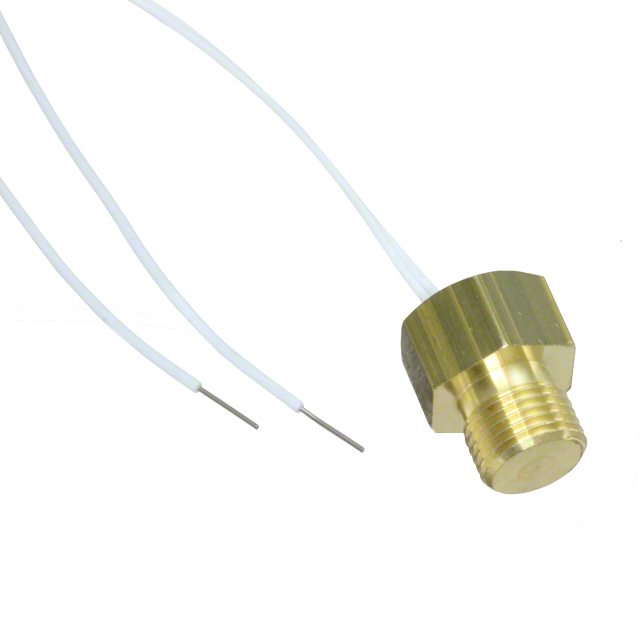

Yageo Nexensos 30010000	Sensors Transducers	SENSOR RTD 1000OHM CYLINDER
Yageo Nexensos 30010007	Sensors Transducers	SENSOR RTD CYLINDER
Yageo Nexensos 30200145	Sensors Transducers	SENSOR RTD RADIAL

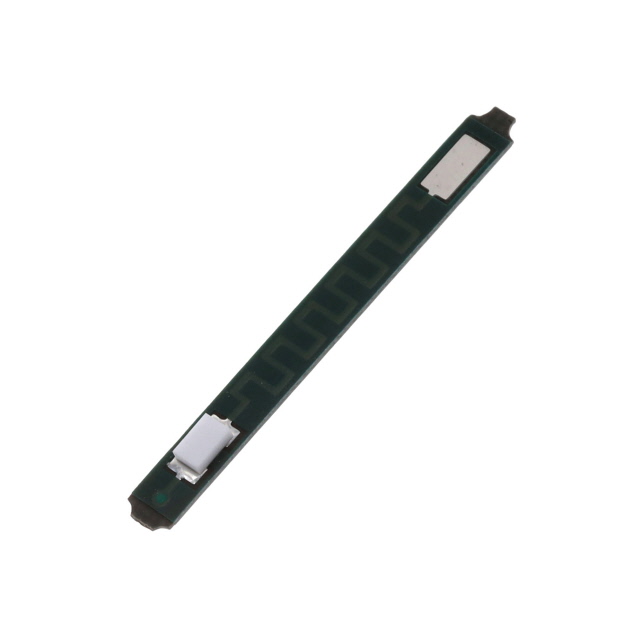

Yageo Nexensos 30201063	Sensors Transducers	SENSOR RTD SMD
Yageo Nexensos 30201067	Sensors Transducers	SENSOR RTD SMD

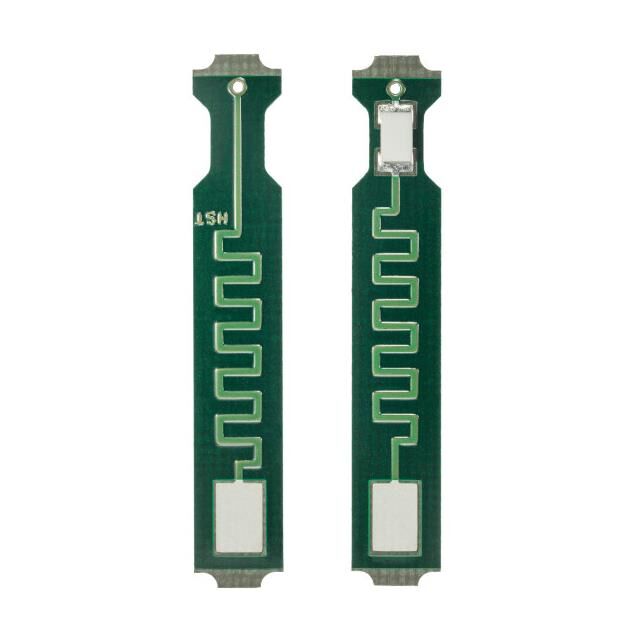

Yageo Nexensos 30201069	Sensors Transducers	SENSOR RTD SMD
Yageo Nexensos 30201075	Sensors Transducers	SENSOR RTD SMD
Yageo Nexensos 30201106	Sensors Transducers	SENSOR RTD SMD
Yageo Nexensos 30201107	Sensors Transducers	SENSOR RTD 500OHM SMD

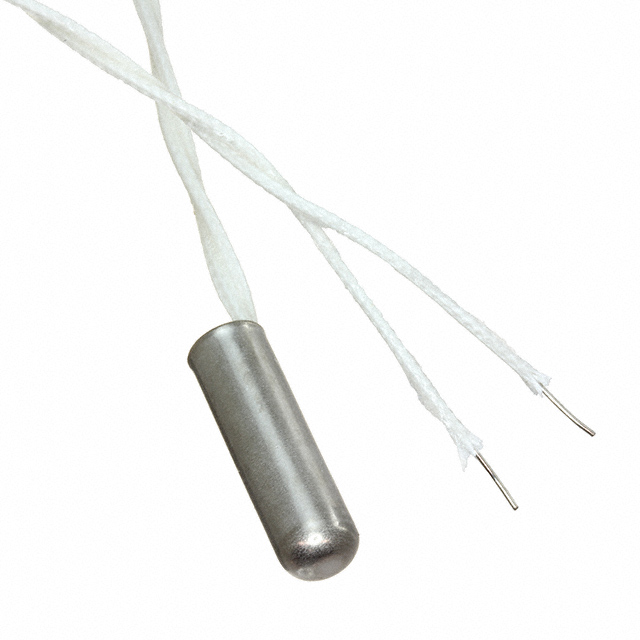

Yageo Nexensos 30500109	Sensors Transducers	SENSOR RTD 100OHM PROBE

Part	Spec A	Spec B	Spec C	Spec D	Description

Yageo Nexensos specializes in the development and manufacturing of high-quality platinum thin-film RTD (Resistance Temperature Detector) sensors. As part of the YAGEO Group, Nexensos delivers temperature sensing solutions characterized by outstanding long-term stability, high precision, and excellent interchangeability across a wide operating temperature range from -196°C to 800°C.

The company's product portfolio includes Pt100, Pt500, and Pt1000 thin-film platinum RTD elements, as well as nickel RTD sensors. These sensors are available in various form factors including SMD packages (0603, 0805, 1206) for automated PCB placement, and leaded configurations for traditional assembly methods.

Thin-film platinum RTD sensors meeting DIN EN 60751 (IEC 60751) standards
Operating temperature range from -196°C to 800°C depending on configuration
SMD packages for automated PCB assembly and leaded options
Excellent long-term stability, fast response times, and high interchangeability

Frequently Asked Questions

What is the difference between Pt100, Pt500, and Pt1000 sensors?: The numbers refer to the nominal resistance at 0°C: Pt100 has 100 ohms, Pt500 has 500 ohms, and Pt1000 has 1000 ohms. Higher resistance values provide better resolution and are less affected by lead wire resistance.
What temperature range do Yageo Nexensos RTD sensors cover?: Yageo Nexensos thin-film platinum RTD sensors can operate across a temperature range from -196°C to 800°C, depending on the specific sensor configuration and application requirements.
Are Yageo Nexensos sensors available in SMD packages?: Yes, Yageo Nexensos offers SMD Pt RTD temperature sensors in industry-standard 0603, 0805, and 1206 packages for fully automated PCB assembly.
What is the advantage of platinum RTD sensors over NTC thermistors?: Platinum RTD sensors offer superior long-term stability, wider operating temperature ranges, better accuracy, linear temperature response, and standardized interchangeability compared to NTC thermistors.
