Product families from Weilinsen
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Weilinsen that are not part of a series
| Part Information | Pricing (lowest) | Size / Dimension Width | Size / Dimension Length | Height | Type | Temperature - Test | Current - Max | Lens Type | CCT (K) Maximum | CCT (K) Minimum | Voltage - Forward (Vf) (Typ) | Color | Features | Viewing Angle | CRI (Color Rendering Index) | Current - Test | Luminous Flux | Lumens/Watt | Configuration | Light Emitting Surface (LES) Length | Light Emitting Surface (LES) Width | Height - Seated (Max) | Flux (Nominal) | Flux (Minimum) | Flux (Maximum) | Mounting Type | CCT (K) Nominal | Thermal Resistance of Package | Package / Case | Wavelength (Minimum) | Wavelength | Wavelength (Maximum) | Wavelength (Nominal) | Luminous Flux (Maximum) | Luminous Flux (Minimum) | Lumens/Watt Maximum | Lumens/Watt Minimum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

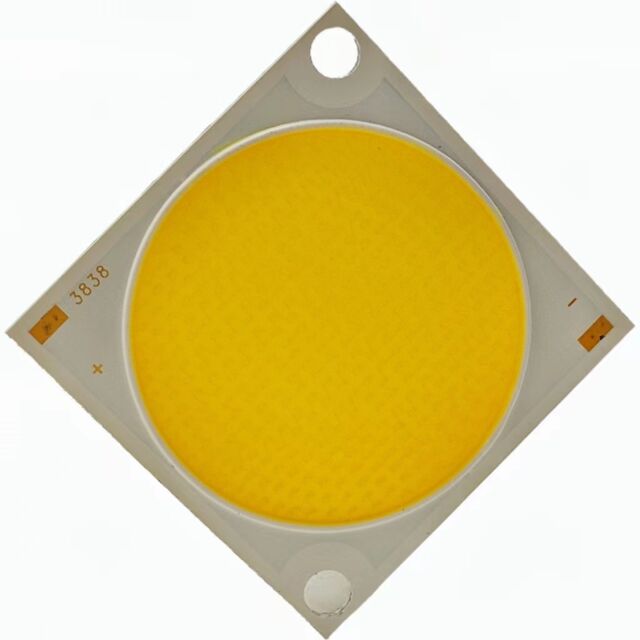

 Weilinsen 30W-300W COB LED LIGHT FOR LED M | Sign in to see pricing | 38 mm | 38 mm | 1.4 mm | Chip On Board (COB) | 80 °C | 4.5 A | Flat | 5000 K | 4000 K | 50 V | Neutral, White | Flat, Lens | 120 ° | 70, 80, 98 | 2.25 A | 150 lm | 150 lm/W | Round | 35.5 mm | 35.5 mm | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

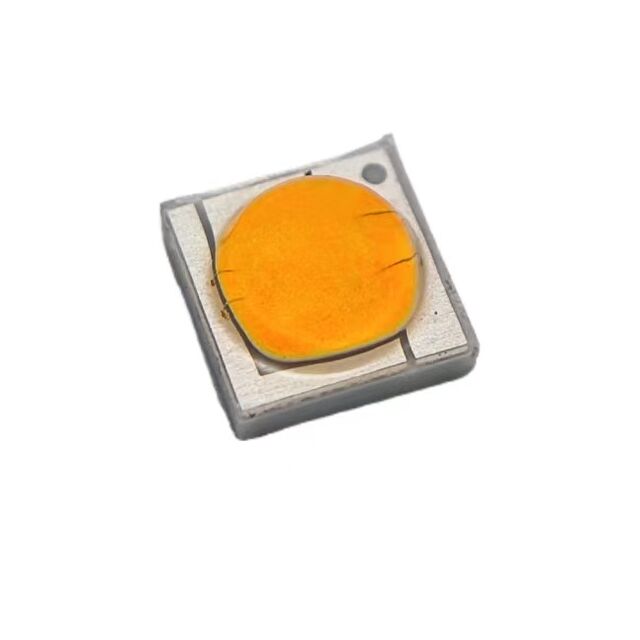

 Weilinsen LED SMD 2500K-3000K 280-320LM | Sign in to see pricing | 0.138 in | 0.138 in | — | — | — | 1.5 A | — | 3000 K | 2500 K | 3.1 V | Warm, White | — | 120 ° | 95 | 1.2 A | — | 81 lm/W | — | — | — | 0.087 in | 300 lm | 280 lm | 320 lm | Surface Mount | 2750 K | 5 °C/W | 2-SMD, No Lead Exposed Pad | — | — | — | — | — | — | — | — |

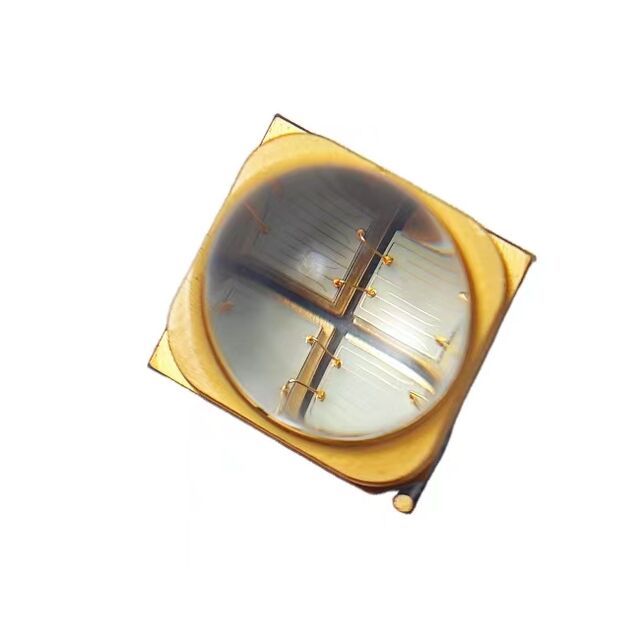

 Weilinsen 620M 660NM SMD LED CHIP 3W 4W 12 | Sign in to see pricing | 0.256 in | 0.256 in | — | — | 25 °C | 1.5 A | — | — | — | 6.5 V | Blue | — | 60 ° | — | 1.4 A | 220 lm | 24 lm/W | — | — | — | 0.191 in | — | — | — | Surface Mount | — | — | 2-SMD, No Lead Exposed Pad | 480 nm | 483 nm | 485 nm | 483 nm | 240 lm | 200 lm | — | — |
 Weilinsen PHOTOGRAPHY SPECIAL LED COB | Sign in to see pricing | — | — | — | Chip On Board (COB) | — | — | — | 6500 K | 1800 K | — | Cool, Warm / White, White | — | — | — | — | — | — | Round | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 160 lm, 160 lm | 130 lm, 130 lm | — | — |

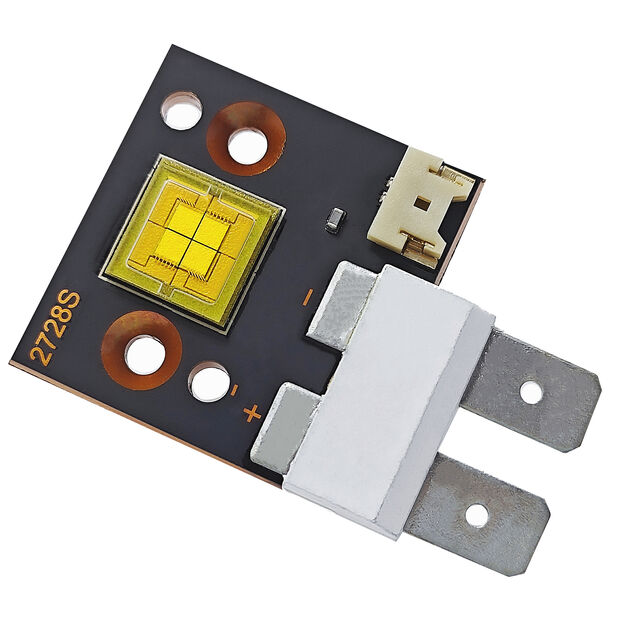

 Weilinsen 120W COB MODEL 12-14V STAGE LAM | Sign in to see pricing | 28 mm | 41.75 mm | 4.6 mm | LED Module | — | 9 A | Flat | 6500 K | 5500 K | 13 V | Cool, White | — | 120 ° | 90 | — | 5000 lm | — | Rectangle | 4.16 mm | 4.16 mm | — | — | — | — | — | 6000 K | — | — | — | — | — | — | 5500 lm | 4500 lm | — | — |

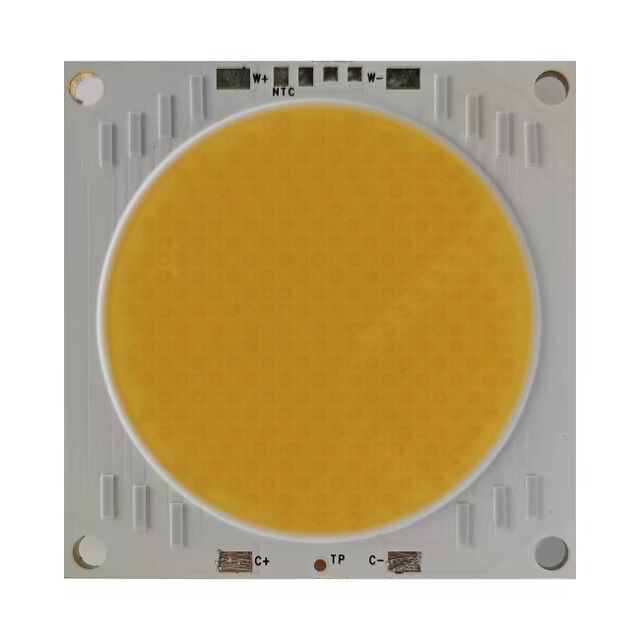

 Weilinsen HIGH POWER TWO COLOR COB LED 54* | Sign in to see pricing | 54 mm | 54 mm | 1.5 mm | Chip On Board (COB) | 40 °C | 6 A | Flat | 5700 K | 3000 K | 47 V | Warm, White | Flat, Lens | 120 ° | 95 | 5.8 A | — | — | Round | 48 mm | 48 mm | — | — | — | — | — | — | — | — | — | — | — | — | 27600 lm, 27600 lm | 24600 lm, 24600 lm | 24800 lm | 21400 lm |
