Parts from Vektrex that are not part of a series
| Part Information | Pricing (lowest) | Accuracy | Mounting Type | Output | Sensor Type | Current - Sensing | For Measuring | Number of Channels | Linearity Tolerance | Package / Case | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Response Time | Current - Sensing (Max) | Current - Sensing (Min) | Minimum Frequency | Maximum Frequency | Polarization | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

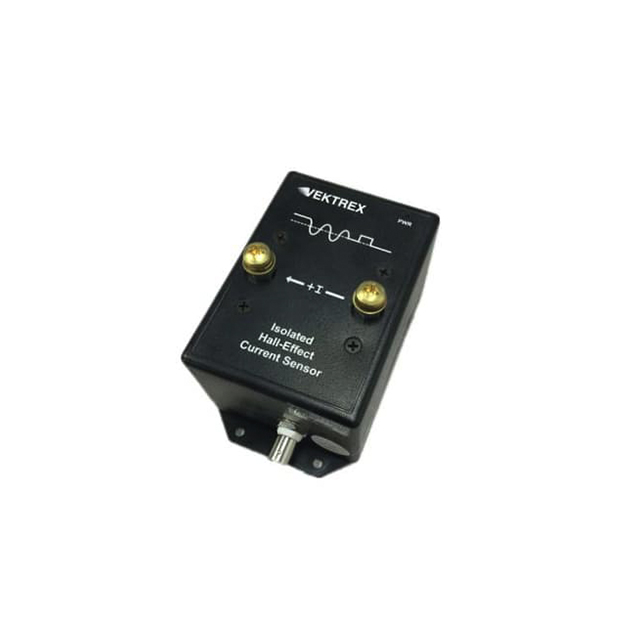

 Vektrex ISOLATED CURRENT SENSOR | Sign in to see pricing | 0.2 %, 0.5 % RH | Chassis Mount, Panel Mount | Ratiometric, Voltage | Differential, Hall Effect | 10 A | AC, DC | 1 | 0.25 % | Module | 9 VDC | 18 V | 500 ns | 10 A | -10 A | DC | 650 kHz | Bidirectional | 50 °C | 20 °C |
Vektrex ISOLATED CURRENT SENSOR | Sign in to see pricing | 0.2 %, 0.5 % RH | Chassis Mount, Panel Mount | Ratiometric, Voltage | Differential, Hall Effect | 160 A | AC, DC | 1 | 0.25 % | Module | 9 VDC | 18 V | 500 ns | 160 A | -160 A | DC | 650 kHz | Bidirectional | 50 °C | 20 °C |
Vektrex ISOLATED CURRENT SENSOR | Sign in to see pricing | 0.2 %, 0.5 % RH | Chassis Mount, Panel Mount | Ratiometric, Voltage | Differential, Hall Effect | 320 A | AC, DC | 1 | 0.25 % | Module | 9 VDC | 18 V | 500 ns | 200 A | -200 A | DC | 650 kHz | Bidirectional | 50 °C | 20 °C |
Vektrex ISOLATED CURRENT SENSOR | Sign in to see pricing | 0.2 %, 0.5 % RH | Chassis Mount, Panel Mount | Ratiometric, Voltage | Differential, Hall Effect | 80 A | AC, DC | 1 | 0.25 % | Module | 9 VDC | 18 V | 500 ns | 80 A | -80 A | DC | 650 kHz | Bidirectional | 50 °C | 20 °C |
