TAEJIN Technology, operating under the HTC Korea brand, specializes in power management integrated circuits including LDO regulators, DC-DC converters, and voltage references for communication, consumer, and computing applications.
Parts that are not part of a series
Company background and product focus
TAEJIN Technology Co., Ltd., known in the market as HTC Korea, was founded in 2000 with the mission of becoming a global leader in the Power Management IC industry. The company leverages highly diversified R&D technology to deliver innovative power solutions to customers worldwide.
TAEJIN's power management product portfolio includes:
HTC Korea products are well-established in the Asian market with distribution networks across China, Japan, Hong Kong, Singapore, Taiwan, and India. The company targets three major sectors: Communication, Consumer, and Computer electronics. All HTC products are manufactured under ISO 9001 and ISO 14001 certified systems and comply with RoHS directives.
© 2026 Zenode. All rights reserved.
Product families from TAEJIN
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Transistors | 1 | Active |
Parts from TAEJIN that are not part of a series
| Part Information | Pricing (lowest) | Input Logic Level - High (Max) | Input Logic Level - High (Min) | Logic Type | Package Width | Package Name | Package Length | Max CL | Max Propagation Delay | Current - Output High | Current - Output Low | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Current - Quiescent (Max) | Mounting Type | Number of Circuits | Number of Inputs | Input Logic Level - Low (Min) | Input Logic Level - Low (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Features | Number of Bits per Element | Function | Number of Elements | Output Type | On-State Resistance (Max) | Voltage - Supply, Single (V+) (Maximum) | Voltage - Supply, Single (V+) (Minimum) | Multiplexer Inputs | Demultiplexer Outputs | Switch Circuit Type | Channel Capacitance (CS(off)) | Channel Capacitance (CD(off)) | -3db Bandwidth | Channel-to-Channel Matching (ΔRon) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAEJIN IC GATE NAND 4CH 2-INP SOP-14 | Sign in to see pricing | 3.2 V | 1.2 V | NAND Gate | 3.9 mm | 14-SOIC, 14-SOP | 0.154 in | 50 pF | 20 ns | 5.2 mA | 5.2 mA | 2 V | 6 V | 2 µA | Surface Mount | 4 | 2 | 0.5 V | 1.8 V | -40 °C | 85 °C | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 TAEJIN IC GATE NAND 4CH 2-INP DIP-14 | Sign in to see pricing | 3.2 V | 1.2 V | NAND Gate | 7.62 mm | 14-DIP | 0.3 in | 50 pF | 20 ns | 5.2 mA | 5.2 mA | 2 V | 6 V | 2 µA | Through Hole | 4 | 2 | 0.5 V | 1.8 V | -40 °C | 85 °C | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 TAEJIN IC INVERTER 6CH 1-INP SOP-14 | Sign in to see pricing | 3.2 V | 1.2 V | Inverter | 3.9 mm | 14-SOIC, 14-SOP | 0.154 in | 50 pF | 14 ns | 5.2 mA | 5.2 mA | 2 V | 6 V | 20 µA | Surface Mount | 6 | 1, 6 | 0.5 V | 1.8 V | -40 °C | 85 °C | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

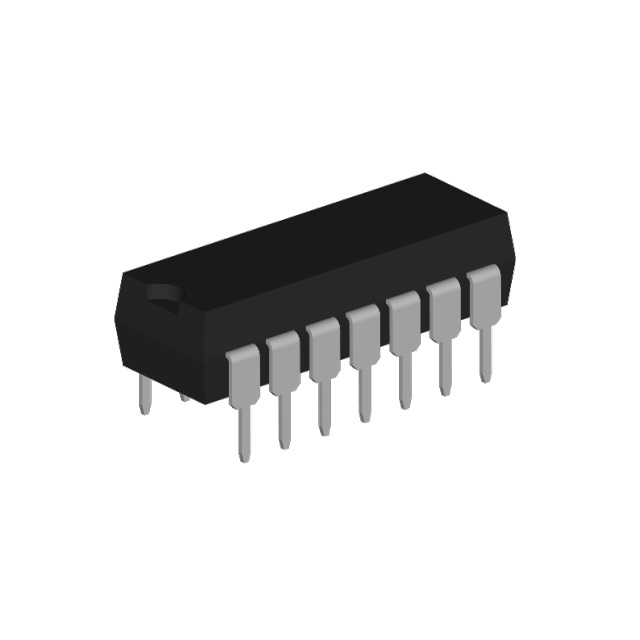

 TAEJIN IC INVERTER 6CH 1-INP DIP-14 | Sign in to see pricing | 3.2 V | 1.2 V | Inverter | 7.62 mm | 14-DIP | 0.3 in | 50 pF | 14 ns | 5.2 mA | 5.2 mA | 2 V | 6 V | 20 µA | Through Hole | 6 | 1, 6 | 0.5 V | 1.8 V | -40 °C | 85 °C | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 TAEJIN IC INVERT SCHMITT 6CH 1IN SOP-14 | Sign in to see pricing | 4.2 V | 1.5 V | Inverter | 3.9 mm | 14-SOIC, 14-SOP | 0.154 in | 50 pF | 21 ns | 5.2 mA | 5.2 mA | 2 V | 6 V | 20 µA | Surface Mount | 6 | 6 | 1 V | 3.2 V | -40 °C | 85 °C | Schmitt Trigger | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
TAEJIN IC INVERT SCHMITT 6CH 1IN DIP-14 | Sign in to see pricing | 4.2 V | 1.5 V | Inverter | 7.62 mm | 14-DIP | 0.3 in | 50 pF | 21 ns | 5.2 mA | 5.2 mA | 2 V | 6 V | 20 µA | Through Hole | 6 | 6 | 1 V | 3.2 V | -40 °C | 85 °C | Schmitt Trigger | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

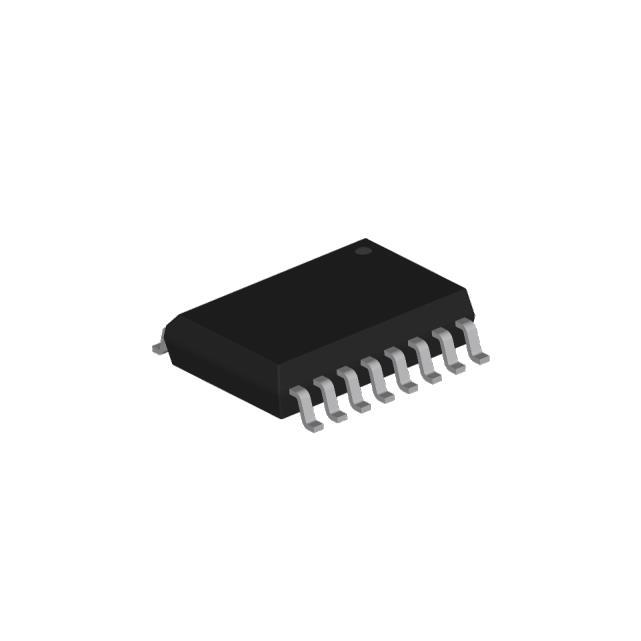

 TAEJIN IC 8-BIT SHIFT REGISTER SOP-16 | Sign in to see pricing | — | — | Shift Register | 3.9 mm | 16-SOIC, 16-SOP | 0.154 in | — | — | — | — | 2 V | 6 V | — | Surface Mount | — | — | — | — | -55 °C | 125 °C | — | 8 bits | Serial, Serial to Parallel | 1 | Tri-State | — | — | — | — | — | — | — | — | — | — |
 TAEJIN IC 8-BIT SHIFT REGISTER DIP-16 | Sign in to see pricing | — | — | Shift Register | 7.62 mm | 16-DIP | 0.3 in | — | — | — | — | 2 V | 6 V | — | Through Hole | — | — | — | — | -55 °C | 125 °C | — | 8 bits | Serial, Serial to Parallel | 1 | Tri-State | — | — | — | — | — | — | — | — | — | — |
TAEJIN IC QUAD BILATERAL SWITCH SOP-14 | Sign in to see pricing | — | — | — | 3.9 mm | 14-SOIC, 14-SOP | 0.154 in | — | — | — | — | — | — | — | Surface Mount | 4 | — | — | — | -55 °C | 125 °C | — | — | — | — | — | 240 Ohms | 18 V | 3 V | 1 | 1 | SPST | 15 pF | 15 pF | 40 MHz | 5 Ohm |
TAEJIN IC QUAD BILATERAL SWITCH DIP-14 | Sign in to see pricing | — | — | — | 7.62 mm | 14-DIP | 0.3 in | — | — | — | — | — | — | — | Through Hole | 4 | — | — | — | -55 °C | 125 °C | — | — | — | — | — | 240 Ohms | 18 V | 3 V | 1 | 1 | SPST | 15 pF | 15 pF | 40 MHz | 5 Ohm |
