| Integrated Circuits (ICs) | 1 | Obsolete | |
STLDC08Step-up controller for LED supply | Integrated Circuits (ICs) | 1 | Active | The STLDC08 LED driver step-up controller is optimized to operate from one or two NiCd/NiMH or alkaline cells. The IC is able to drive an external MOSFET (N-channel) enabling it for use with wide power levels. Hysteretic control eliminates the need for small signal control loop compensation. The IC integrates an FET driver for a precise PWM dimming. STLDC08 comes in a DFN10 (3 x 3 mm) package. |
| Integrated Circuits (ICs) | 1 | Obsolete | |
STLED524Intelligent matrix LED display driver | Display Drivers | 1 | Active | The STLED524 is a 5x24 dot matrix LED display driver. It can drive each dot with a current up to 20 mA. Rows of the matrix are multiplexed. Each LED in a row is driven by a separate low-side current mirror. Current regulators are supplied by an integrated boost DC-DC converter. Its output voltage can be adjusted by the internal register to optimize efficiency according to the type of LEDs (their forward voltage). This reduces current mirror power dissipation and improves overall efficiency. The STLED524 also includes an internal LDO regulator, which can provide a supply voltage for an additional circuitry. Maximum current, provided by each current mirror, is adjusted by RSETresistor. Current of each LED (dot) can be dimmed in 255 steps due to settings of internal registers.
The STLED524 features PWM dimming in 255 steps. Automatic slope function is also supported. Cycle time and slope time can be adjusted for each LED (dot) separately.
Two patterns can be stored in internal registers. The automatic scrolling of the display content is possible in 4 ways. |
| Programmers, Emulators, and Debuggers | 2 | Active | |
STLM20Analog temperature sensor, ultra-low current 2.4 V, high precision | Analog and Digital Output | 1 | Active | The STLM20 is a precision analog output temperature sensor for low current applications where maximizing battery life is important. It operates over a –55 °C to 130 °C (grade 7) or –40 °C to 85 °C (grade 9) temperature range. The power supply operating range is 2.4 V to 5.5 V. The maximum temperature accuracy of the STLM20 is ± 1.5 °C (±0.5 °C typ) at an ambient temperature of 25 °C and VCCof 2.7 V. The temperature error increases linearly and reaches a maximum of ±2.5 °C at the temperature range extremes. The temperature range is affected by the power supply voltage. For the temperature grade 7 device, a power supply voltage of 2.7 V to 5.5 V, the temperature range extremes are +130 °C and –55 °C (decreasing the power supply voltage from 2.7 V to 2.4 V changes the low end of the operating temperature range from –55 °C to –30 °C, while the positive remains at +130 °C).
The STLM20 has a maximum quiescent supply current of 8 μA. Therefore, self-heating is negligible. |

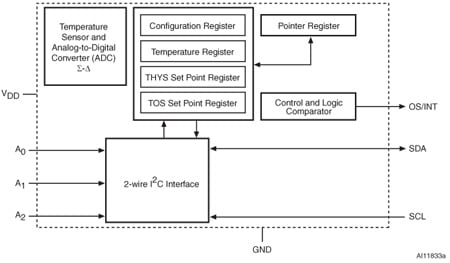

STLM75High-precision digital temperature sensor and thermal watchdog | Analog and Digital Output | 1 | Active | The STLM75 is a high-precision digital CMOS temperature sensor IC with a sigma-delta temperature-to-digital converter and an I2C-compatible serial digital interface. It is targeted for general applications such as personal computers, system thermal management, electronics equipment, and industrial controllers, and is packaged in the industry standard 8-lead TSSOP and SO8 packages.
The device contains a band gap temperature sensor and 9-bit ADC which monitor and digitize the temperature to a resolution up to 0.5 °C. The STLM75 is typically accurate to (±3 °C - max) over the full temperature measurement range of –55 °C to 125 °C with ±2 °C accuracy in the –25 °C to +100 °C range. The STLM75 is pin-for-pin and software compatible with the LM75B.
The STLM75 is specified for operating at supply voltages from 2.7 V to 5.5 V. Operating at 3.3 V, the supply current is typically (125 μA).
The on-board sigma-delta analog-to-digital converter (ADC) converts the measured temperature to a digital value that is calibrated in degrees centigrade; for Fahrenheit applications a lookup table or conversion routine is required.
The STLM75 is factory-calibrated and requires no external components to measure temperature. |
| Power Management (PMIC) | 7 | Active | |
STLQ020200 mA ultra-low quiescent current LDO | Power Management (PMIC) | 5 | Active | The STLQ020 is a 200 mA low-dropout voltage regulator, able to work with an input voltage ranging from 2 V to 5.5 V.
The typical dropout voltage at maximum load is 160 mV.
The ultra-low quiescent current, which is just 0.3 μA at no load, extends battery-life of applications requiring very long standby time.
Even though the device intrinsic consumption is ultra-low, STLQ020 is able to provide fast transient response and good PSRR performance, thanks to its adaptive biasing circuit.
Enable pin puts the STLQ020 in shutdown mode, reducing total current consumption to 5 nA.
The STLQ020 is designed to keep the quiescent current under control and at a low value also during dropout operation, helping to extend even more the operating time of battery- powered devices.
It also includes short-circuit constant-current limiting and thermal protection.
Several small package options are available. |

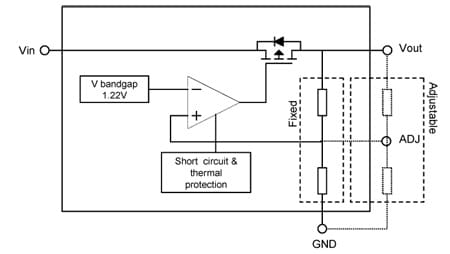

STLQ5050mA, 3µA Supply current low drop linear regulator | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 1 | Active | The STLQ50 is a BiCMOS linear regulator specifically designed for operating in environments where very low power consumption is required.
Its very low quiescent current (3 μA) results in extended battery life, making the device suitable for applications which have very long standby time.
The PMOS pass element allows very good dropout values (200 mV at 25 mA IO and 350 mV at full load) without affecting the consumption characteristics.
Housed in the very small SOT323-5L, it meets space-saving requirements in battery-powered equipment. |
