Product families from Skeleton Technologies GmbH
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Skeleton Technologies GmbH that are not part of a series
| Part Information | Pricing (lowest) | Height - Seated (Max) | Termination | Lifetime | Voltage - Rated | Capacitance | ESR (Equivalent Series Resistance) | Mounting Type | Size / Dimension Diameter | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Size / Dimension Length | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Skeleton Technologies GmbH CAP 300F 2.85V THROUGH HOLE | Sign in to see pricing | 2.421 in | PC Pins | 1500 Hrs | 2.85 V | 300 F | 1.6 mOhm | Through Hole | 1.299 in | -40 °C | 65 °C | Can - Solder Lug, Radial | — | — |
 Skeleton Technologies GmbH CAP 500F 2.85V CHASSIS MOUNT | Sign in to see pricing | 2.492 in | Weld Stud | 1500 Hrs | 2.85 V | 500 F | 0.7 mOhm | Chassis Mount | 1.583 in | -40 °C | 65 °C | Axial, Can | — | — |
 Skeleton Technologies GmbH CAP 750F 2.85V CHASSIS MOUNT | Sign in to see pricing | 3.358 in | Weld Stud | 1500 Hrs | 2.85 V | 750 F | 0.52 mOhm | Chassis Mount | 1.583 in | -40 °C | 65 °C | Axial, Can | — | — |

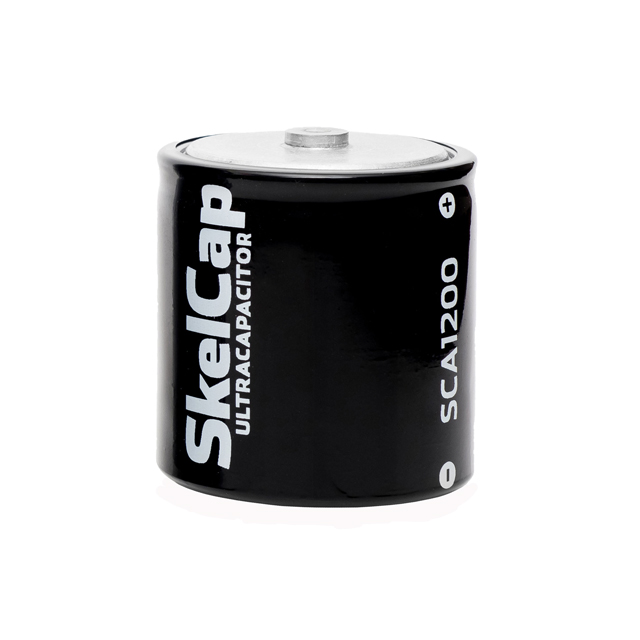

 Skeleton Technologies GmbH CAP 1200F 2.85V CHASSIS MOUNT | Sign in to see pricing | 2.492 in | Weld Stud | 1500 Hrs | 2.85 V | 1200 F | 0.3 mOhm | Chassis Mount | 2.37 in | -40 °C | 65 °C | Axial, Can | — | — |
 Skeleton Technologies GmbH CAP 1800F 2.85V CHASSIS MOUNT | Sign in to see pricing | 3.358 in | Weld Stud | 1500 Hrs | 2.85 V | 1800 F | 0.27 mOhm | Chassis Mount | 2.37 in | -40 °C | 65 °C | Axial, Can | — | — |
 Skeleton Technologies GmbH CAP 3200F 2.85V CHASSIS MOUNT | Sign in to see pricing | 5.445 in | Weld Stud | 1500 Hrs | 2.85 V | 3200 F | 0.18 mOhm | Chassis Mount | 2.37 in | -40 °C | 65 °C | Axial, Can | — | — |

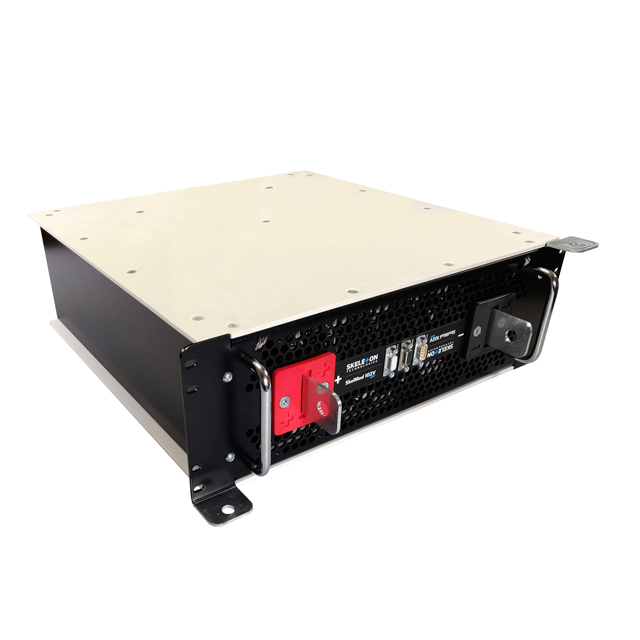

 Skeleton Technologies GmbH CAPACITOR 88F 102V CHASSIS MOUNT | Sign in to see pricing | 0.689 in | Disconnect, Quick Connect | 1500 Hrs | 102 V | 88 F | 7.6 mOhm | Chassis Mount | — | -40 °C | 65 °C | Module | 19.744 in | 18.898 in |

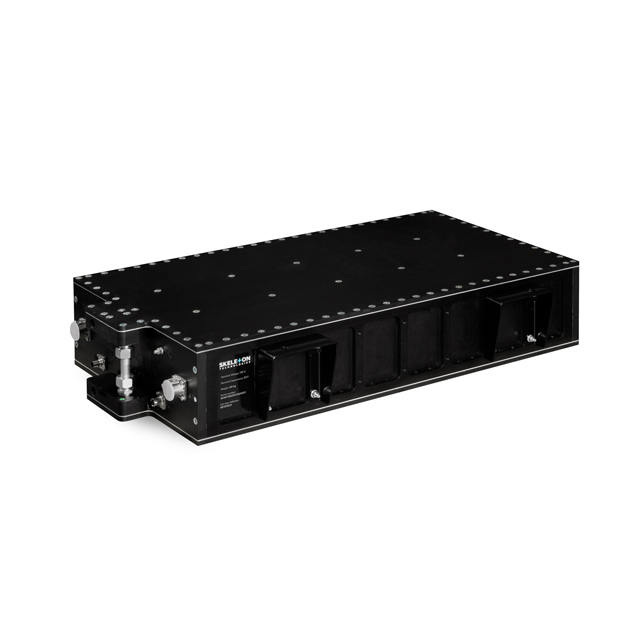

 Skeleton Technologies GmbH CAPACITOR 53F 170V CHASSIS MOUNT | Sign in to see pricing | 14.567 in | — | 1500 Hrs | 170 V | 53 F | 12.7 mOhm | Chassis Mount | — | -40 °C | 65 °C | Module | 36.22 in | 24.803 in |

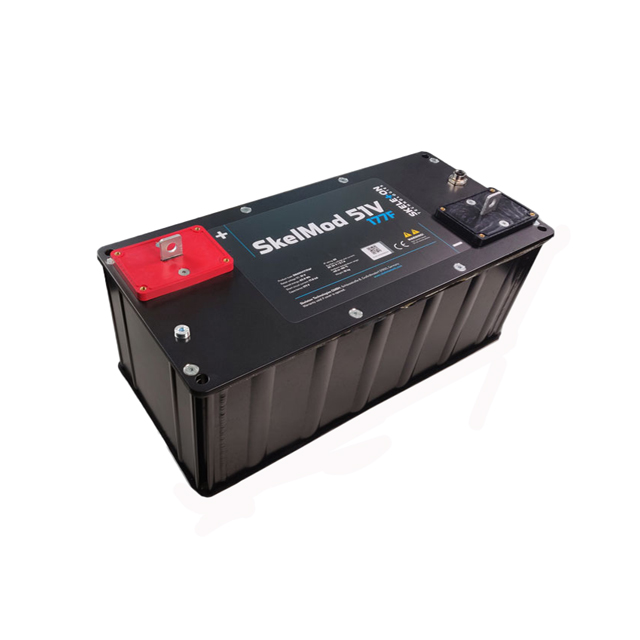

 Skeleton Technologies GmbH CAPACITOR 177F 51V CHASSIS MOUNT | Sign in to see pricing | 7.402 in | Disconnect, Quick Connect | 1500 Hrs | 51 V | 177 F | 4 mOhm | Chassis Mount | — | -40 °C | 65 °C | Module | 16.457 in | 7.638 in |

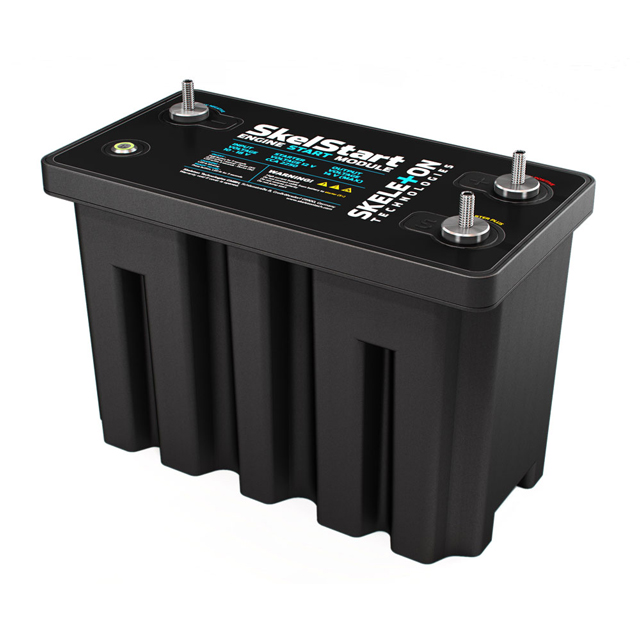

 Skeleton Technologies GmbH CAP 1280F 12V CHASSIS MOUNT | Sign in to see pricing | 9.488 in | — | — | 12 VAC | 1280 F | 0.56 mOhm | Chassis Mount | — | -40 °C | 65 °C | Module | 12.913 in | 6.732 in |
