Product families from Sigma Designs Inc.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Evaluation Boards | 1 | Obsolete |
Parts from Sigma Designs Inc. that are not part of a series
| Part Information | Pricing (lowest) | Current - Receiving | Data Rate (Max) | Sensitivity | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | Serial Interfaces | Modulation | Package / Case | Power - Output | Frequency (Min) | Frequency (Max) | Type | RF Family/Standard | Current - Transmitting | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | GPIO Count | Operating Temperature (Max) | Operating Temperature (Min) | Data Rate | Antenna Type | Frequency | Mounting Type | Utilized IC / Part | For Use With/Related Products | Supplied Contents | Contents | Function | Protocol | Current - Transmitting (Min) | Current - Transmitting (Max) | Memory Size (ROM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

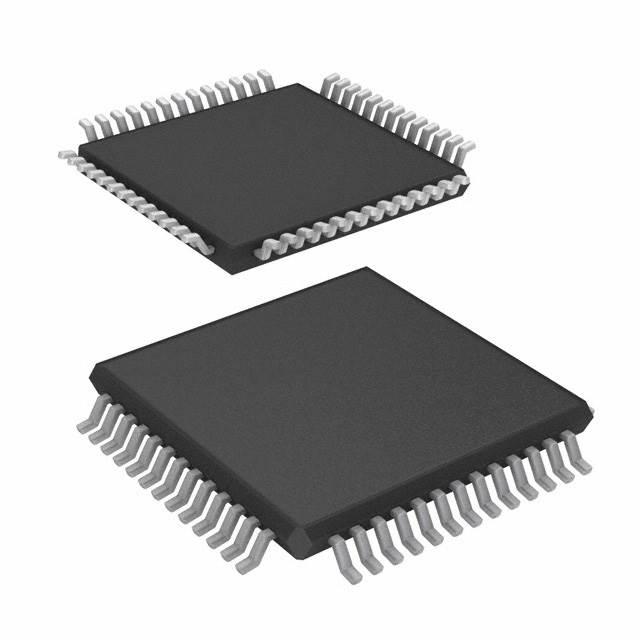

 Sigma Designs Inc. IC RF TXRX+MCU ISM<1GHZ | Sign in to see pricing | 20 mA | 9.6 kBaud | -96 dBm | Flash, SRAM | 2 kB | 32 kB | SPI, UART | FSK | 52-TQFP | 4 dBm | 902 MHz | 928 MHz | TxRx + MCU | General ISM < 1GHz | 34 mA | 2.1 V | 3.6 V | 15 | 85 °C | -35 °C | — | — | — | — | — | — | — | — | — | — | — | — | — |

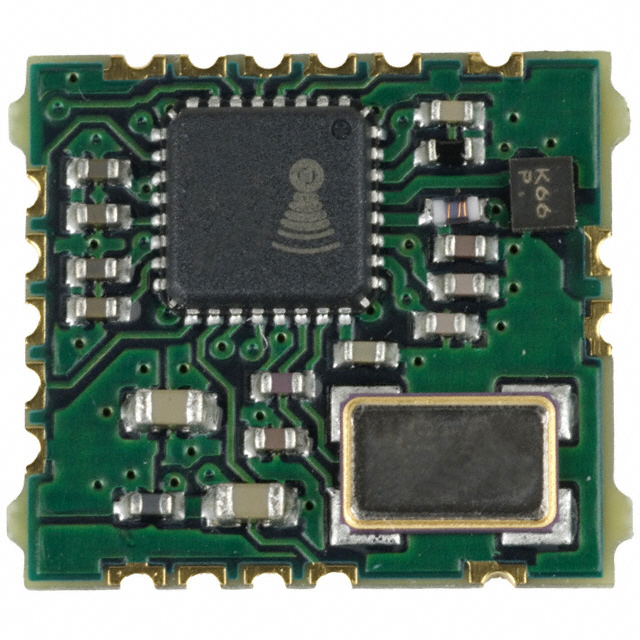

 Sigma Designs Inc. RF TXRX MOD ISM<1GHZSMD | Sign in to see pricing | 23 mA | — | -102 dBm | — | — | — | SPI, UART | FSK | Module | 0 dBm | — | — | — | General ISM < 1GHz | 36 mA | 2.1 V | 3.6 V | — | 85 °C | -15 °C | 40 kbps | Antenna Not Included | 908.42 MHz | Surface Mount | ZW0201 | — | — | — | — | — | — | — | — |

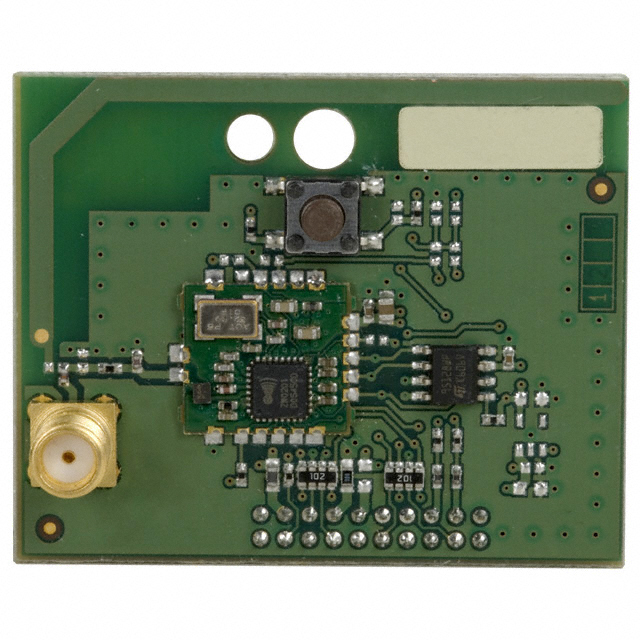

 Sigma Designs Inc. MOD Z-WAVE WHIP ANT PCB ZM2120C | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Transceiver, Z-Wave | — | — | — | — | — | — | — | — | — | 908.42 MHz | — | ZM2120C-EW | ZM2120C-EW (US) | Board(s) | Board | — | — | — | — | — |

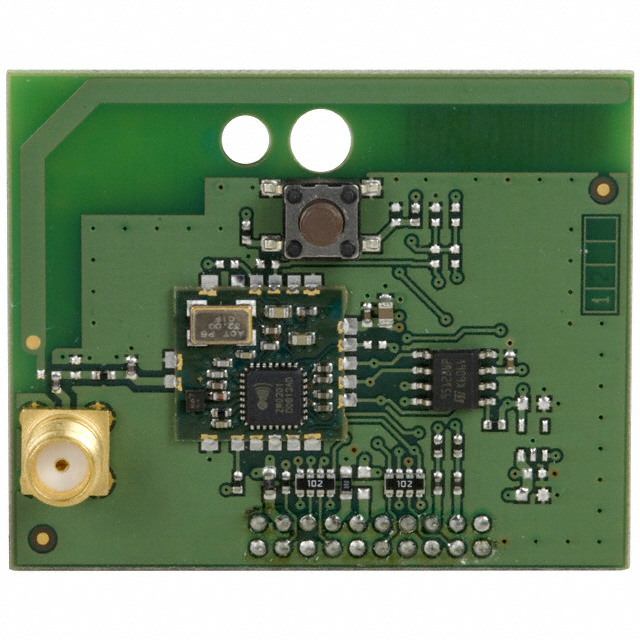

 Sigma Designs Inc. MOD Z-WAVE EU W/ANT | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Transceiver, Z-Wave | — | — | — | — | — | — | — | — | — | 868.42 MHz | — | ZM2120C-EW | ZM2120C-EW (EU) | Board(s) | Board | — | — | — | — | — |

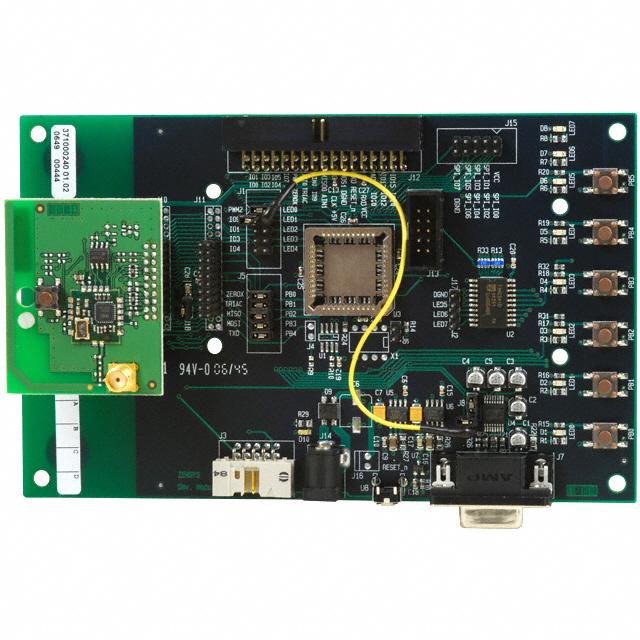

 Sigma Designs Inc. KIT DEV 7069 EU ZW0201 V4.2X | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Transceiver, Z-Wave | — | — | — | — | — | — | — | — | — | — | — | — | Zensys RF Modules | Accessories, Board(s), Cable(s), Power Supply | — | — | — | — | — | — |

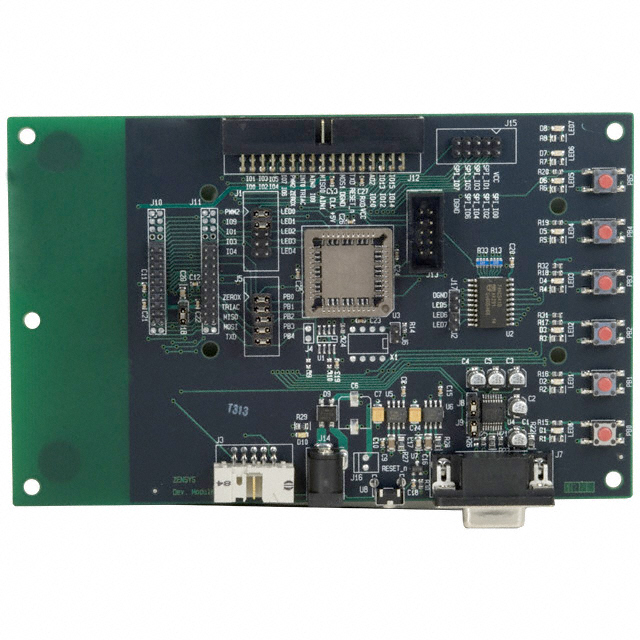

 Sigma Designs Inc. MODULE DEV PCB/MECH ASSY ZW010X | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Transceiver, Z-Wave | — | — | — | — | — | — | — | — | — | — | — | — | — | Board(s) | Board | — | — | — | — | — |

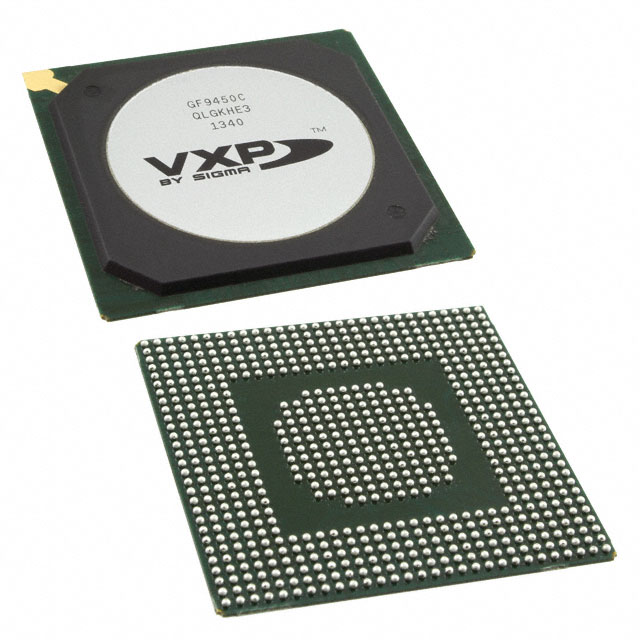

 Sigma Designs Inc. IC VIDEO PROCESSOR 10BIT 701HSBG | Sign in to see pricing | — | — | — | — | — | — | — | — | Module | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Surface Mount | — | — | — | — | Processor | — | — | — | — |

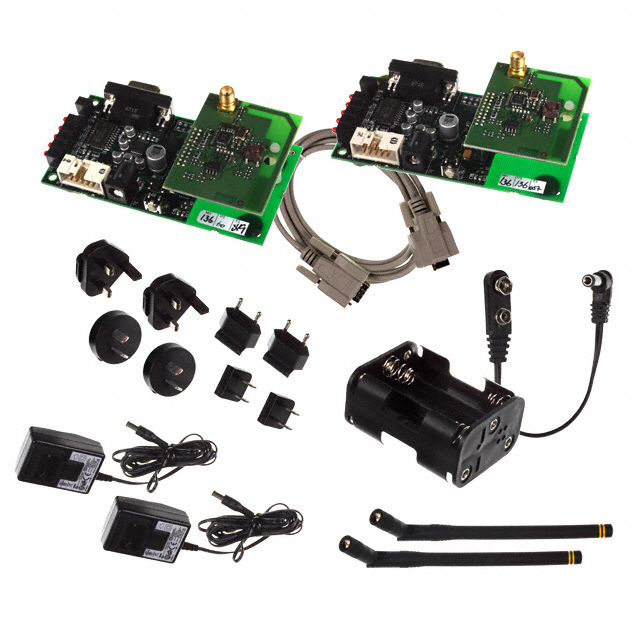

 Sigma Designs Inc. EVAL KIT Z-WAVE US FREQ | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Transceiver, Z-Wave | — | — | — | — | — | — | — | — | — | 908.42 MHz | — | — | — | Accessories, Board(s), Cable(s), Power Supply | — | — | — | — | — | — |

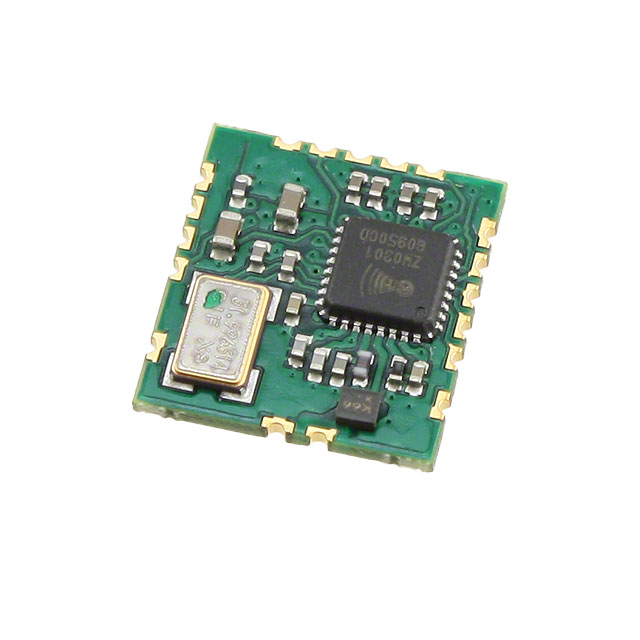

 Sigma Designs Inc. RF TXRX MOD ISM<1GHZSMD | Sign in to see pricing | 23 mA | — | -102 dBm | Flash, SRAM | 2 kB | 32 kB | SPI, UART | FSK | Module | -2 dBm | — | — | — | General ISM < 1GHz | — | 2.1 V | 3.6 V | — | 85 °C | -15 °C | 40 kbps | Antenna Not Included | 868 MHz | Surface Mount | — | — | — | — | — | Z-Wave® | 24 mA | 36 mA | — |

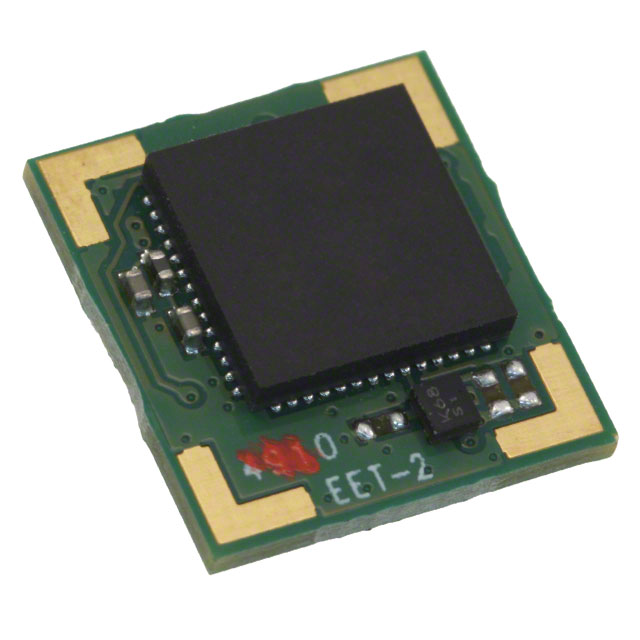

 Sigma Designs Inc. RF TXRX MOD ISM<1GHZ SMD | Sign in to see pricing | 29 mA | — | -99 dBm | Flash, RAM, ROM | 16 kB | 64 B | — | — | Module | — | — | — | — | General ISM < 1GHz | 34 mA | 2.1 V | 3.6 V | — | 85 °C | -30 °C | 100 kbps | — | 951 MHz | Surface Mount | — | — | — | — | — | Z-Wave® | — | — | 64 kB |
