Product families from Sevskiy GmbH
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Sevskiy GmbH that are not part of a series
| Part Information | Pricing (lowest) | Height (Max) | Frequency Group | Frequency Group Minimum (UHF) | Frequency Group Minimum (SHF) | Frequency Group Maximum (UHF) | Frequency (Center/Band) | Frequency (Center/Band) - 2 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 1 | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Maximum | Frequency Range (Band 3) Maximum | Frequency Range (Band 3) Minimum | VSWR | Applications | Termination Type | Gain | Return Loss | Antenna Type | RF Family/Standard | Features | Number of Bands | Power - Max | Mounting Type | Frequency (Center) | Frequency (Band) | VSWR Maximum | VSWR Minimum | Frequency Range (Max) | Frequency Range (Min) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sevskiy GmbH RF ANT 433MHZ/868MHZ/5.8GHZ PCB | Sign in to see pricing | 0.039 in | SHF, UHF | 300 MHz | 4 GHz | 1 GHz | 433.92MHz, 5.5375GHz, 866.5MHz | 866.5 MHz | 5.5375 GHz | 433.92 MHz | 434.79 MHz | 863 MHz | 433.05 MHz | 870 MHz | 5.925 GHz | 5.15 GHz | 1.79, 2.1, 2.62 | IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 | I-PEX MHF1, U.FL | -1 dBi, 0.6 dBi, 3.8 dBi | -11 dB, -9 dB, -7 dB, -11dB, -7dB, -9dB | PCB Trace | General ISM, Lora | 180mm, Cable | 3 | 10 VA | Adhesive, Bracket | — | — | — | — | — | — | — |
 Sevskiy GmbH RF ANT 433MHZ/868MHZ/5.8GHZ PCB | Sign in to see pricing | 0.039 in | SHF, UHF | 300 MHz | 4 GHz | 1 GHz | 433.93MHz, 5.5375GHz, 866.50MHz | — | — | — | 434.8 MHz | 863 MHz | 433 MHz, 433.05 MHz | 870 MHz | 5.925 GHz | 5.15 GHz | 1.93, 2.62, 3.57 | IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 | I-PEX MHF1, U.FL | -1 dBi, 0.6 dBi, 3.8 dBi | -10 dB, -7 dB, -5 dB, -10dB, -5dB, -7dB | PCB Trace | General ISM, Lora | — | 2, 3 | 5 VA, 10 VA | Adhesive, Bracket | 433.9 MHz | 866.5 MHz | — | — | — | — | — |

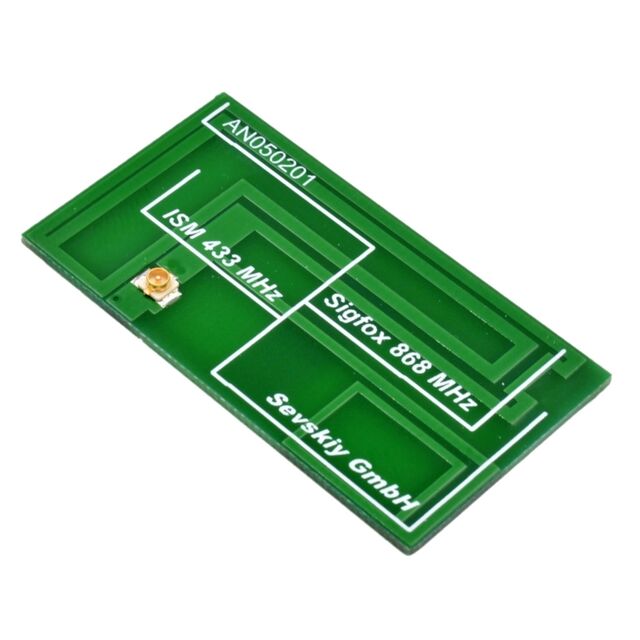

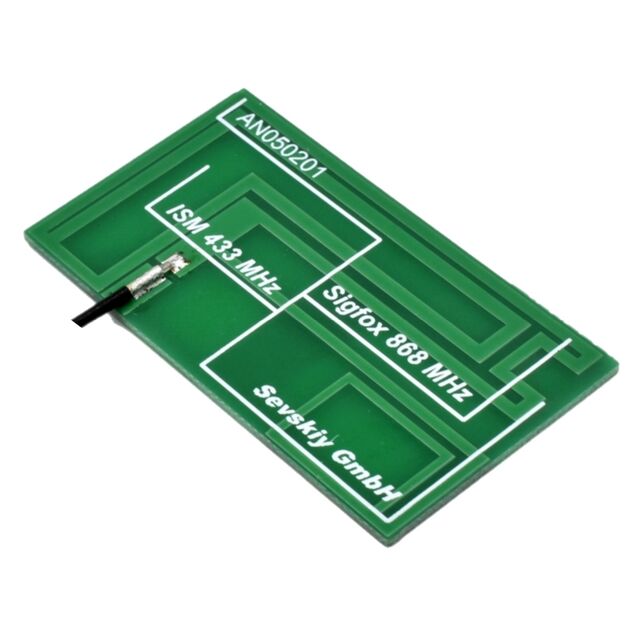

 Sevskiy GmbH RF ANT ISM 433MHZ SRD 868MHZ PCB | Sign in to see pricing | 0.039 in | UHF | 300 MHz | — | 1 GHz | — | — | — | — | 434.8 MHz | 863 MHz | 433 MHz | 870 MHz | — | — | 2.32, 2.62 | IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 | I-PEX MHF1, U.FL | -1 dBi, 0.6 dBi | -12 dB, -10 dB, -8 dB, -7 dB, -10dB, -12dB, -7dB, -8dB | PCB Trace | General ISM, Lora | 175mm, 180mm, Cable | 2 | 5 VA, 10 VA | Adhesive, Bracket | 433.9 MHz | 866.5 MHz | 2.62 | 2.32 | — | — | — |
 Sevskiy GmbH RF ANT SRD860 ISM915 ISM5800 PCB | Sign in to see pricing | 0.039 in | SHF, UHF | 300 MHz | 4 GHz | 1 GHz | 4.7GHz, 5.86GHz, 837MHz | 4.7 GHz | 5.86 GHz | 837 MHz | 928 MHz | 4.4 GHz | 746 MHz | 5 GHz | 6 GHz | 5.725 GHz | 2.1, 3.57 | 5G, IoT, ISM, LP-WAN, RFID, Smart Meters | I-PEX MHF1, U.FL | 0.2 dBi, 1.35 dBi, 2.3 dBi | -9 dB, -5 dB, -5dB, -9dB | PCB Trace | General ISM, WiFi | 200mm, Cable | 3 | 10 VA | Adhesive, Bracket | — | — | — | — | — | — | — |
 Sevskiy GmbH RF ANT 433/868/5800MHZ PCB U.FL. | Sign in to see pricing | 0.039 in | SHF, UHF | 300 MHz | 4 GHz | 1 GHz | 4.7GHz, 5.86GHz, 833MHz | 4.7 GHz | 5.86 GHz | 833 MHz | 928 MHz | 4.4 GHz | 738 MHz | 5 GHz | 6 GHz | 5.725 GHz | 2.1, 3.57 | 5G, IoT, ISM, LP-WAN, LTE, RFID, Smart Meters | I-PEX MHF1, U.FL | 0.2 dBi, 1.35 dBi, 2.3 dBi | -9 dB, -5 dB, -5dB, -9dB | PCB Trace | General ISM | — | 3 | 5 VA, 10 VA | Adhesive, Bracket | — | — | — | — | — | — | — |
 Sevskiy GmbH RF ANT 868MHZ/915MHZ PCB U.FL. | Sign in to see pricing | 0.039 in | UHF | 300 MHz | — | 1 GHz | 875 MHz, 880 MHz | — | — | — | 960 MHz | 1.71 GHz | 800 MHz | 2.17 GHz | 2.7 GHz | 2.4 GHz | 1.79, 1.92 | IoT, ISM, LP-WAN, RFID, Smart Meters | I-PEX MHF1, U.FL | 1.1 dBi, 1.5 dBi | -11 dB, -10 dB | PCB Trace | General ISM, Lora | 175mm, 180mm, Cable | 1 | 5 VA, 10 VA | Adhesive, Bracket | — | — | — | — | 950 MHz | 800 MHz | — |
 Sevskiy GmbH RF ANT SRD860 ISM915 PCB U.FL. | Sign in to see pricing | 0.039 in | UHF | 300 MHz | — | 1 GHz | 875 MHz, 880 MHz | — | — | — | 960 MHz | 1.71 GHz | 800 MHz | 2.17 GHz | 2.7 GHz | 2.4 GHz | 1.79, 1.92 | IoT, ISM, LP-WAN, RFID, Smart Meters | I-PEX MHF1, U.FL | 1.5 dBi, 2 dBi | -11 dB, -10 dB | PCB Trace | General ISM, Lora | 175mm, 180mm, Cable | 1 | 5 VA, 10 VA | Adhesive, Bracket | — | — | — | — | 950 MHz | 800 MHz | — |
 Sevskiy GmbH RF ANT 868/915MHZ SOLDER MOUNT | Sign in to see pricing | 0.031 in | UHF | 300 MHz | — | 1 GHz | 893.5 MHz | — | — | — | — | — | — | — | — | — | 1.92, 1.93 | IoT, ISM, LP-WAN, RFID, Smart Meters | — | 1.6 dBi, 2 dBi | -10 dB | PCB Trace | Cellular, Genral ISM | — | 1 | 5 VA, 10 VA | Solder | — | — | — | — | 924 MHz | 863 MHz | Solder |
 Sevskiy GmbH RF ANT 868MHZ/915MHZ/2.4GHZ PCB | Sign in to see pricing | 0.031 in | UHF | 2 GHz, 300 MHz | — | 1 GHz, 3 GHz | — | — | — | — | 924 MHz | 2.41 GHz | 863 MHz | 2.495 GHz | — | — | 1.92, 2.32, 2.32 | Bluetooth, IoT, ISM, LP-WAN, RFID, Smart Meters, WLAN | — | 1.6 dBi, 2.2 dBi, 2.7 dBi, 3.5 dBi | -10 dB, -8 dB, -10dB, -8dB | PCB Trace | General ISM, WiFi | — | 2 | 5 VA, 10 VA | Solder | 893.5 MHz | 2.4525 GHz | 1.92 | 2.32 | — | — | Solder |

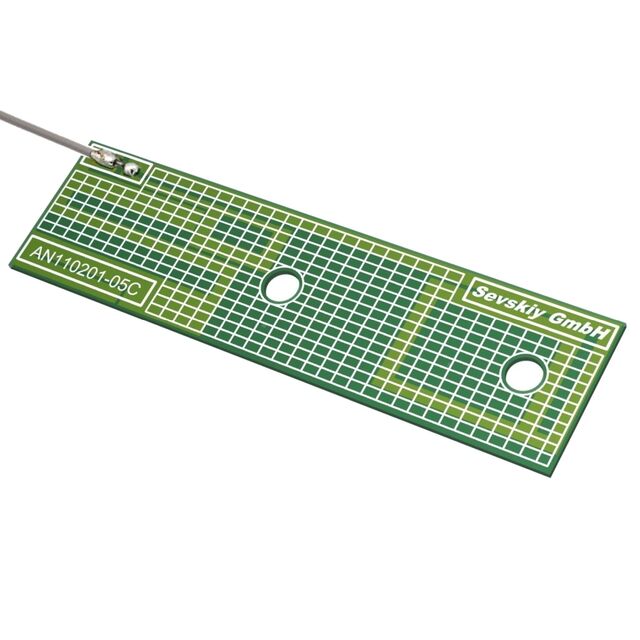

 Sevskiy GmbH RF ANT 824-960, 1710-2170MHZ PCB | Sign in to see pricing | 0.031 in | UHF | 2 GHz, 300 MHz | — | 1 GHz, 3 GHz | — | — | — | — | 960 MHz | 1.71 GHz | 824 MHz | 2.17 GHz | — | — | 1.58, 2.1 | 5G, GSM, IoT, ISM, LTE, RFID, Smart Meters, UMTS | I-PEX MHF1, U.FL | 0.8 dBi, 1.7 dBi | -13 dB, -9 dB, -13dB, -9dB | PCB Trace | Cellular, General ISM | 160mm, Cable | 2 | 10 VA | Adhesive, Screw | 892 MHz | 1.94 GHz | 2.1 | 1.58 | — | — | — |
