Product families from SAMXON
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from SAMXON that are not part of a series
| Part Information | Pricing (lowest) | Applications | Ripple Current | Package / Case | Size / Dimension Diameter | Lifetime | Lead Spacing | ESR (Equivalent Series Resistance) | Operating Temperature (Max) | Operating Temperature (Min) | Height - Seated (Max) | Tolerance | Capacitance | Voltage - Rated | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

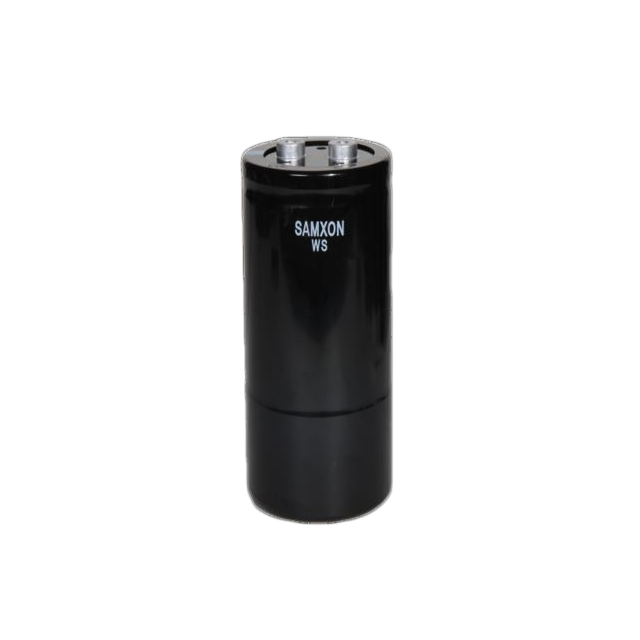

 SAMXON CAP ALUM 4700UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 13.9 A, 16.68 A | Can - Screw Terminals, Radial | 3 in | 5000 Hrs | 1.25 in | 24 mOhm | 105 °C | -25 °C | 5.118 in | 20 % | 4700 µF | 400 V | Polar |
SAMXON CAP ALUM 6800UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 17.2 A, 20.64 A | Can - Screw Terminals, Radial | 3.543 in | 5000 Hrs | 1.25 in | 16 mOhm | 105 °C | -25 °C | 6.102 in | 20 % | 6800 µF | 400 V | Polar |
SAMXON CAP ALUM 8200UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 20.1 A, 24.12 A | Can - Screw Terminals, Radial | 3.543 in | 5000 Hrs | 1.25 in | 14 mOhm | 105 °C | -25 °C | 6.102 in | 20 % | 8200 µF | 400 V | Polar |
SAMXON CAP ALUM 4700UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 10.7 A, 12.84 A | Can - Screw Terminals, Radial | 3 in | 2000 Hrs | 1.25 in | 24 mOhm | 85 °C | -25 °C | 4.528 in | 20 % | 4700 µF | 400 V | Polar |
SAMXON CAP ALUM 5600UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 12.2 A, 14.64 A | Can - Screw Terminals, Radial | 3 in | 2000 Hrs | 1.25 in | 19 mOhm | 85 °C | -25 °C | 5.118 in | 20 % | 5600 µF | 400 V | Polar |
SAMXON CAP ALUM 6800UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 14.6 A, 17.52 A | Can - Screw Terminals, Radial | 3 in | 2000 Hrs | 1.25 in | 16 mOhm | 85 °C | -25 °C | 5.906 in | 20 % | 6800 µF | 400 V | Polar |
SAMXON CAP ALUM 8200UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 16.8 A, 20.16 A | Can - Screw Terminals, Radial | 3.543 in | 2000 Hrs | 1.25 in | 14 mOhm | 85 °C | -25 °C | 5.906 in | 20 % | 8200 µF | 400 V | Polar |
SAMXON CAP ALUM 10000UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 13.4 A, 16.08 A | Can - Screw Terminals, Radial | 3.543 in | 2000 Hrs | 1.25 in | 11 mOhm | 105 °C | -25 °C | 6.299 in | 20 % | 10000 µF | 400 V | Polar |
SAMXON CAP ALUM 4700UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 7 A, 8.4 A | Can - Screw Terminals, Radial | 3 in | 2000 Hrs | 1.25 in | 24 mOhm | 105 °C | -25 °C | 4.528 in | 20 % | 4700 µF | 400 V | Polar |
SAMXON CAP ALUM 4700UF 20% 400V SCREW | Sign in to see pricing | General Purpose | 8 A, 9.6 A | Can - Screw Terminals, Radial | 3 in | 2000 Hrs | 1.25 in | 24 mOhm | 105 °C | -25 °C | 5.118 in | 20 % | 4700 µF | 400 V | Polar |
