Product families from Rincon Power
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Rincon Power that are not part of a series
| Part Information | Pricing (lowest) | Depth Behind Flange | Voltage Rating - DC | Approval Agency | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Termination Style | Switch Function | Ingress Protection Description | Ingress Protection IP Rating | Features | Panel Cutout Shape | Panel Cutout Diameter | Type | Current Rating | Illumination | Circuit | Mounting Type | Contact Form | Contact Rating (Current) | Switching Voltage DC (Max) | Must Release Voltage | Must Operate Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

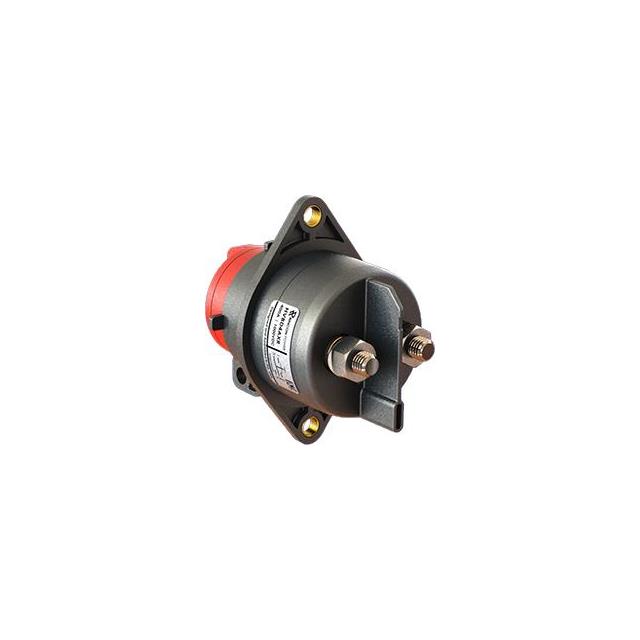

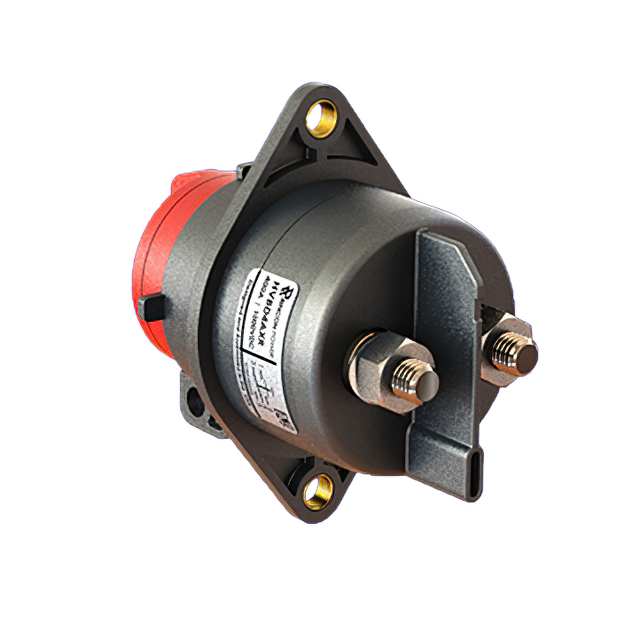

 Rincon Power 300A MANUAL DISCONNECT, 1000VDC, | Sign in to see pricing | 61 mm | 1 kV, 1500 V | CE | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | With SPDT Auxiliary Contacts | Circular | 68.6 mm | Battery Disconnect | 300 A | Non-Illuminated | SPDT, SPST | Panel Mount | — | — | — | — | — | — |
Rincon Power 300A MANUAL DISCONNECT, 1000VDC, | Sign in to see pricing | 61 mm | 1 kV, 1500 V | CE | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | Bezel, Red Knob, Round | Circular | 68.6 mm | Battery Disconnect | 300 A | Non-Illuminated | SPST | Panel Mount | — | — | — | — | — | — |
Rincon Power 400A MANUAL DISCONNECT, 1000VDC, | Sign in to see pricing | 61 mm | 1 kV, 1500 V | CE | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | With SPDT Auxiliary Contacts | Circular | 68.6 mm | Battery Disconnect | 400 A | Non-Illuminated | SPDT, SPST | Panel Mount | — | — | — | — | — | — |
Rincon Power 400A MANUAL DISCONNECT, 1000VDC, | Sign in to see pricing | 61 mm | 1 kV, 1500 V | CE | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | Bezel, Red Knob, Round | Circular | 68.6 mm | Battery Disconnect | 400 A | Non-Illuminated | SPST | Panel Mount | — | — | — | — | — | — |
Rincon Power 600A MANUAL DISCONNECT, 1000VDC, | Sign in to see pricing | 61 mm | 1 kV, 1500 V | CE | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | With SPDT Auxiliary Contacts | Circular | 68.6 mm | Battery Disconnect | 600 A | Non-Illuminated | SPDT, SPST | Panel Mount | — | — | — | — | — | — |
 Rincon Power 600A MANUAL DISCONNECT, 1000VDC, | Sign in to see pricing | 61 mm | 1 kV, 1500 V | CE | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | Bezel, Red Knob, Round | Circular | 68.6 mm | Battery Disconnect | 600 A | Non-Illuminated | SPST | Panel Mount | — | — | — | — | — | — |
 Rincon Power 800A BATT DISCONNECT, 1500VDC, S | Sign in to see pricing | — | 1500 V | — | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | With SPDT Auxiliary Contacts | Circular | 68.6 mm | Battery Disconnect | 800 A | Non-Illuminated | SPDT, SPST | Panel Mount | — | — | — | — | — | — |
Rincon Power 800A BATT DISCONNECT, 1500VDC, S | Sign in to see pricing | — | 1500 V | — | -55 °C | 85 °C | 2 | Stud | On-Off | Dust Tight, Water Resistant, Waterproof | IP69 | Bezel, Red Knob, Round | Circular | 68.6 mm | Battery Disconnect | 800 A | Non-Illuminated | SPST | Panel Mount | — | — | — | — | — | — |

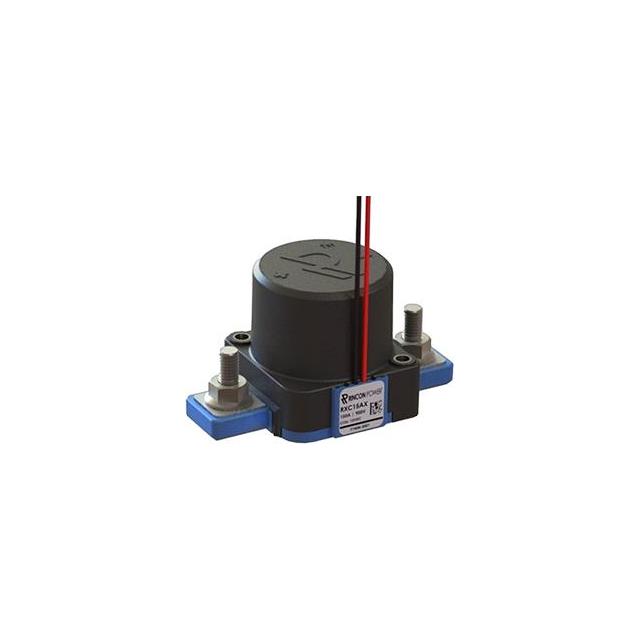

 Rincon Power 100A DC CONTACTOR, 1000V, BOTTOM | Sign in to see pricing | — | — | — | -40 °C | 85 °C | — | Stud, Wire Leads | — | — | — | Auxiliary Contacts, Hermetically, Sealed | — | — | — | — | — | — | Chassis Mount | 1, DM, Form, SPST-NO, X | 100 A | 1000 VDC | 0.8 VDC | 9.6 VDC | 12 VAC |
Rincon Power 100A DC CONTACTOR, 1000V, BOTTOM | Sign in to see pricing | — | — | — | -40 °C | 85 °C | — | Stud, Wire Leads | — | — | — | Hermetically, Sealed | — | — | — | — | — | — | Chassis Mount | 1, DM, Form, SPST-NO, X | 100 A | 1000 VDC | 0.8 VDC | 9.6 VDC | 12 VAC |
