Product families from RFMD
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from RFMD that are not part of a series
| Part Information | Pricing (lowest) | Package / Case | RF Type | Gain | Frequency (Max) | Frequency (Min) | Mounting Type | Test Frequency | Noise Figure | P1dB | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Supply (Max) | Current - Supply (Min) | Package Name | Gain (Max) | Gain (Min) | Package Length | Package Features | Package Width | Test Frequency (Minimum) | Test Frequency (Maximum) | P1dB (Max) | P1dB (Min) | Voltage - Supply | Current - Supply | Noise Figure (Max) | Noise Figure (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RFMD IC RF AMP GP 0HZ-3.5GHZ | Sign in to see pricing | 3-CSMD | General Purpose | 14 dB | 3.5 GHz | 0 Hz | Surface Mount | 2.14 GHz | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 RFMD IC AMP CELLULAR 0HZ-5GHZ SOT89-3 | Sign in to see pricing | TO-243AA | Cellular, GSM, PCS, UMTS | 12.7 dB | 5 GHz | 0 Hz | Surface Mount | 1.95 GHz | 3.8 dB | 14.4 dBm | 3.9 V | 3.1 V | 66 mA | 54 mA | SOT-89-3 | — | — | — | — | — | — | — | — | — | — | — | — | — |

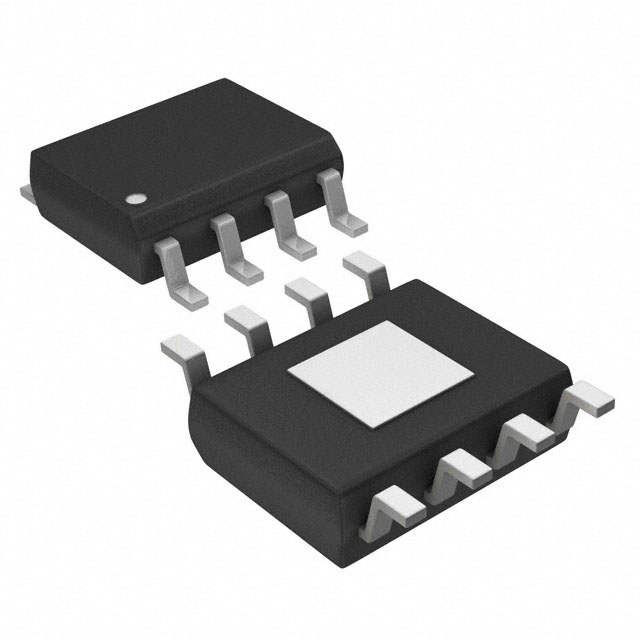

 RFMD IC AMP W-CDMA 1.7-2.2GHZ 8SOIC | Sign in to see pricing | — | PCS, W-CDMA | — | 2.2 GHz | 1.7 GHz | Surface Mount | — | 5.5 dB | 29.5 dBm | 5.25 V | 4.75 V | 425 mA | 360 mA | 8-SOIC | 25 dB | 22.5 dB | 0.154 in | Exposed Pad | 3.9 mm | 1.7 GHz | 2.2 GHz | — | — | — | — | — | — |

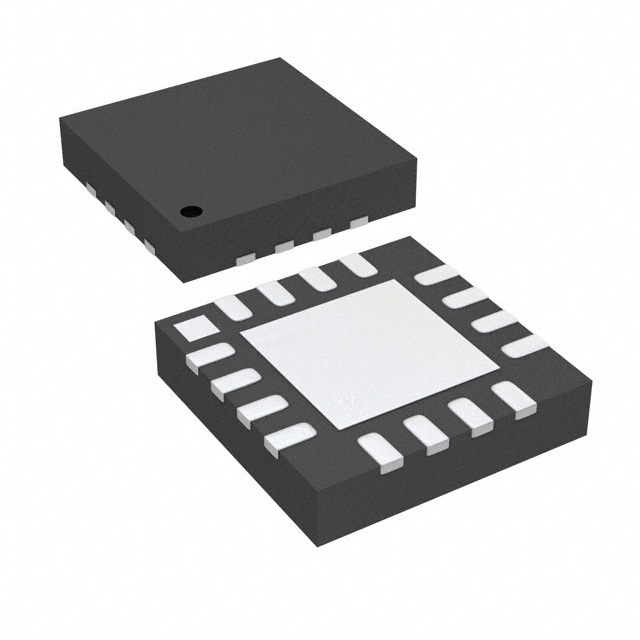

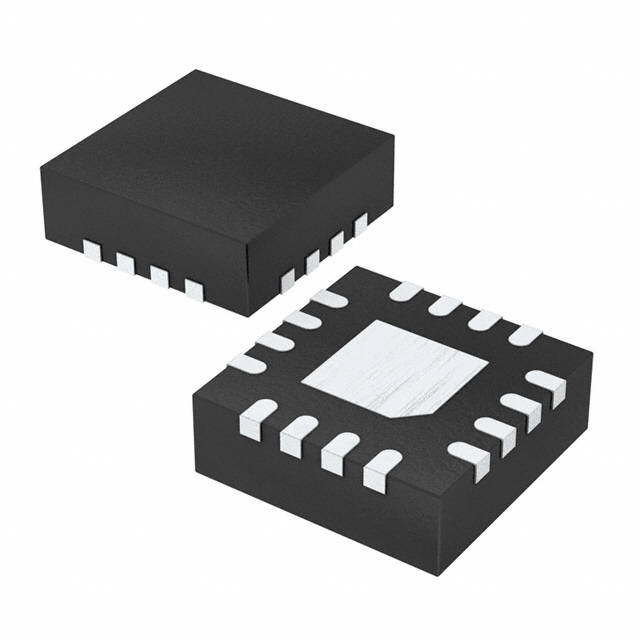

 RFMD IC AMP ISM 4.9GHZ-5.9GHZ 16QFN | Sign in to see pricing | 16-VFQFN Exposed Pad | 802.11a, 802.16, ISM, WiFi, WiMAX, WLAN | — | 5.9 GHz | 4.9 GHz | Surface Mount | 5.875 GHz | 5.7 dB | — | 3.6 V | 3 V | 190 mA | 130 mA | 16-QFN | 28.5 dB | 22.5 dB | 3 mm | — | 3 mm | — | — | 25.5 dBm | 24 dBm | — | — | — | — |
 RFMD IC AMP GP 3.3GHZ-3.8GHZ SOT363 | Sign in to see pricing | 6-TSSOP, SC-88, SOT-363 | General Purpose | 14 dB | 3.8 GHz | 3.3 GHz | Surface Mount | 5.9 GHz | 9 dB | 15 dBm | — | — | — | — | SOT-363 | — | — | — | — | — | — | — | — | — | 5.5 V | 52 mA | — | — |

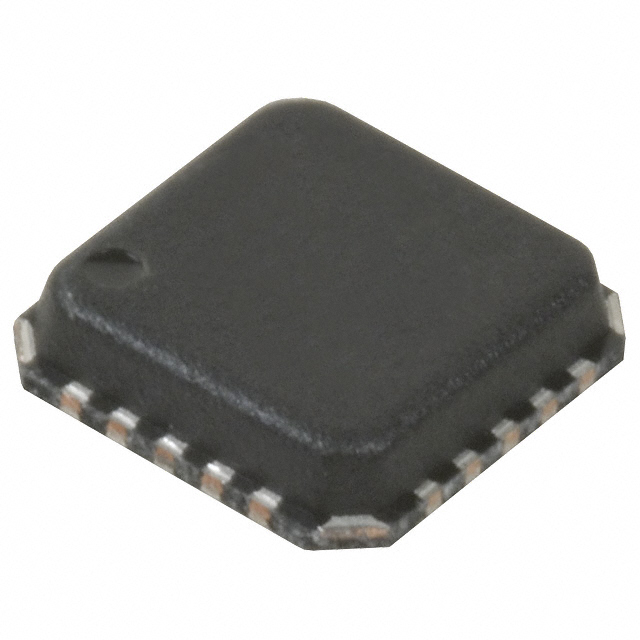

 RFMD IC AMP ISM 1.9GHZ-2.7GHZ 20QFN | Sign in to see pricing | 20-VFQFN Exposed Pad | 802.11b, g, ISM, WiFi, WLAN | — | 2.7 GHz | 1.9 GHz | Surface Mount | 2.5 GHz | 6.1 dB | — | 5 V | 3 V | 345 mA | 255 mA | 20-QFN | 27.5 dB | 23.5 dB | 4 mm | — | 4 mm | — | — | 27.5 dB | 23.5 dB | — | — | — | — |
 RFMD IC AMP 802.16 2.7-3.8GHZ 20QFN | Sign in to see pricing | 20-VFQFN Exposed Pad | 802.16, WiMAX, WLL | — | 3.8 GHz | 2.7 GHz | Surface Mount | 3.6 GHz | 5 dB | — | 6 V | 3 V | 240 mA | 170 mA | 20-QFN | 26 dB | 22 dB | 4 mm | — | 4 mm | — | — | 30 dBm | 28.5 dBm | — | — | — | — |
RFMD IC AMP 802.11A 5.1-5.9GHZ 16QFN | Sign in to see pricing | 16-VFQFN Exposed Pad | 802.11a, 802.16, ISM, WiFi, WiMAX, WLAN | — | 5.9 GHz | 5.1 GHz | Surface Mount | 5.9 GHz | — | — | 5 V | 3 V | — | — | 16-QFN | 17.9 dB | 14.9 dB | 4 mm | — | 4 mm | — | — | 26 dBm | 22.5 dBm | — | — | 9.8 dB | 7.8 dB |
