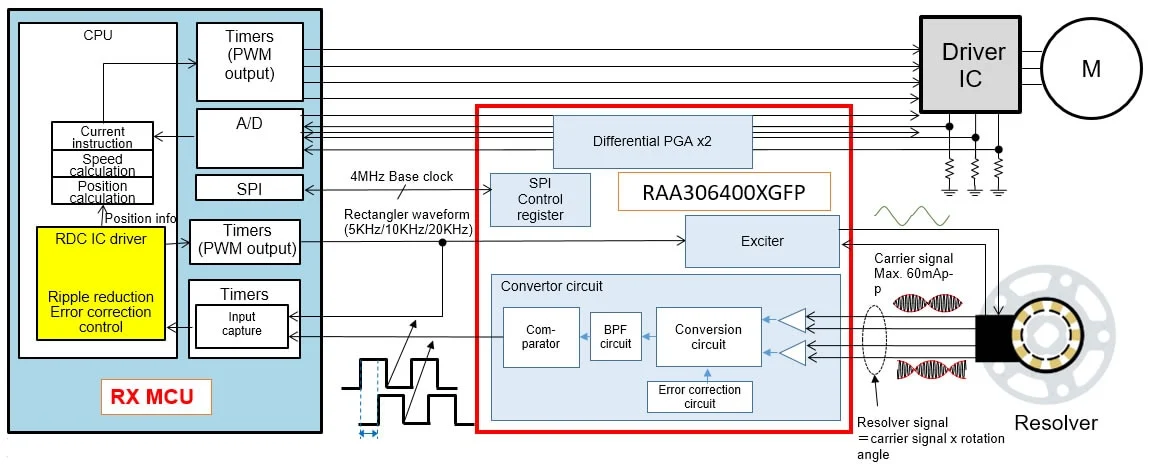

| Interface | 2 | Active | The RAA3064003GFP (hereinafter together referred to as "this IC") is resolver-to-digital converters which are intended for use with single-phase excitation, two-phase output type resolver sensors (angle sensors). The resolver sensor outputs analog signals (electrical angle information) which are proportional to the angle of the mechanical rotation of the resolver. This IC converts these analog signals to digital signals. This IC can be connected to either of two types of resolver sensor. |

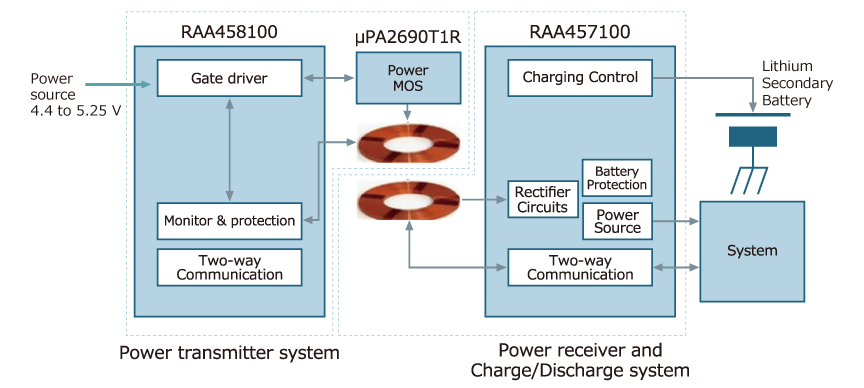

RAA457100GBMWireless Charging System Receiver IC for Low Power Applications | Integrated Circuits (ICs) | 1 | Obsolete | The RAA457100 is a receiver IC for low power wireless charging system. RAA457100 performs battery charging by wireless transmission power and DC power supply to receiver application system from battery. When RAA458100 is used in a transmitter, a wireless charging system with bi-directional communication can be constructed. |
RAA458100GNPWireless Charging System Transmitter IC for Low Power Applications | Power Management - Specialized | 1 | Obsolete | The RAA458100 is wireless charging system transmitter IC for low power applications. When RAA457100 is used in a receiver, a wireless charging system with bi-directional communication can be constructed. |
| Integrated Circuits (ICs) | 1 | Active | |
RAA489800Bidirectional Buck-Boost Voltage Regulator | Voltage Regulators - DC DC Switching Regulators | 4 | Active | The RAA489800 is a bidirectional, buck-boost voltage regulator that provides buck-boost voltage regulation and protection features. The advanced Renesas R3™ Technology provides high light-load efficiency, fast transient response, and seamless DCM/CCM transitions. The RAA489800 takes input power from a wide range of DC power sources up to 23V (such as conventional AC/DC adapters (ADP), USB PD ports, travel ADP) and safely converts it to a regulated voltage up to 21V.
The RAA489800 can also convert a wide range DC power source connected at its output (system side) to a regulated voltage to its input (ADP side). This bidirectional buck-boost regulation feature makes the RAA489800's application very flexible. In addition to 4-switch buck-boost configuration, it can also support 2-switch Buck mode operation. The RAA489800 includes various system operation functions such as the Forward mode enable pin, Reverse mode enable pin, programmable soft-start time, and adjustable forward and reverse VOUT. It also has forward and reverse power-good indicators. The protection functionalities include OCP, OVP, UVP, and OTP.
The RAA489800 has serial communication through SMBus/I2C that allows programming of many critical parameters to deliver a customized solution. These programming parameters include, but are not limited to: output current limit, input current limit, and output voltage setting. |
| RF and Wireless | 1 | Active | |
RAA7884QRQuad, ±16.5kV ESD Protected, 3.0V to 5.5V, RS-485/RS-422 Receiver | Drivers, Receivers, Transceivers | 1 | Active | The RAA7884QR is a ±16.5kV IEC61000-4-2 ESD protected, 3.0V to 5.5V powered, quad receiver designed for balanced communication using the RS-485 and RS-422 standards. With low input currents (±200µA), the receiver presents a 1/4 unit load to the RS-485 bus and allows up to 128 receivers on the bus.
The RAA7884QR is a high data rate receiver that operates at data rates up to 80Mbps. With an 8ns maximum propagation delay skew (tolerance), it ensures excellent part-to-part matching. The receiver outputs are tri-statable and include a hot plug feature to keep them disabled during power-up and power-down. |
| PMIC | 2 | Active | |
| Evaluation Boards | 1 | Active | |
| Power Management (PMIC) | 1 | Active | |
