Product families from Ranatec
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Ranatec that are not part of a series
| Part Information | Pricing (lowest) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Isolation | Test Frequency | Insertion Loss | Impedance | Operating Temperature (Min) | Operating Temperature (Max) | RF Type | Frequency Range (Max) | Frequency Range (Min) | Circuit | Type | Height | Filter Order | ESD Protection | Voltage - Rated | Size / Dimension Width | Size / Dimension Length | Number of Channels | Attenuation Value | Mounting Type | Height - Overall | Ventilation | Quantity | Width - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ranatec IC RF SWITCH SP4T 6GHZ | Sign in to see pricing | 45 V | 5 V | 40 dB | 3 GHz | 2.2 dB | 50 Ohm | 0 °C | 50 °C | Cellular | 6 GHz | 0 Hz | SP4T | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Ranatec LAN 1 GBPS FEEDTHRU FILTER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Band Pass | 0.87 in | 2 | Yes | 50 V | 1.417 in | 2.795 in | 8 | 50 dB | Bolt Mount | — | — | — | — | — |
 Ranatec DUAL USB 2.0 480 MBPS FEEDTHRU F | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Band Pass | 0.87 in | 2 | Yes | — | 1.417 in | 2.795 in | 4 | 50 dB | Bolt Mount | — | — | — | — | — |
 Ranatec SINGLE USB 2.0 480 MBPS FEEDTHRU | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Band Pass | 0.87 in | 2 | Yes | — | 1.417 in | 2.795 in | 4 | 50 dB | Bolt Mount | — | — | — | — | — |
 Ranatec USB 3.0 FEEDTHRU FILTER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Band Pass | 0.87 in | 2 | Yes | — | 1.417 in | 2.795 in | 9 | 50 dB | Bolt Mount | — | — | — | — | — |
 Ranatec HDMI FEEDTHRU FILTER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Band Pass | 0.87 in | 2 | Yes | — | 1.417 in | 2.795 in | 19 | 50 dB | Bolt Mount | — | — | — | — | — |
 Ranatec LAN 10 GBPS FEEDTHRU FILTER | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | Band Pass | 0.87 in | 2 | Yes | — | 1.417 in | 2.795 in | 8 | 50 dB | Bolt Mount | — | — | — | — | — |

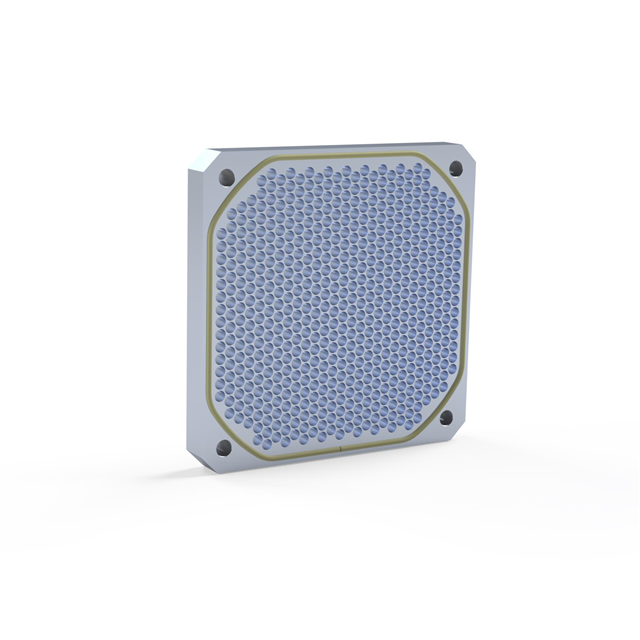

 Ranatec EMI VENT PANEL 85X85MM | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | 1-Piece, Shield | — | — | — | — | — | — | — | — | — | 0.354 in | Vent Holes in Pattern | 1 Piece | 3.346 in | 3.346 in |
 Ranatec EMI VENT PANEL 130X130MM | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | 1-Piece, Shield | — | — | — | — | — | — | — | — | — | 0.354 in | Vent Holes in Pattern | 1 Piece | 5.118 in | 5.118 in |
