Product families from Premier Magnetics
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Premier Magnetics that are not part of a series
| Part Information | Pricing (lowest) | Mounting Type | Inductance | Height - Seated (Max) | Size / Dimension Length | Size / Dimension Width | Operating Temperature (Max) | Operating Temperature (Min) | Turns Ratio - Primary (Receiver) | Turns Ratio Mode | Turns Ratio - Secondary (Receiver) | Turns Ratio - Secondary (Transmitter) | Turns Ratio - Primary (Transmitter) | Transformer Type | Turns Ratio - Secondary | Turns Ratio - Primary | Type | Frequency | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

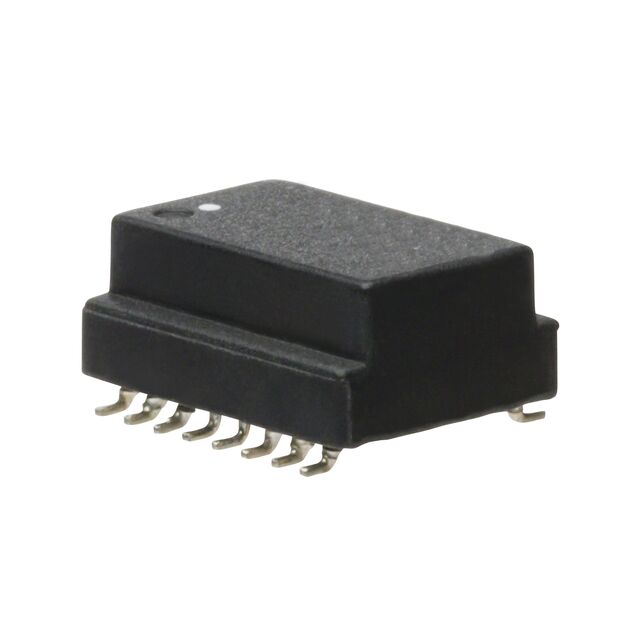

 Premier Magnetics 10/100 BASE-T, ISOLATION XFMR | Sign in to see pricing | Surface Mount | 150 µH | 0.225 in | 0.472 in | 0.285 in | 70 °C | 0 °C | 1 CT | Receiver, Transmitter | 1 | 1 CT | 1 CT | LAN 10/100 Base-T | — | — | — | — | — | — |
Premier Magnetics 10/100 BASE-T, ISOLATION XFMR | Sign in to see pricing | Surface Mount | 180 µH | 0.225 in | 0.472 in | 0.285 in | 85 °C | -40 °C | 1 CT | Receiver, Transmitter | 1 | 1 CT | 1 CT | LAN 10/100 Base-T | — | — | — | — | — | — |
 Premier Magnetics 10/00 BASE-T, ISOLATION XFMR | Sign in to see pricing | Surface Mount | 150 µH | 0.225 in | 0.472 in | 0.285 in | 85 °C | -40 °C | 1 CT | Receiver, Transmitter | 1 | 1 CT | 1 CT | LAN 10/100 Base-T | — | — | — | — | — | — |
 Premier Magnetics QUAD PORT SMD, ISOLATION XFMR | Sign in to see pricing | Surface Mount | 1200 µH | 0.25 in | 1.125 in | 0.48 in | 70 °C | 0 °C | 1 CT | Receiver, Transmitter | 1 | 1.15 CT | 1 CT | E1 (Quad), T1 | — | — | — | — | — | — |
Premier Magnetics 10/100 BASE-TX ISOLATION XFMR | Sign in to see pricing | Surface Mount | 350 µH | 0.406 in | 0.961 in | 0.6 in | 70 °C | 0 °C | 1 CT | Receiver, Transmitter | 1 | 1 CT | 1 CT | LAN 10/100 Base-TX | — | — | — | — | — | — |
Premier Magnetics 5KV ISOLATION XFMR | Sign in to see pricing | Surface Mount | 350 µH | 0.406 in | 0.961 in | 0.6 in | 70 °C | 0 °C | 1 CT | Receiver, Transmitter | 1 | 1 CT | 1 CT | LAN 10/100 Base-TX | — | — | — | — | — | — |
Premier Magnetics 5KV ISOLATION XFMR | Sign in to see pricing | Surface Mount | 350 µH | 0.406 in | 0.961 in | 0.6 in | 85 °C | -40 °C | 1 CT | Receiver, Transmitter | 1 | 1 CT | 1 CT | LAN 10/100 Base-TX | — | — | — | — | — | — |
 Premier Magnetics XFMR,ISO WITH FILTR,1000 BASE T | Sign in to see pricing | Surface Mount | 350 µH | 0.148 in | 0.594 in | 0.28 in | 85 °C | -40 °C | — | — | — | — | — | LAN 1000 Base-T | 1 | 1 | — | — | — | — |
Premier Magnetics XFMR,ISO WITH FILTR,1000 BASE T | Sign in to see pricing | Surface Mount | 350 µH | 0.4 in | 0.732 in | 0.512 in | 85 °C | -40 °C | — | — | — | — | — | LAN 1000 Base-T | 1 | 1 | — | — | — | — |
 Premier Magnetics XFMR,PUSH-PULL,8-PIN SMD | Sign in to see pricing | Surface Mount | — | 0.248 in | 0.421 in | 0.319 in | 85 °C | -40 °C | — | — | — | — | — | — | — | — | For DC/DC Converters | 125 kHz | 1500 Vrns | Flyback Converters |
