Product families from Pelonis Technologies
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Pelonis Technologies that are not part of a series
| Part Information | Pricing (lowest) | Width | Ingress Protection IP Rating | Ingress Protection Description | Approval Agency | Size / Dimension Shape | Size / Dimension Height | Size / Dimension Length | RPM | Noise | Fan Type | Features | Termination Leads Count | Termination Type | Termination | Bearing Type | Voltage - Rated | Weight | Static Pressure | Operating Temperature (Max) | Operating Temperature (Min) | Air Flow | Size / Dimension Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pelonis Technologies FAN MICRO FAN 13X5MM 3VDC WIRE | Sign in to see pricing | 5 mm | IP58 | Dust Protected, Waterproof | CE | Square | 13 mm | 13 mm | 16000 RPM | 15.7 dB | Micro Fan | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 3 VDC | 0.002 lb | 0.078 in H2O | 140 °F | 14 °F | 0.16 CFM | — |
 Pelonis Technologies FAN MICRO FAN 15X4MM 5VDC WIRE | Sign in to see pricing | 4 mm | IP58 | Dust Protected, Waterproof | CE | Square | 15 mm | 15 mm | 16000 RPM | 35 dB | Micro Fan | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.003 lb | 0.11 in H2O | 140 °F | 14 °F | 0.4 CFM | — |

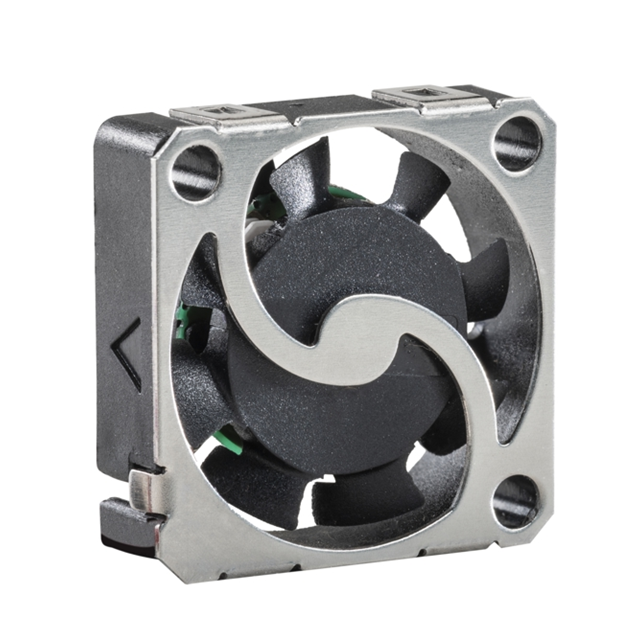

 Pelonis Technologies FAN MICRO FAN 15X4MM 3VDC WIRE | Sign in to see pricing | 4 mm | IP58 | Dust Protected, Waterproof | CE | Square | 15 mm | 15 mm | 7500 RPM | 14.6 dB | Micro Fan | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 3 VDC | 0.003 lb | 0.027 in H2O | 140 °F | 14 °F | 0.12 CFM | — |
 Pelonis Technologies FAN MICRO FAN 17X8MM 5VDC WIRE | Sign in to see pricing | 8 mm | IP58 | Dust Protected, Waterproof | CE | Square | 17 mm | 17 mm | 16000 RPM | 18 dB | Micro Fan | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.005 lb | 0.027 in H2O | 140 °F | 14 °F | 0.95 CFM | — |

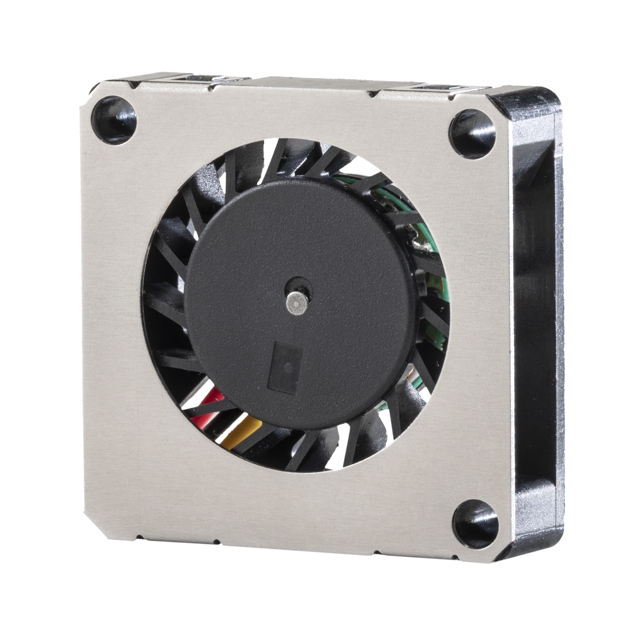

 Pelonis Technologies FAN MICRO FAN 18X4MM 5VDC WIRE | Sign in to see pricing | 4 mm | IP58 | Dust Protected, Waterproof | CE | Square | 18 mm | 18 mm | 13000 RPM | 35 dB | Micro Fan | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.004 lb | 0.138 in H2O | 140 °F | 14 °F | 0.9 CFM | — |

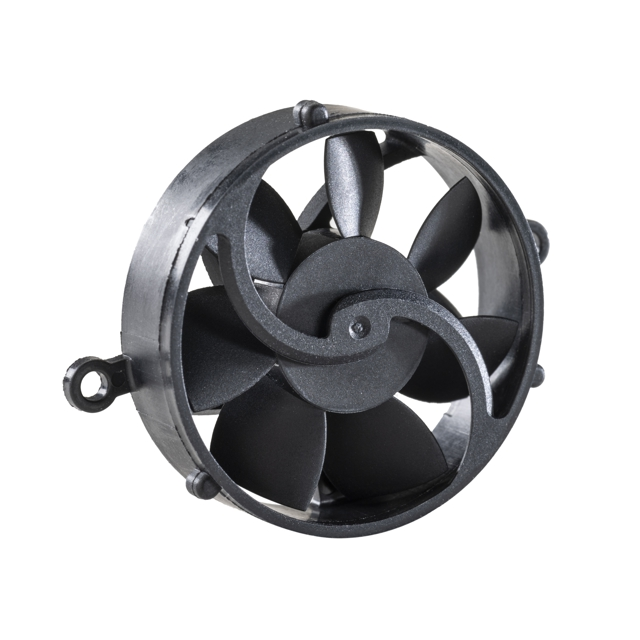

 Pelonis Technologies FAN MICRO FAN 30X8MM 5VDC WIRE | Sign in to see pricing | 8 mm | IP58 | Dust Protected, Waterproof | CE | Round | — | — | 6200 RPM | 22 dB | Micro Fan | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.008 lb | 0.103 in H2O | 140 °F | 14 °F | 2.6 CFM | 30 mm |

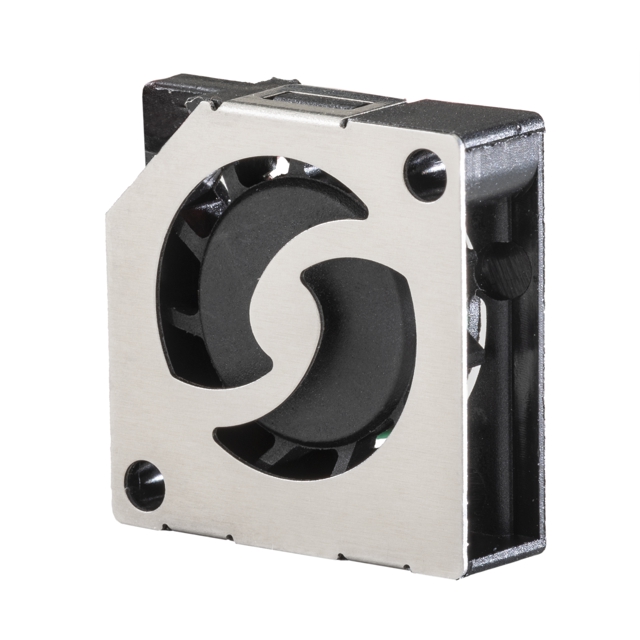

 Pelonis Technologies FAN MICR BLOWER 15X4MM 3VDC WIRE | Sign in to see pricing | 4 mm | IP58 | Dust Protected, Waterproof | CE | Square | 15 mm | 15 mm | 14500 RPM | 18.6 dB | Micro Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 3 VDC | 0.003 lb | 0.097 in H2O | 140 °F | 14 °F | 0.19 CFM | — |
 Pelonis Technologies FAN MICR BLOWER 18X4MM 5VDC WIRE | Sign in to see pricing | 4 mm | IP58 | Dust Protected, Waterproof | CE | Square | 18 mm | 18 mm | 11000 RPM | 35 dB | Micro Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.004 lb | 0.203 in H2O | 140 °F | 14 °F | 0.2 CFM | — |

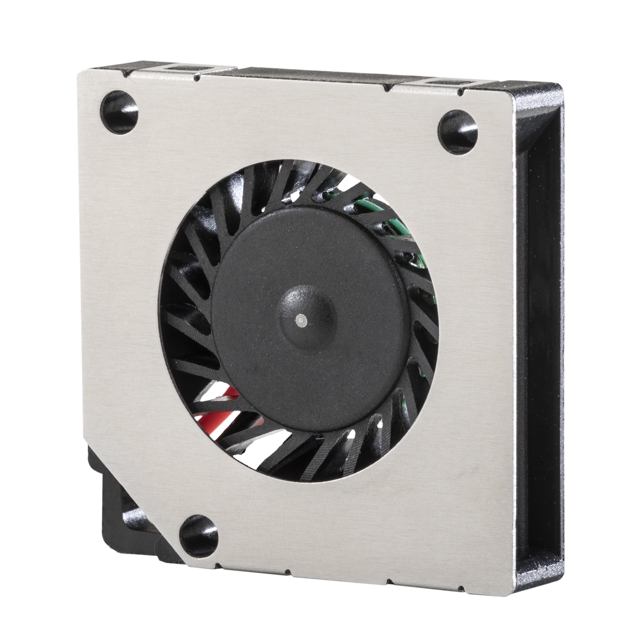

 Pelonis Technologies FAN MICR BLOWER 20X4MM 5VDC WIRE | Sign in to see pricing | 4 mm | IP58 | Dust Protected, Waterproof | CE | Square | 20 mm | 20 mm | 11500 RPM | 19.6 dB | Micro Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.005 lb | 0.235 in H2O | 140 °F | 14 °F | 0.38 CFM | — |
 Pelonis Technologies FAN MICR BLOWER 26X8MM 5VDC WIRE | Sign in to see pricing | 8 mm | IP58 | Dust Protected, Waterproof | CE | Rectangular | 20 mm | 26 mm | 9000 RPM | 35 dB | Micro Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 2 leads | Wire Leads | 2 Wire Leads | Axial Groove | 5 VAC | 0.007 lb | 0.186 in H2O | 140 °F | 14 °F | 0.57 CFM | — |
