74AVC8T245BQ-Q1008-bit dual supply translating transceiver with configurable voltage translation; 3-state | Logic | 1 | Active | The 74AVC8T245-Q100 is an 8-bit, dual supply transceiver that enables bidirectional level translation. It features two 8-bit input-output ports (An and Bn), a direction control input (DIR), an output enable input (OE) and dual supply pins (VCC(A)and VCC(B)). Both VCC(A)and VCC(B)can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins An,OEand DIR are referenced to VCC(A)and pins Bn are referenced to VCC(B). A HIGH on DIR allows transmission from An to Bn and a LOW on DIR allows transmission from Bn to An. The output enable input (OE) can be used to disable the outputs so the buses are effectively isolated. |

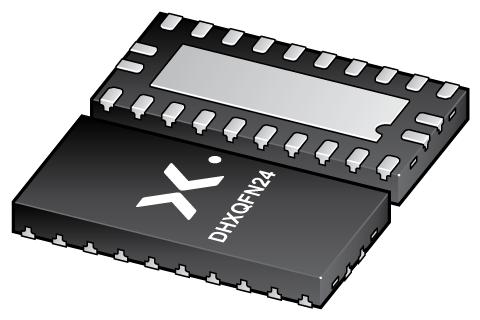

74AVC8T245BZ8-bit dual supply translating transceiver with configurable voltage translation; 3-state | Buffers, Drivers, Receivers, Transceivers | 1 | Active | The 74AVC8T245 is an 8-bit, dual supply transceiver that enables bidirectional level translation. It features two 8-bit input-output ports (An and Bn), a direction control input (DIR), a output enable input (OE) and dual supply pins (VCC(A)and VCC(B)). Both VCC(A)and VCC(B)can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins An,OEand DIR are referenced to VCC(A)and pins Bn are referenced to VCC(B). A HIGH on DIR allows transmission from An to Bn and a LOW on DIR allows transmission from Bn to An. The output enable input (OE) can be used to disable the outputs so the buses are effectively isolated. |

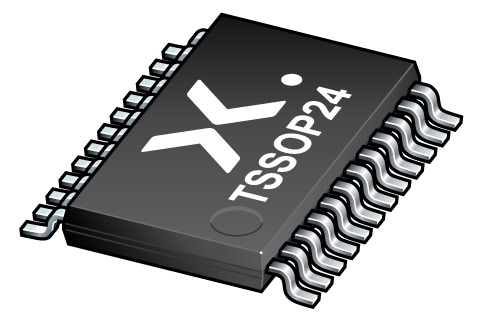

74AVC8T245PW8-bit dual supply translating transceiver with configurable voltage translation; 3-state | Logic | 1 | Active | The 74AVC8T245 is an 8-bit, dual supply transceiver that enables bidirectional level translation. It features two 8-bit input-output ports (An and Bn), a direction control input (DIR), a output enable input (OE) and dual supply pins (VCC(A)and VCC(B)). Both VCC(A)and VCC(B)can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins An,OEand DIR are referenced to VCC(A)and pins Bn are referenced to VCC(B). A HIGH on DIR allows transmission from An to Bn and a LOW on DIR allows transmission from Bn to An. The output enable input (OE) can be used to disable the outputs so the buses are effectively isolated. |
74AVC8T245PW-Q1008-bit dual supply translating transceiver with configurable voltage translation; 3-state | Logic | 1 | Active | The 74AVC8T245-Q100 is an 8-bit, dual supply transceiver that enables bidirectional level translation. It features two 8-bit input-output ports (An and Bn), a direction control input (DIR), an output enable input (OE) and dual supply pins (VCC(A)and VCC(B)). Both VCC(A)and VCC(B)can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins An,OEand DIR are referenced to VCC(A)and pins Bn are referenced to VCC(B). A HIGH on DIR allows transmission from An to Bn and a LOW on DIR allows transmission from Bn to An. The output enable input (OE) can be used to disable the outputs so the buses are effectively isolated. |
| Integrated Circuits (ICs) | 1 | Active | The 74AVC9112 is a 1-to-4 fan-out buffer suitable for use in clock distribution. It has a data input (A), four data outputs (Yn) and an output enable input (OE). VCCcan be supplied at any voltage between 0.8 V and 3.6 V. A HIGH onOEcauses all outputs to be pulled LOW via pull-down resistors, a LOW onOEdisconnects the pull-down resistors and enables all outputs. |
| Integrated Circuits (ICs) | 1 | Active | The 74AVC9112 is a 1-to-4 fan-out buffer suitable for use in clock distribution. It has a data input (A), four data outputs (Yn) and an output enable input (OE). VCCcan be supplied at any voltage between 0.8 V and 3.6 V. A HIGH onOEcauses all outputs to be pulled LOW via pull-down resistors, a LOW onOEdisconnects the pull-down resistors and enables all outputs. |
| Integrated Circuits (ICs) | 1 | Obsolete | |
| Buffers, Drivers, Receivers, Transceivers | 3 | Obsolete | |
74AVCH16T245DGG16-bit dual supply translating transceiver with configurable voltage translation; 3-state | Integrated Circuits (ICs) | 1 | Active | The 74AVCH16T245 is a 16-bit transceiver with bidirectional level voltage translation and 3-state outputs. The device can be used as two 8-bit transceivers or as a 16-bit transceiver. It has dual supplies (VCC(A)and VCC(B)) for voltage translation and four 8-bit input-output ports (nAn, nBn) each with its own output enable (nOE) and send/receive (nDIR) input for direction control. VCC(A)and VCC(B)can be independently supplied at any voltage between 0.8 V and 3.6 V making the device suitable for low voltage translation between any of the following voltages: 0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V. A HIGH on nDIR selects transmission from nAn to nBn while a LOW on nDIR selects transmission from nBn to nAn. A HIGH on nOEcauses the outputs to assume a high-impedance OFF-state |
74AVCH1T45GMDual-supply voltage level translator/transceiver; 3-state | Integrated Circuits (ICs) | 1 | Active | The74AVCH1T45is a single bit, dual supply transceiver that enables bidirectional level translation. The 74AVCH1T45 has active bus hold circuitry which is provided to hold unused or floating data inputs at a valid logic level. This feature eliminates the need for external pull-up or pull-down resistors.The device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing potentially damaging backflow current through the device when it is powered down. |
