Product families from mightyZAP
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from mightyZAP that are not part of a series
| Part Information | Pricing (lowest) | Features | Load Force (Static) | Voltage - Rated | Type | Load Force (Dynamic) | Duty Cycle | Speed | Ingress Protection IP Rating | Ingress Protection Description | Approval Agency | Accuracy | Stroke Length (Linear) | Gear Reduction Ratio | Construction | Operating Temperature (Max) | Operating Temperature (Min) | Motor Type | Termination Style | Feedback Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

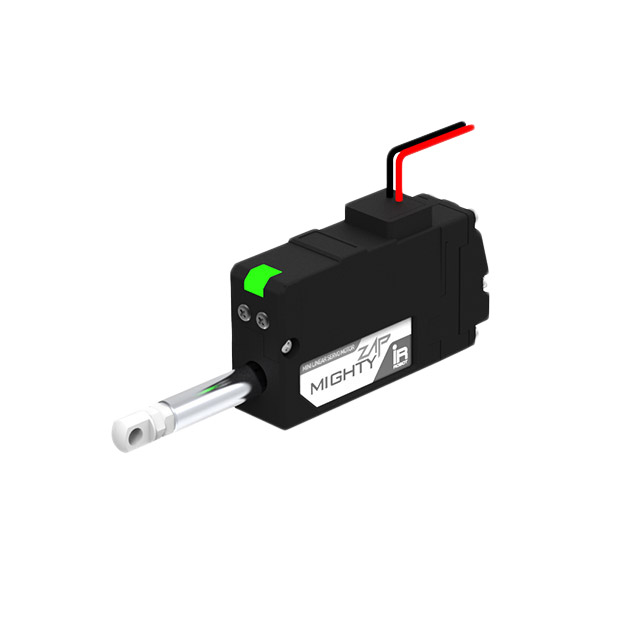

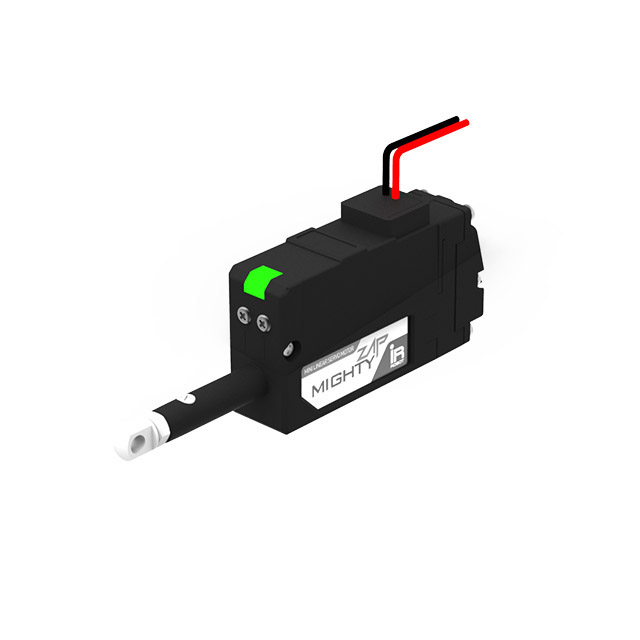

 mightyZAP MICRO LINEAR ACTUATOR LIMIT S/W | Sign in to see pricing | Limit Switches | 5.4 lbf | 12 VAC | Linear Actuator | 2.7 lbf | 50 % | 0.39 in/s | IP54 | Dust Protected, Water Resistant | CE | 0.5 mm | 0.866 in | 10 | Lead Screw | 60 °C | -10 °C | Brushed | Wire Leads | — |
mightyZAP MICRO LINEAR ACTUATOR LIMIT S/W | Sign in to see pricing | Limit Switches | 5.4 lbf | 12 VAC | Linear Actuator | 2.7 lbf | 50 % | 0.39 in/s | IP54 | Dust Protected, Water Resistant | CE | 0.5 mm | 0.866 in | 10 | Lead Screw | 60 °C | -10 °C | Brushed | Wire Leads | — |
 mightyZAP MICRO LINEAR ACTUATOR LIMIT S/W | Sign in to see pricing | Limit Switches | 44.96 lbf | 12 VAC | Linear Actuator | 22.48 lbf | 50 % | 0.3 in/s | IP54 | Dust Protected, Water Resistant | CE | 0.5 mm | 0.866 in | 50 | Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Wire Leads | — |
mightyZAP MICRO LINEAR ACTUATOR LIMIT S/W | Sign in to see pricing | Limit Switches | 15.74 lbf | 12 VAC | Linear Actuator | 7.87 lbf | 50 % | 1.1 in/s | IP54 | Dust Protected, Water Resistant | CE | 0.5 mm | 0.866 in | 10 | ACME Screw, Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Wire Leads | — |
mightyZAP MICRO LINEAR ACTUATOR LIMIT S/W | Sign in to see pricing | Limit Switches | 24.73 lbf | 12 VAC | Linear Actuator | 12.36 lbf | 50 % | 0.59 in/s | IP54 | Dust Protected, Water Resistant | CE | 0.5 mm | 0.866 in | 20 | Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Wire Leads | — |

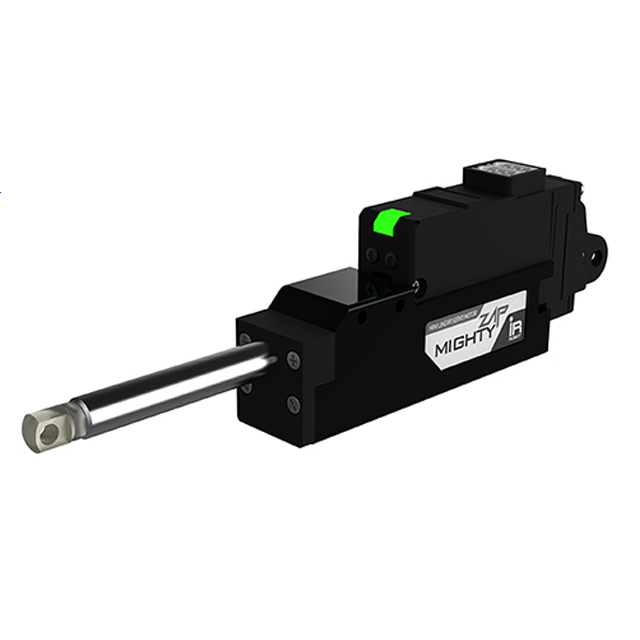

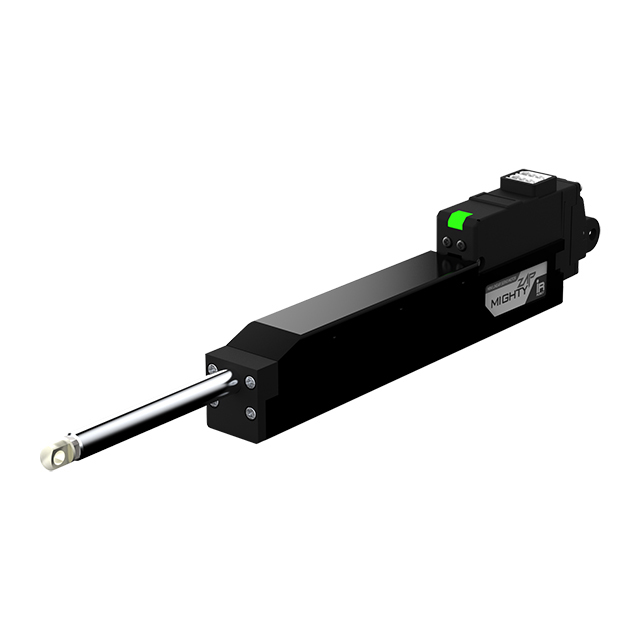

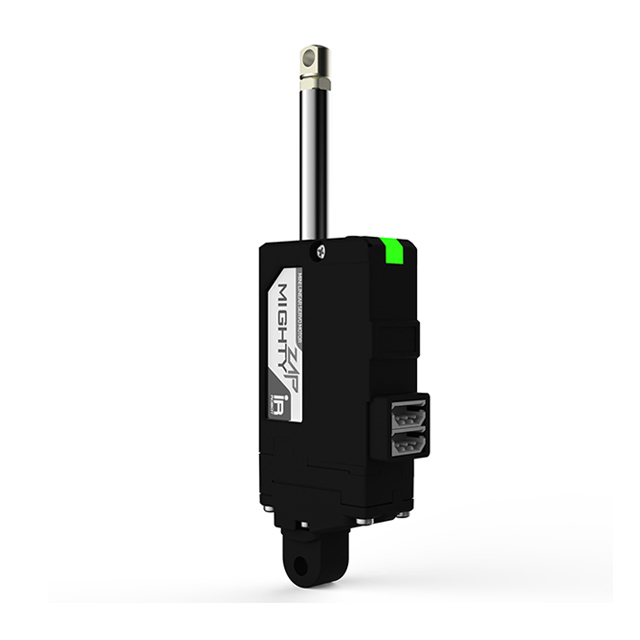

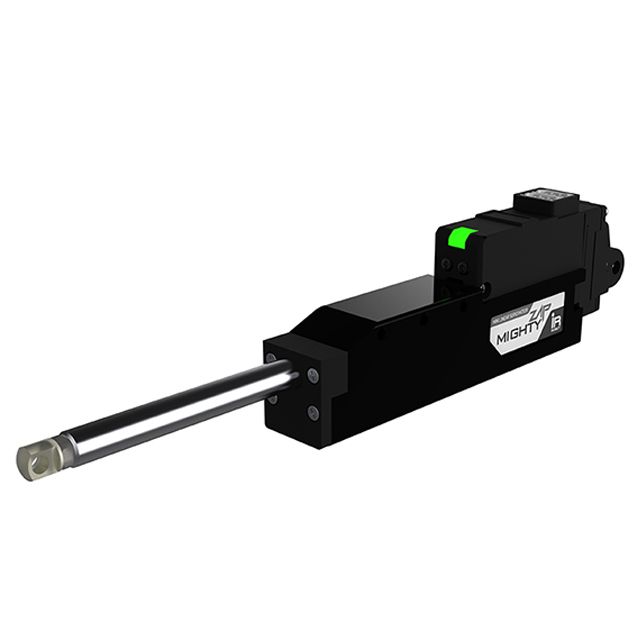

 mightyZAP MICRO/MINI LINEAR SERVO ACTUATOR | Sign in to see pricing | Integrated Controller | — | 12 VAC | Linear Actuator | 44.96 lbf | 50 % | 0.34 in/s | IP54 | Dust Protected, Water Resistant | CE | 30 µm, 60 µm | 1.063 in | 50 | Ball Screw, Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Cable with Connector | Potentiometer |
mightyZAP MICRO/MINI LINEAR SERVO ACTUATOR | Sign in to see pricing | Integrated Controller | — | 12 VAC | Linear Actuator | 44.96 lbf | 50 % | 0.34 in/s | IP54 | Dust Protected, Water Resistant | CE | 30 µm, 60 µm | 1.063 in | 50 | Ball Screw, Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Cable with Connector | Potentiometer |
mightyZAP MICRO/MINI LINEAR SERVO ACTUATOR | Sign in to see pricing | Integrated Controller | — | 12 VAC | Linear Actuator | 5.4 lbf | 50 % | 4.85 in/s | IP54 | Dust Protected, Water Resistant | CE | 30 µm, 60 µm | 1.063 in | 10 | Ball Screw, Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Cable with Connector | Potentiometer |
mightyZAP MICRO/MINI LINEAR SERVO ACTUATOR | Sign in to see pricing | Integrated Controller | — | 12 VAC | Linear Actuator | 5.4 lbf | 50 % | 4.85 in/s | IP54 | Dust Protected, Water Resistant | CE | 30 µm, 60 µm | 1.063 in | 10 | Ball Screw, Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Cable with Connector | Potentiometer |
 mightyZAP MICRO/MINI LINEAR SERVO ACTUATOR | Sign in to see pricing | Integrated Controller | — | 12 VAC | Linear Actuator | 7.64 lbf | 50 % | 3.64 in/s | IP54 | Dust Protected, Water Resistant | CE | 30 µm, 60 µm | 1.575 in | 10 | Ball Screw, Lead Screw | 60 °C | -10 °C | Brushed (Coreless) | Cable with Connector | Potentiometer |
