MCP73837Advanced Stand-Alone Linear Li-Ion/Li-Polymer Charge Management Controller | Integrated Circuits (ICs) | 5 | Active | The MCP73837 is a highly integrated full-featured linear Li-ion battery charger with both USB and AC-adapter inputs. Automatic Power Source Selection simplifies the design of battery chargers for applications that are powered from either a USB port or an AC adapter. For USB-powered systems, the MCP73837 specifically adheres to the current limits governed by the USB application. Also includes safety features such as cell temperature monitoring, on-chip thermal regulation and safety timers. Available in 10-pin 3mm x 3mm DFN package or 10-pin MSOP package. |
MCP73838Advanced Stand-Alone Linear Li-Ion/Li-Polymer Charge Management Controller | Battery Chargers | 10 | Active | The MCP73838 is a highly integrated full-featured linear Li-ion battery charger with both USB and AC-adapter inputs. Automatic Power Source Selection simplifies the design of battery chargers for applications that are powered from either a USB port or an AC adapter. For USB-powered systems, the MCP73838 specifically adheres to the current limits governed by the USB application. Also includes safety features such as cell temperature monitoring, on-chip thermal regulation and safety timers. Available in 10-pin 3mm x 3mm DFN package or 10-pin MSOP package. |

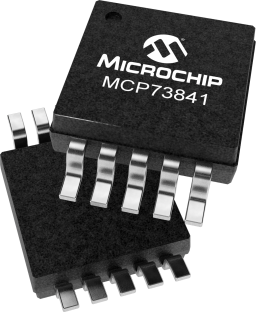

MCP73841Advanced Single/Dual Lithium-Ion/Li-Polymer Charge Management Controller | Battery Chargers | 3 | Active | The MCP73841 combines high accuracy constant-voltage (0.5% max), constant-current regulation, cell preconditioning, cell temperature monitoring, advanced safety timers, automatic charge termination, and charge status indication in a space saving MSOP-10 package. The device provides a complete, fully functional, stand-alone charge management solution for applications utilizing single cell Lithium-Ion or Lithium-Polymer battery packs. Two preset voltage regulation options are available, 4.1V and 4.2V, for use with either coke or graphite anodes. The MCP73841 operates with an input voltage range of 4.5V to 12V and is fully specified over the ambient temperature range of -40°C to +85°C. |
MCP73842Advanced Single/Dual Lithium-Ion/Li-Polymer Charge Management Controller | Battery Chargers | 2 | Active | The MCP73842 combines high accuracy constant-voltage (0.5% max), constant-current regulation, cell preconditioning, cell temperature monitoring, advanced safety timers, automatic charge termination, and charge status indication in a space saving MSOP-10 package. The device provides a complete, fully functional, stand-alone charge management solution for applications utilizing dual series cell Lithium-Ion or Lithium-Polymer battery packs. Two preset voltage regulation options are available, 8.2V and 8.4V, for use with either coke or graphite anodes. The MCP73842 operates with an input voltage range of 8.7V to 12V and is fully specified over the ambient temperature range of -40°C to +85°C. |

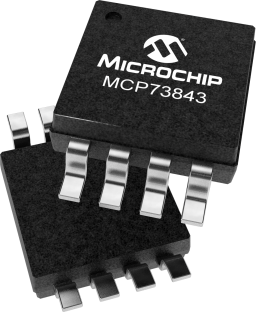

MCP73843Advanced Single/Dual Lithium-Ion/Li-Polymer Charge Management Controller | Power Management (PMIC) | 3 | Active | The MCP73843 combines high accuracy constant-voltage (0.5% max), constant-current regulation, cell preconditioning, advanced safety timers, automatic charge termination, and charge status indication in a space saving MSOP-8 package. The device provides a complete, fully functional, stand-alone charge management solution for applications utilizing single cell Lithium-Ion or Lithium-Polymer battery packs. Two preset voltage regulation options are available, 4.1V and 4.2V, for use with either coke or graphite anodes. The MCP73843 operates with an input voltage range of 4.5V to 12V and is fully specified over the ambient temperature range of -40°C to +85°C. |
MCP73844Advanced Single/Dual Lithium-Ion/Li-Polymer Charge Management Controller | Battery Chargers | 3 | Active | The MCP73844 combines high accuracy constant-voltage (0.5% max), constant-current regulation, cell preconditioning, advanced safety timers, automatic charge termination, and charge status indication in a space saving MSOP-8 package. The device provides a complete, fully functional, stand-alone charge management solution for applications utilizing dual series cell Lithium-Ion or Lithium-Polymer battery packs. Two preset voltage regulation options are available, 8.2V and 8.4V, for use with either coke or graphite anodes. The MCP73844 operates with an input voltage range of 8.7V to 12V and is fully specified over the ambient temperature range of -40°C to +85°C. |
MCP73853USB Li-Ion/Li-Polymer Battery Charger with Safety Timers & Thermal Monitor | Integrated Circuits (ICs) | 2 | Active | The MCP73853 is a highly advanced linear charge management controller for use in space limited, high-performance applications. The MCP73853 integrates most of the external components (pass transistor, reverse blocking protection, current sensing) and combines high-accuracy constant voltage, constant current regulation, cell preconditioning, cell temperature monitoring, advanced safety timers, automatic charge termination, and charge status and fault indication in a space-saving 16-pin, 4 x 4 QFN package.
The MCP73853 is designed specifically for USB applications, adhering to all the specifications governing the USB power bus. |

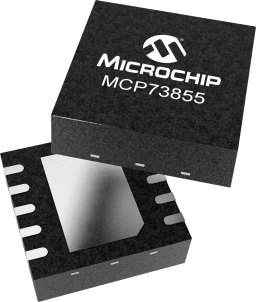

MCP73855USB Li-Ion/Li-Polymer Battery Chargers w/Safety Timers | Evaluation and Demonstration Boards and Kits | 2 | Active | The MCP73855 is a highly advanced linear charge management controller for use in space limited, high-performance applications. The MCP73855 integrates most of the external components (pass transistor, reverse blocking protection, current sensing) and combines high-accuracy constant voltage, constant current regulation, cell preconditioning, advanced safety timers, automatic charge termination, and charge status indication in a space-saving 10-pin, 3 x 3 DFN package. The MCP73855 is designed specifically for USB applications, adhering to all the specifications governing the USB power bus. |
| Power Management (PMIC) | 4 | Obsolete | |
| Battery Chargers | 5 | Obsolete | |
