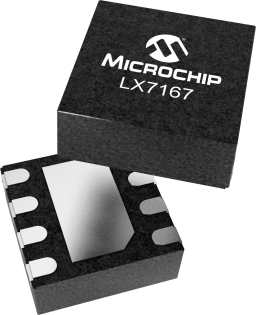

LX7167 is a step-down PWM Switching Regulator IC with integrated high side P-CH and low side NCH MOSFETs. The IC operates using a hysteretic control topology with a full load operating switching frequency of 3MHz allowing small output filter components while maintaining excellent dynamic load response. The operational input voltage range of LX7167 is from 3V to 5.5V. The part has a Power Save Mode (PSM) that automatically transitions between PWM and PSM mode depending on the load current. This allows the converter’s efficiency to remain high when load current drops. There is a Power Good function to indicate the status of the IC. In the shutdown mode, the IC’s current consumption is reduced to less than 1µA and the output capacitor is discharged. Other features of the part are: a) Cycle-by-cycle current limit followed by HICCUP mode which reduces the overall power dissipation of the internal MOSFETs, b) thermal protection and internal digital soft start. The LX7167 is available in a 2mm x 2mm 8 pin exposed pad DFN package.

The LX7176A is a 4A step-down regulator with integrated MOSFETs packaged in a space saving QFN12 2mm x 2mm for today’s mobile devices. It uses an ultra fast, constant frequency hysteretic control method to minimize external filter components while maintaining excellent regulation. The LX7176A reference voltage is 0.6V. The LX7176A operates from 3V to 5.5V rails and outputs 0.6V to 100% of the input voltage. Cycle-by-cycle current limiting protects against overcurrent conditions. Hiccup mode provides protection for heavy over-load or short-circuit faults. Thermal protection shuts down the regulator under overtemperature conditions. Over voltage conditions will immediately shut off the output to protect against permanent damage. The LX7176A automatically restarts when all fault conditions are cleared. Internal soft start circuitry limits start up inrush currents.

The LX7180A is a 4A step-down regulator with integrated MOSFETs packaged in a space saving QFN12 2 mm x 2 mm for today’s mobile devices. It uses an ultra-fast, constant frequency hysteretic control method to minimize external filter components while maintaining excellent regulation. The LX7180A reference voltage is programmable from 0.6 V to 1.195 V through a high speed (up to 3.4 MHz), bi-directional I2C bus. The LX7180 operates from 3 V to 5.5 V rails and outputs 0.6 V to 100% of the input voltage. Cycle-by-cycle current limiting protects against overcurrent conditions. Hiccup mode provides protection for heavy over-load or short-circuit faults. Thermal protection shuts down the regulator under overtemperature conditions. Over voltage conditions will immediately shut off the output to protect against permanent damage. The LX7180A automatically restarts when all fault conditions are cleared.

The LX7219 is a digitally controlled step-down regulator IC with an integrated 22 mΩ high-side P-channel MOSFET and a 13 mΩ low-side N-channel MOSFET. It features Microsemi's proprietary constant frequency hysteretic control engine for near-instantaneous correction to line/load transients for a voltage range of 2.7 V to 5.5 V, and 6 A constant frequency. It does not require high-ESR output capacitors and incorporates energy-saving power save or pulse skip mode (PSM) at light loads, to extend battery life in mobile applications. The LX7219 has an I C serial interface port for output voltage 2 margining and monitoring, if required (it can also operate in default mode). In addition it includes robust fault monitoring functions. The LX7219 is available in 0.9 V single slave address and 0.8 V default output voltage (no voltage divider is necessary) with four slave addresses. The output voltage can be adjusted with an external voltage divider up to 3.3 V.

The LX7220 is a digitally controlled step-down regulator IC with an integrated 22mΩ high-side P-channel MOSFET and a 13mΩ low-side N-channel MOSFET. It features Microsemi’s proprietary constant-frequency hysteretic control engine for near-instantaneous correction to line/load transients. It does not require high-ESR output capacitors and incorporates energysaving "PSM" (Power Save or Pulse Skip Mode) at light loads, to extend battery life in mobile applications. The LX7220 has an I 2C serial interface port for output voltage margining and monitoring if required (it can also operate in default mode). In addition, it includes robust fault monitoring functions. The LX7220 will operate from 2.7V to 5.5V, and is available in 0.95V or 0.9V output voltages (no voltage divider is necessary). The output voltage can also be adjusted with an input voltage of 5V and external voltage divider up to 3.3V.
