The Adaptec® HBA 1200-8i host bus adapter offers maximum performance with SAS/SATA/NVMe tri-mode functionality, enabling high-performance connectivity solutions for server OEM, storage systems, data center, and enterprise customers. Built on Microchip's proven 5th generation SmartIOC 2200 storage controller, the HBA 1200-8i supports a x8 PCIe Gen 4 host interface with 8 media facing port variants for internal Tri-mode connectivity. New technologies available with the HBA 1200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. HBA 1200 adapters include Microchip’s Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project, and support Self-Encrypting Drive (SED) management software. The HBA 1200 supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market. Visit [Adaptec Support](https://storage.microsemi.com/en-us/support/) for firmware, drivers, and documentation.

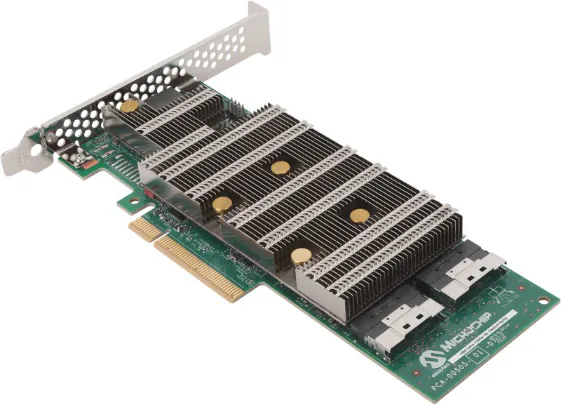

The Adaptec® HBA Ultra 1200p-16i host bus adapter offers maximum performance with SAS/SATA/NVMe tri-mode functionality, enabling high-performance connectivity solutions for server OEM, storage systems, data center, and enterprise customers. Built on Microchip's proven 5th generation SmartIOC 2200 storage controller, the HBA Ultra 1200p-16i supports a x16 PCIe Gen 4 host interface with 16 media facing port variants for internal tri-mode connectivity. New technologies available with the HBA 1200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. HBA 1200 adapters include Microchip’s Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project, and support Self-Encrypting Drive (SED) management software. The HBA 1200 supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market. Visit [Adaptec Support](https://storage.microsemi.com/en-us/support/) for firmware, drivers, and documentation.

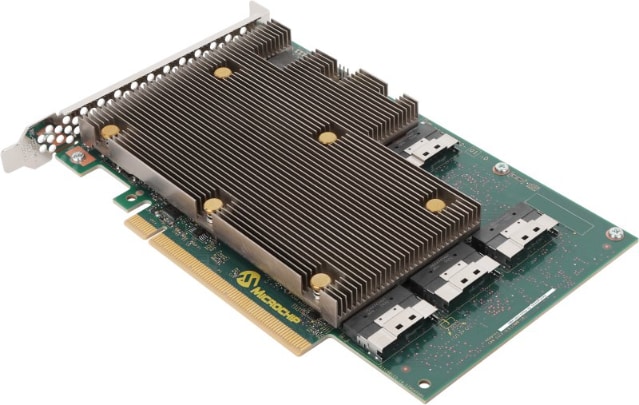

The Adaptec® HBA Ultra 1200p-32i host bus adapter offers maximum performance with SAS/SATA/NVMe Tri-mode functionality, enabling high-performance connectivity solutions for server OEM, storage systems, data center, and enterprise customers. Built on Microchip's proven 5th generation SmartIOC 2200 storage controller, the HBA Ultra 1200p-32i supports a x16 PCIe Gen 4 host interface with the industry's highest 32 media facing port variants for internal tri-mode connectivity. New technologies available with the HBA 1200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. HBA 1200 adapters include Microchip’s Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project, and support Self-Encrypting Drive (SED) management software. The HBA 1200 supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market. Visit [Adaptec Support](https://storage.microsemi.com/en-us/support/) for firmware, drivers, and documentation.

The HCS200 is a code hopping encoder designed for Remote Keyless Entry (RKE) systems. The HCS200 utilizes Microchip’s patented KEELOQ® code hopping technology, which incorporates high security, a small package outline and low cost, to make this device a perfect solution for replacement of fixed code devices in unidirectional remote keyless entry systems and access control systems. The HCS200 combines a 32-bit hopping code generated by a non-linear encryption algorithm, with a 28-bit serial number and 6 information bits to create a 66-bit transmission stream. The length of the transmission eliminates the threat of code scanning, and the code hopping mechanism makes each transmission unique, thus rendering code capture and re-send schemes useless. The encryption key, serial number, and configuration data are stored in EEPROM, which is not accessible via any external connection. This makes the HCS200 a very secure unit. The HCS200 provides an easy-to-use serial interface for programming the necessary security keys, system parameters, and configuration data.

The HCS201 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The HCS201 utilizes Microchip’s patented KEELOQ® code hopping technology, which incorporates high security, a small package outline and low cost, to make this device a perfect solution for unidirectional remote keyless entry systems and access control systems. The HCS201 combines a 32-bit hopping code generated by a non-linear encryption algorithm, with a 28-bit serial number and 6 status bits to create a 66-bit transmission steam. The length of the transmission eliminates the threat of code scanning and the code hopping mechanism makes each transmission unique, thus rendering code capture and re-send (code grabbing) schemes useless. The encryption key, serial number, and configuration data are stored in EEPROM, which is not accessible via any external connection. This makes the HCS201 a very secure unit. The HCS201 provides an easy-to-use serial interface for programming the necessary security keys, system parameters, and configuration data. The encryption key and code combinations are programmable but read-protected. The HCS201 operates over a wide voltage range of 3.5V to 13V and has three button inputs in an 8-pin configuration, which allows the system designer the freedom to utilize up to 7 functions.

The HCS300 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The HCS300 utilizes Microchip’s patented KEELOQ® hopping technology, which incorporates high security, a small package outline and low cost to make this device a perfect solution for unidirectional remote keyless entry systems and access control systems. The HCS300 combines a 32-bit hopping code generated by a non-linear encryption algorithm, with a 28-bit serial number and 6 status bits to create a 66-bit transmission stream. The length of the transmission eliminates the threat of code scanning and the code hopping mechanism makes each transmission unique, thus rendering code capture and re-send (code grabbing) schemes useless. The encryption key, serial number, and configuration data are stored in EEPROM, which is not accessible via any external connection. This makes the HCS300 a very secure unit. The HCS300 provides an easy-to-use serial interface for programming the necessary security keys, system parameters, and configuration data. The encryption keys and code combinations are programmable but read-protected. The HCS300 operates over a wide voltage range of 2.0V to 6.3V and has four button inputs in an 8-pin configuration. This allows the system designer the freedom to utilize up to 15 functions. Additional features include an LED Drive, Overflow bits, Time-out, and Battery low indicator. The HCS301 operates in a voltage range of 2.0V to 6.3V.

The HCS301 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The HCS301 utilizes Microchip’s patented KEELOQ® hopping technology, which incorporates high security, a small package outline, and low cost, to make this device a perfect solution for unidirectional remote keyless entry systems and access control systems. The HCS301 combines a 32-bit hopping code generated by a non-linear encryption algorithm, with a 28-bit serial number and six status bits to create a 66-bit transmission stream. The length of the transmission eliminates the threat of code scanning and the code hopping mechanism makes each transmission unique, thus rendering code capture and re-send (code grabbing) schemes useless. The encryption key, serial number, and configuration data are stored in EEPROM, which is not accessible via any external connection. This makes the HCS301 a very secure unit. The HCS301 provides an easy-to-use serial interface for programming the necessary security keys, system parameters, and configuration data. Additional features include an LED Drive, Overflow bits, Time-out, and Battery low indicator. The HCS301 operates in a voltage range of 3.5V to 13.0V.
