Parts from MALLORY that are not part of a series
| Part Information | Pricing (lowest) | Capacitance | Polarization | Height - Seated (Max) | Lifetime | ESR (Equivalent Series Resistance) | Mounting Type | Size / Dimension Diameter | Tolerance | Ripple Current | Lead Spacing | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Applications | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MALLORY CAP ALUM 10UF 20% 50V RADIAL TH | Sign in to see pricing | 10 µF | Polar | 0.512 in | 2000 Hrs | 15.92 Ohm | Through Hole | 0.197 in | 20 % | 50 mA, 70 mA | 0.079 in | -55 °C | 105 °C | Can, Radial | General Purpose | 50 V |
 MALLORY CAP ALUM 22UF 20% 50V RADIAL TH | Sign in to see pricing | 22 µF | Polar | 0.512 in | 2000 Hrs | 7.24 Ohm | Through Hole | 0.197 in | 20 % | 75 mA, 105 mA | 0.079 in | -55 °C | 105 °C | Can, Radial | General Purpose | 50 V |

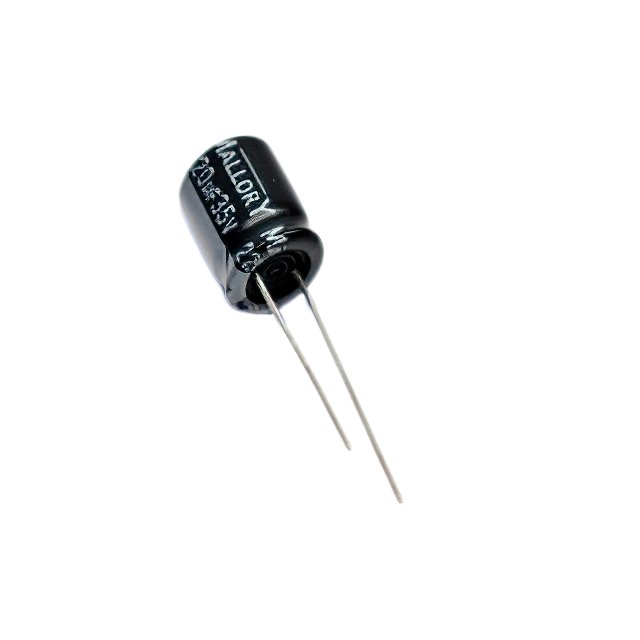

 MALLORY CAP ALUM 220UF 20% 35V RADIAL TH | Sign in to see pricing | 220 µF | Polar | 0.591 in | 2000 Hrs | 840 mOhm | Through Hole | 0.394 in | 20 % | 315 mA, 441 mA | 0.197 in | -55 °C | 105 °C | Can, Radial | General Purpose | 35 V |

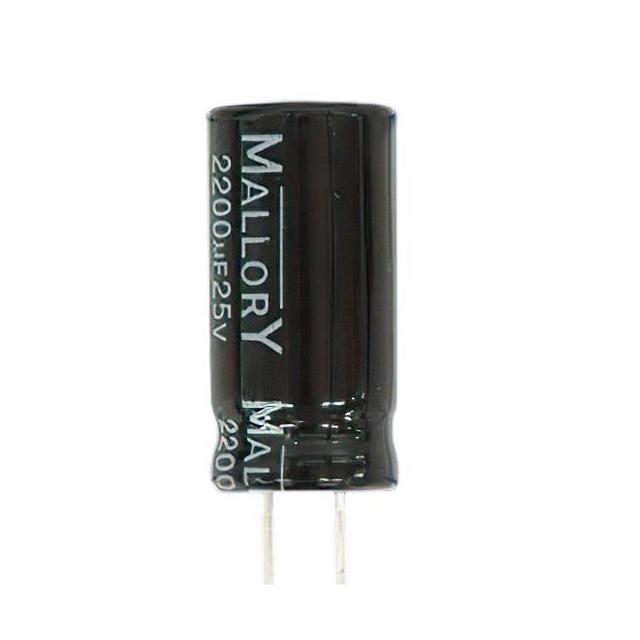

 MALLORY CAP ALUM 2200UF 20% 25V RADIAL | Sign in to see pricing | 2200 ĄF | Polar | 1.102 in | 2000 Hrs | 110 mOhm | Through Hole | 0.512 in | 20 % | 1.23 A, 1.476 A | 0.197 in | -55 °C | 105 °C | Can, Radial | General Purpose | 25 VAC |
 MALLORY CAP ALUM 2.2UF 20% 50V RADIAL TH | Sign in to see pricing | 2.2 µF | Polar | 0.512 in | 2000 Hrs | 72.38 Ohm | Through Hole | 0.197 in | 20 % | 18 mA, 25.2 mA | 0.079 in | -55 °C | 105 °C | Can, Radial | General Purpose | 50 V |
MALLORY CAP ALUM 33UF 20% 16V RADIAL TH | Sign in to see pricing | 33 µF | Polar | 0.512 in | 2000 Hrs | 7.24 Ohm | Through Hole | 0.197 in | 20 % | 70 mA, 84 mA | 0.079 in | -55 °C | 105 °C | Can, Radial | General Purpose | 16 V |
 MALLORY CAP ALUM 33UF 20% 63V RADIAL TH | Sign in to see pricing | 33 µF | Polar | 0.512 in | 2000 Hrs | 4.02 Ohm | Through Hole | 0.248 in | 20 % | 110 mA, 154 mA | 0.098 in | -55 °C | 105 °C | Can, Radial | General Purpose | 63 V |
 MALLORY CAP ALUM 47UF 20% 25V RADIAL TH | Sign in to see pricing | 47 µF | Polar | 0.512 in | 2000 Hrs | 4.52 Ohm | Through Hole | 0.197 in | 20 % | 90 mA, 108 mA | 0.079 in | -55 °C | 105 °C | Can, Radial | General Purpose | 25 VAC |
 MALLORY CAP ALUM 47UF 20% 50V RADIAL TH | Sign in to see pricing | 47 µF | Polar | 0.531 in | 2000 Hrs | 3.39 Ohm | Through Hole | 0.248 in | 20 % | 125 mA, 175 mA | 0.098 in | -55 °C | 105 °C | Can, Radial | General Purpose | 50 V |
 MALLORY CAP ALUM 10UF 20% 160V RADIAL TH | Sign in to see pricing | 10 µF | Polar | 0.512 in | 2000 Hrs | 19.9 Ohm | Through Hole | 0.315 in | 20 % | 65 mA, 104 mA | 0.138 in | -25 °C | 85 °C | Can, Radial | General Purpose | 160 V |
