Magnitude Lighting | Manufacturer Directory | Zenode.ai

M

Magnitude Lighting

Series

Product families from Magnitude Lighting

Series	Category	Parts	Status	Description

Standalone parts

Parts that are not part of a series

Standalone parts(45)

Parts from Magnitude Lighting that are not part of a series

Part Information	Pricing (lowest)	Dimming	Number of Outputs	Efficiency	Voltage - Input (Min)	Approval Agency	Type	Topology	Standard Number	Voltage - Input (Max)	Power (Watts)	Ratings	Termination Style	Current - Output (Max)	Features	Voltage - Output (Max)	Voltage - Output (Min)	Size / Dimension Height	Size / Dimension Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Dimming (Min)	Dimming (Max)	Voltage - Output	Size / Dimension Width	Size / Dimension Length
CCT13W350 Magnitude Lighting 13W 350MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	13 W	IP20	Wire Leads	350 mA	OCP, OTP, OVP, SS	40 V	25 V	1.06 in	2.56 in	-30 °C	60 °C	—	—	—	—	—
CCT13W500 Magnitude Lighting 13W 500MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	13 W	IP20	Wire Leads	500 mA	OCP, OTP, OVP, SS	26 V	18 V	1.06 in	2.56 in	-30 °C	60 °C	—	—	—	—	—
CCT13W700 Magnitude Lighting 13W 700MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	13 W	IP20	Wire Leads	700 mA	OCP, OTP, OVP, SS	18.5 V	13 V	1.06 in	2.56 in	-30 °C	60 °C	—	—	—	—	—
CCT30W700 Magnitude Lighting 30W 700MA DIMMABLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	39 W	IP20	Wire Leads	700 mA	OCP, OTP, OVP, SS	40 V	28 V	0.98 in	3.09 in	-30 °C	60 °C	—	—	—	—	—
CCT9W200 Magnitude Lighting 9W 200MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	9 W	IP20	Wire Leads	200 mA	OCP, OTP, OVP, SS	40 V	30 V	0.86 in	2.16 in	-30 °C	60 °C	—	—	—	—	—
CCT9W350 Magnitude Lighting 9W 350MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	9 W	IP20	Wire Leads	350 mA	OCP, OTP, OVP, SS	26 V	17 V	0.86 in	2.16 in	-30 °C	60 °C	—	—	—	—	—
CCT9W500 Magnitude Lighting 9W 500MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	9 W	IP20	Wire Leads	500 mA	OCP, OTP, OVP, SS	18.5 V	12 V	0.86 in	2.16 in	-30 °C	60 °C	—	—	—	—	—
CCT9W700 Magnitude Lighting 9W 700MA DIMMBLE CC LED DRIVER	Sign in to see pricing Log in Sign up free	ELV, MLV, TRIAC	1	82 %	100 VAC	CSA, UL	Constant Current	Buck	C22.2, UL 8750	120 V p-p	9 W	IP20	Wire Leads	700 mA	OCP, OTP, OVP, SS	13 V	8 V	0.86 in	2.16 in	-30 °C	60 °C	—	—	—	—	—

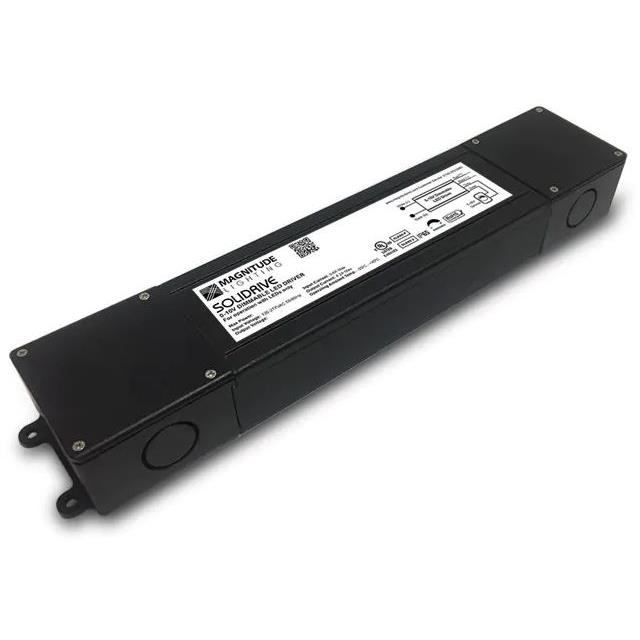

CVD30L24DC Magnitude Lighting SOLIDRIVE, CV, 0-10V, LISTED, 30	Sign in to see pricing Log in Sign up free	—	1	84 %	120 V	FCC, UL	Constant Voltage	AC DC Converter	2043, 8750, CSA C22.2 NO. 250.13-14	277 VAC	30 W	IP66	Wire Leads	1.3 A	OCP, OTP, OVP, SS	—	—	1.4 in	—	-40 °C	85 °C	0 V	10 V	24 V	2.36 in	12.1 in
CVD50L12DC Magnitude Lighting SOLIDRIVE, CV, 0-10V, LISTED, 50	Sign in to see pricing Log in Sign up free	—	1	84 %	120 V	FCC, UL	Constant Voltage	AC DC Converter	2043, 8750, CSA C22.2 NO. 250.13-14	277 VAC	30 W	IP66	Wire Leads	4.2 A	OCP, OTP, OVP, SS	—	—	1.4 in	—	-40 °C	85 °C	0 V	10 V	12 V	2.36 in	12.1 in

1–10 of 45

Page 1 of 5
