LITTELFUSE

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(24842)

...

Part	Category	Description
LITTELFUSE DRR-DTH-Q2167-2Obsolete	Switches	SWITCH REED CUSTOM
LITTELFUSE DRR-DTH-70-85Obsolete	Switches	SWITCH REED SPDT 350MA 350V
LITTELFUSE CR101J25S215QF	Switches	ROCKER SWITCHES
LITTELFUSE 104-0201-006	Switches	SWITCH PUSHBUTTON DPDT 6A 250V
LITTELFUSE 0HEV040.ZXPCBLObsolete	Circuit Protection	FUSE - HEV LC 425VDC 40A, PCB 3.9MM TERM/ BULK
LITTELFUSE 0324015.HObsolete	Circuit Protection	FUSE CERM 15A 250VAC 125VDC 3AB
LITTELFUSE NANOSMD200LR-2Obsolete	Circuit Protection	PTC RESET FUSE 6V 2A 1206
LITTELFUSE C115371-6651	Connectors Interconnects	LINEAR IC'S
LITTELFUSE SMCJ36CA-E	Circuit Protection	TVS 1.5KW 36V 5%BI DO-214AB TR13
LITTELFUSE C115370-5031	Connectors Interconnects	LINEAR IC'S

Series	Category	# Parts	Status	Description

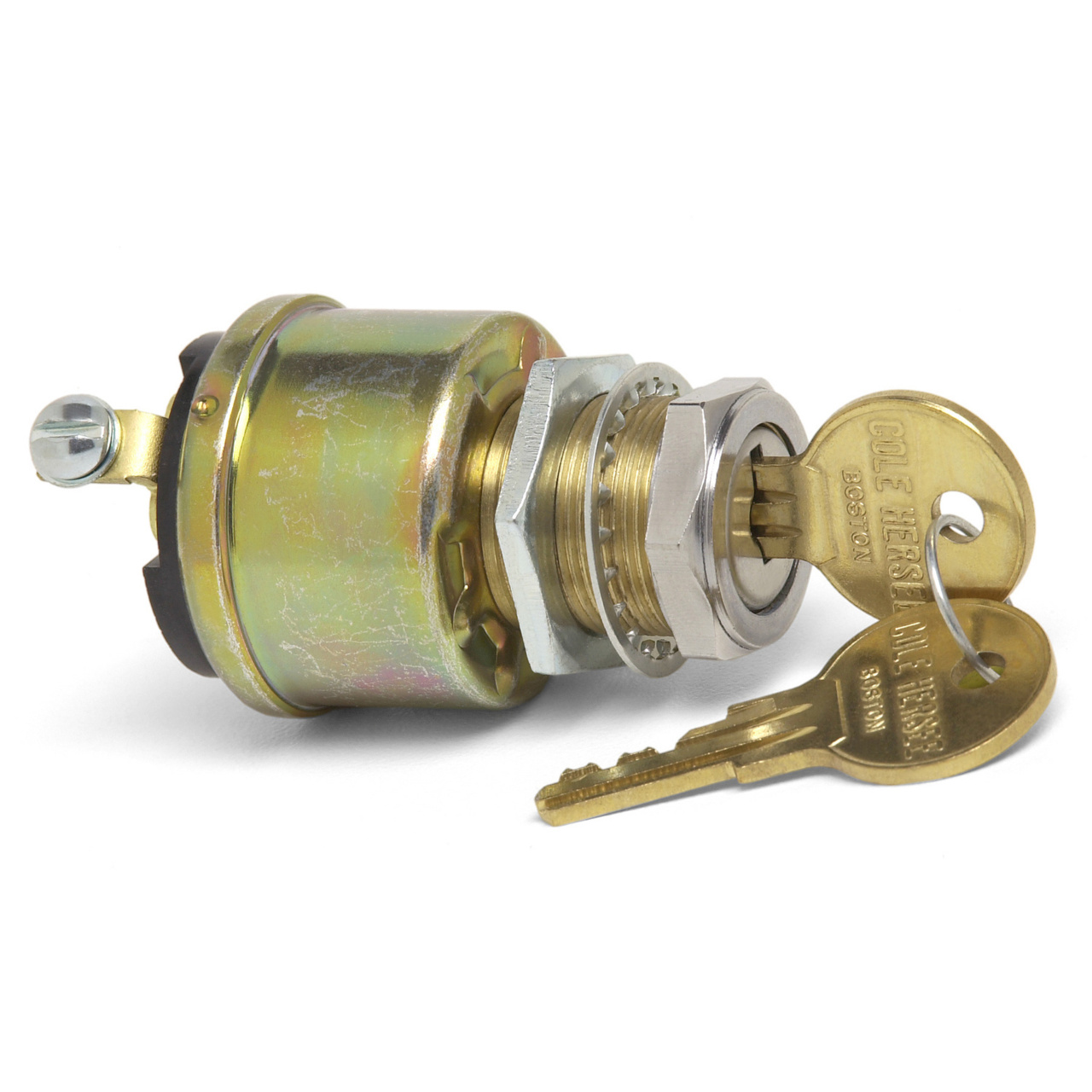

M-489-03SW IGN 2POS	Keylock Switches	1	Active	This pass-thru stud boasts high installation torque values to allow the use of large cable sizes for high current applications. Stud caps are included to protect from accidental shorts.
M-489-BXROT IGN SW 2POS KEYED 10A/12VDC	Keylock Switches	1	Active	This pass-thru stud boasts high installation torque values to allow the use of large cable sizes for high current applications. Stud caps are included to protect from accidental shorts.

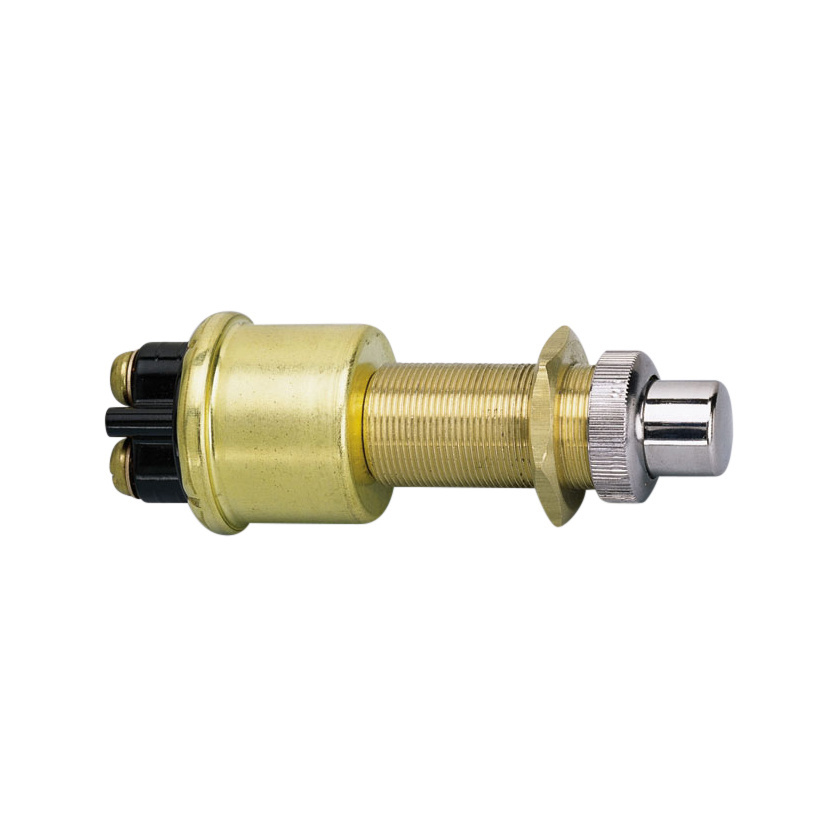

M-490SW P-P MOM NO SCW	Switches	1	Active	35A at 12V, 20A at 24V, 10A at 36V DC. Normally Off, push to On. Two brass screw terminals. Mounting stem; brass 5/8" -32 thread, 1 3/8: (34.9mm) long, fits panels up to 1" (25.4mm) thick. Silver contacts.

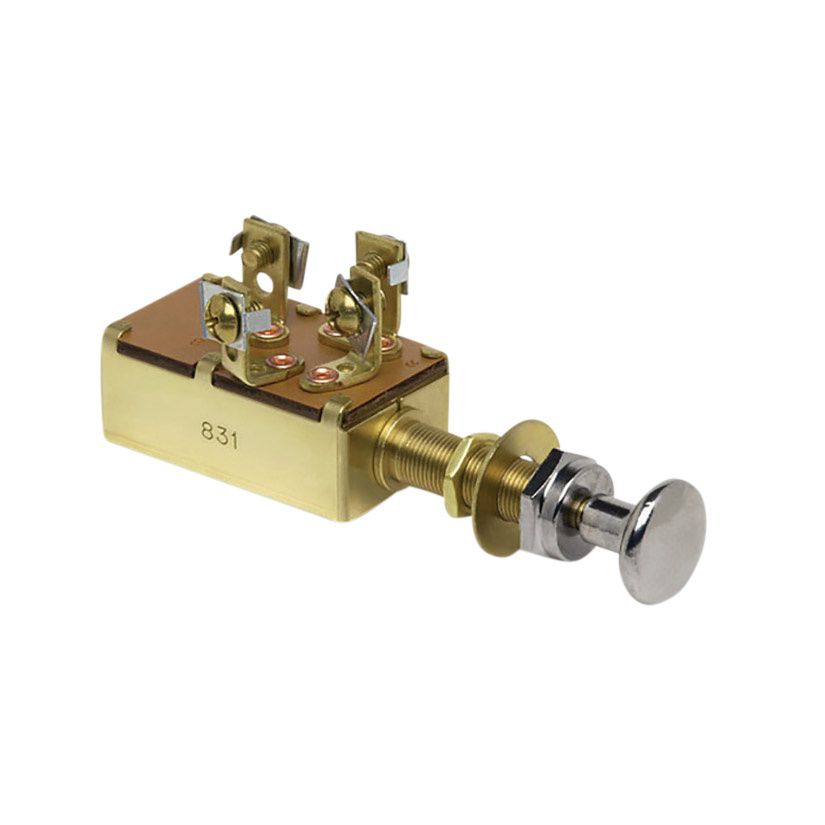

M-490-BXMOM P/P SW 2POS N.O 20A/24VDC	Switches	1	Active	Littelfuse Push Pull Switches are designed for universal applications within harsh environments. Their mounting. body. and actuator features are designed for ease-of-use and extended product lifecycle. With heavy duty brass bodies. the Marine Push Pull Switches are designed for circuit control within the Marine environment.

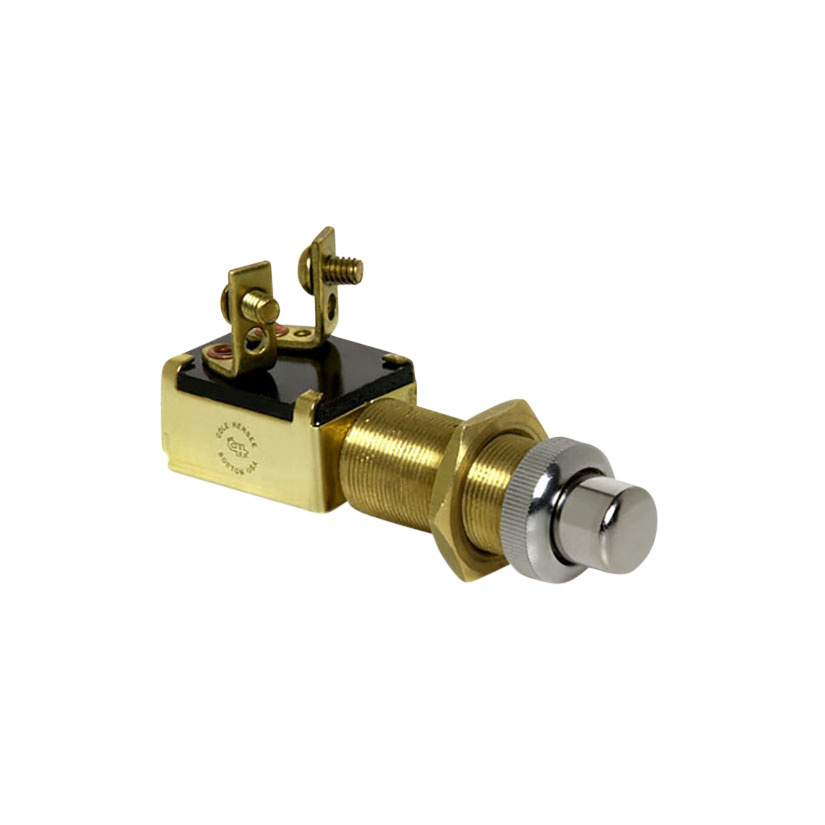

M-492SW P-P MOM NO SCW	Switches	1	Active	10A at 12V DC. For 6-36V DC applications. Two brass screw terminals. Brass mounting stem 5/8" -32, 1 3/8" (34.9mm) long. Fits panels up to 1" (25.4mm) thick.
M-497SW IGN 2POS	Switches	1	Active	This pass-thru stud boasts high installation torque values to allow the use of large cable sizes for high current applications. Stud caps are included to protect from accidental shorts.

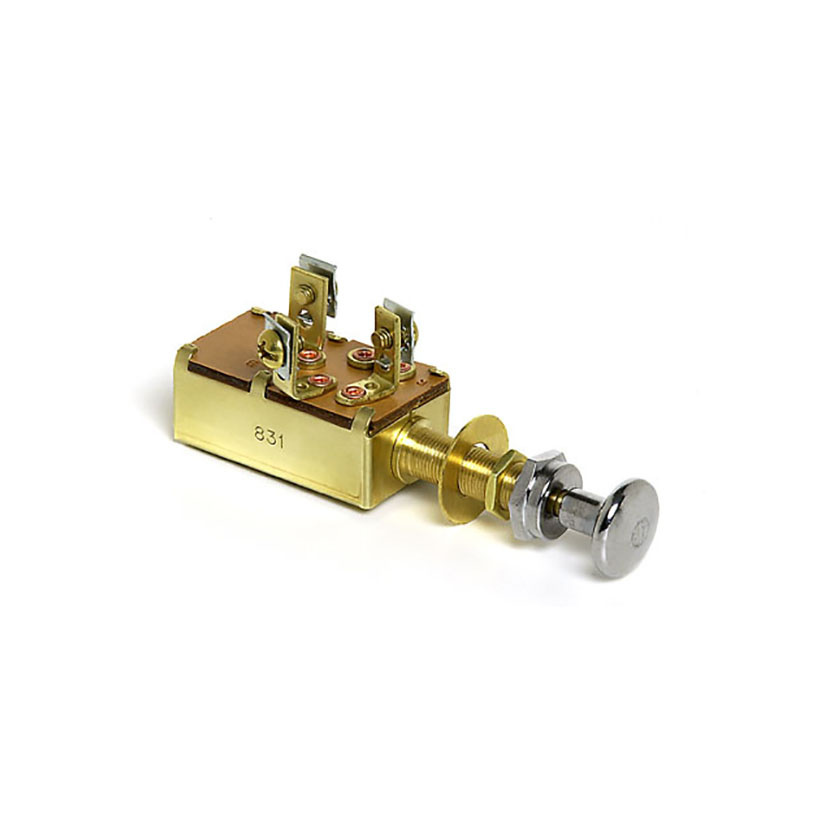

M-531SW P-P 3POS	Pushbutton Switches	1	Active	10A per circuit at 6-36V DC. Brass housing. Brass mounting stem 3/8" -32 thread, 1 1/4" (31.8mm) long. Fits panels up to 3/4" (19.1mm) thick. Off - On A&B - On B&H. Three brass screw terminals. Chrome-plated brass knob 10-32 thread. Brass mounting stem, 3/8" -32 thread, 1 1/4" (31.8mm) long, fits panels up to 1" (25.4mm) thick. With brass facenut, washer and hexnut. Good for marine applications.
M-532SW LIGHT 3POS	Switches	1	Active	SPDT On-On-Off Off-On (B, R & A) - On (B, R & H). Brass housing Four brass screw terminals. Chrome-plated brass knob, 10-32 thread. Brass mounting stem 3/8"-32 thread, 1 1/4" long (31.8mm) fits panels up to 1" thick (25.4mm). With brass facenut, washer and hexnut. 10A at 12V, 6-36V DC. Offsite info on Marine Navigation Light wiring.

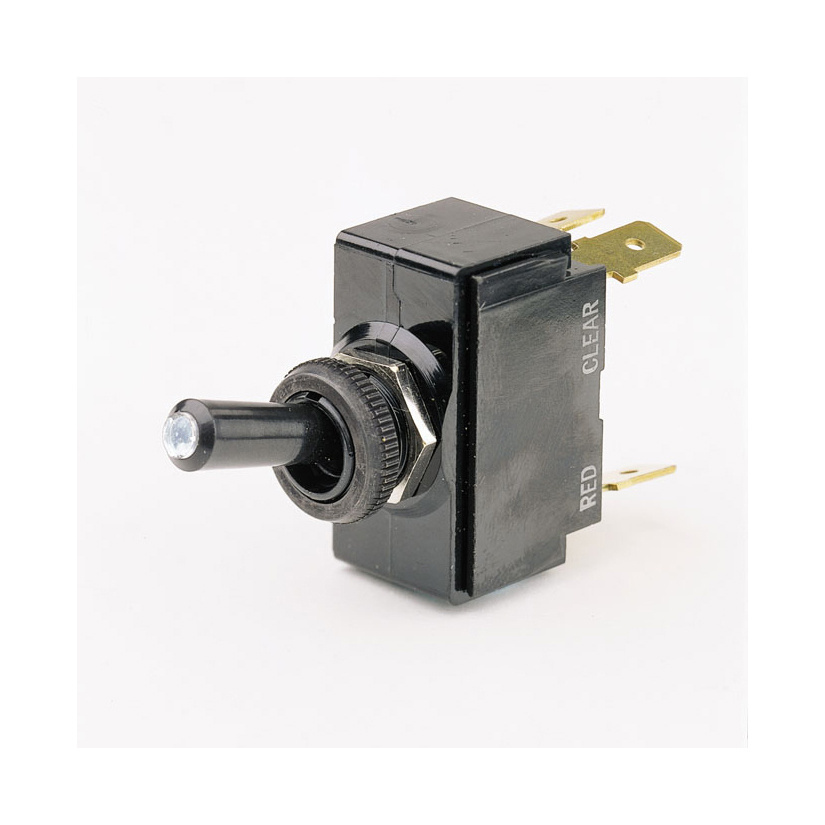

M-54111-01	Toggle Switches	1	Active

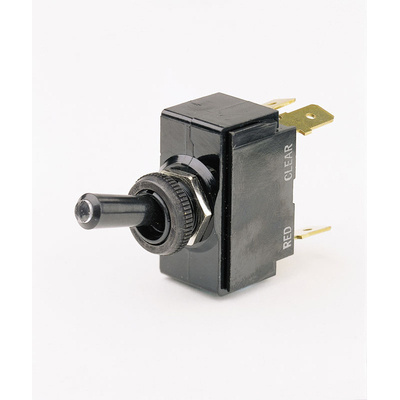

M-54111-02SW TGL SPDT BLD LIGHTED	Toggle Switches	1	Active	Independent illumination switches can be wired for dependent operation. Tip of handle is illuminated red in the On position, clear in the Off position. Tip of handle is illuminatedRed in the On position, illuminated Clear in the Off position. Silver contacts. 15/32" -32 thread mounting stem. Nickel-plated brass hexnut. Black plastic handle, housing and facenut. Keyway in the down position. Blade terminals. 25A at 12V DC. Plastic facenut can be replaced with black metal facenut 83252.
