Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra low internal resistance. ultra low voltage drop and automatic resettable protection are desired. This new series allows a higher hold current device in a smaller factor and lower profile as compared to a standard PPTC. It offers ultra low internal resistance while maintaining the high level electrical characteristics and performances of standard PPTC products. All devices are UL recognized and TUV approved and have maximum fault current of 50A. They are available in 0402 to 2920 sizes while the hold current ranges from 100mA to 9A.

Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra low internal resistance. ultra low voltage drop and automatic resettable protection are desired. This new series allows a higher hold current device in a smaller factor and lower profile as compared to a standard PPTC. It offers ultra low internal resistance while maintaining the high level electrical characteristics and performances of standard PPTC products. All devices are UL recognized and TUV approved and have maximum fault current of 50A. They are available in 0402 to 2920 sizes while the hold current ranges from 100mA to 9A.

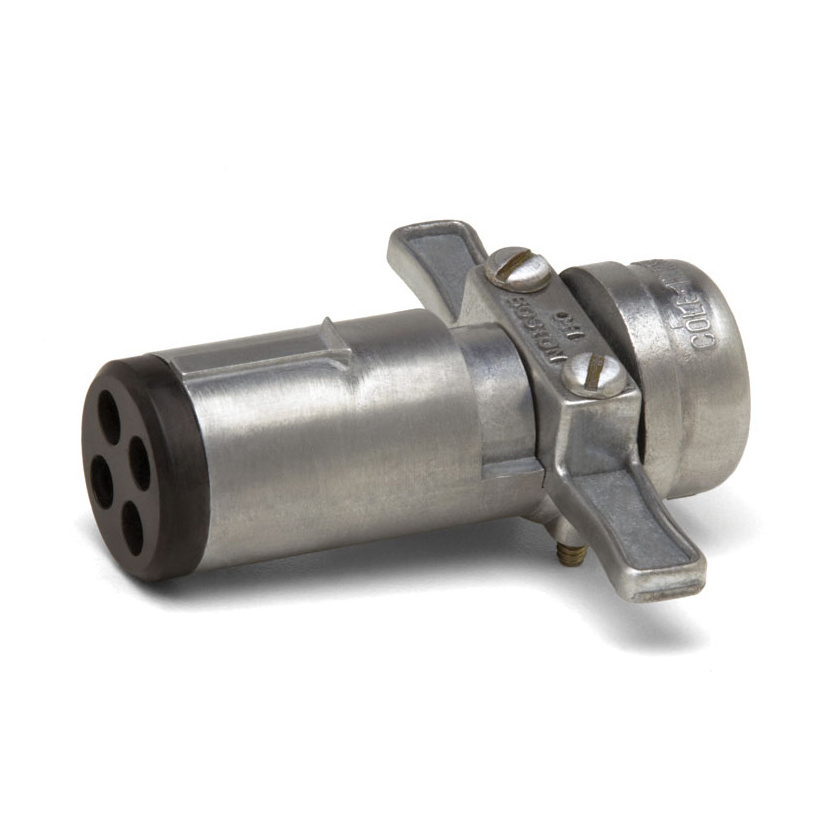

Normally used with a trailer where only limited functionality (taillights. brake lights) is needed. Ideal for boat trailers. or RVs towing a car on a flatbed trailer. Diecast metal housings. Screw terminals accept up to 12AWG wire. Replaceable interiors. Brass split-pin contacts are aligned to assure proper contact and minimal voltage drop. Spring-loaded socket doors. plug locks securely into the opening. Wiring codes are identified on the insulator. Two mounting holes on the flange 17/64"" (6.7mm) diameter. 2 15/16"" (74.6mm) on centers. Mount through 1 3/8"" (34.9mm) diameter hole. With special housing that protects terminals from roadsplash. See also Automotive Connectors such as 11134 and M-115

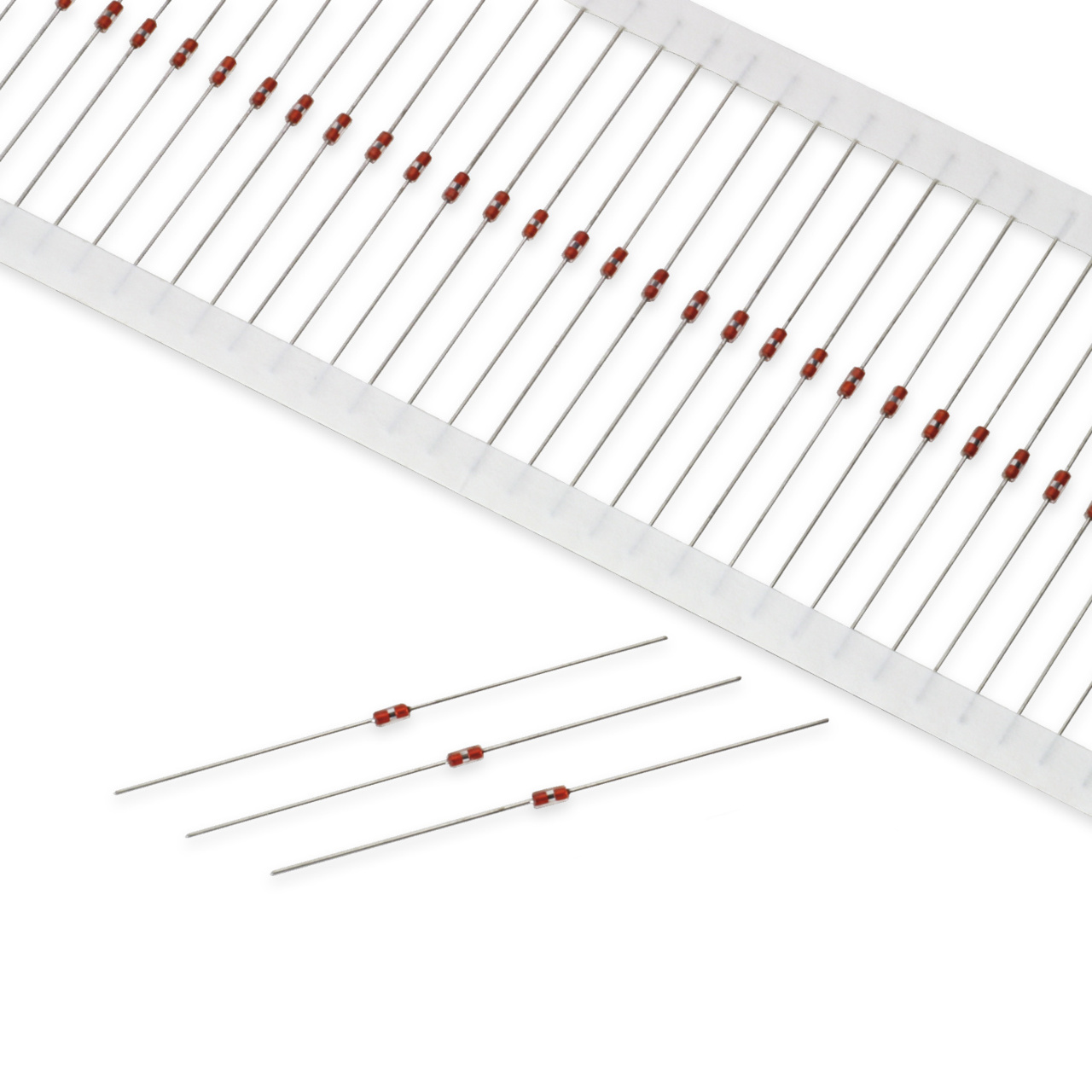

Littelfuse low cost glass encapsulated thermistors are manufactured using super stable NTC chips which are hermetically sealed in a glass (DO-35 diode style) package. The result is a device which exhibits excellent long term reliability and stability even when subjected to severe environmental or thermal conditions. Their uniform dimensions and axial lead configuration make them especially suitable for use with automatic insertion equipment. Options: Special lead forms Non-standard resistance values and tolerances Point matched at specified temperatures Tape and reel packaging

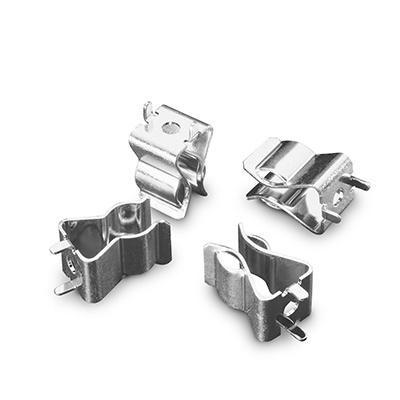

Compatible with 13/32" diameter fuses (Midget Type Fuse)

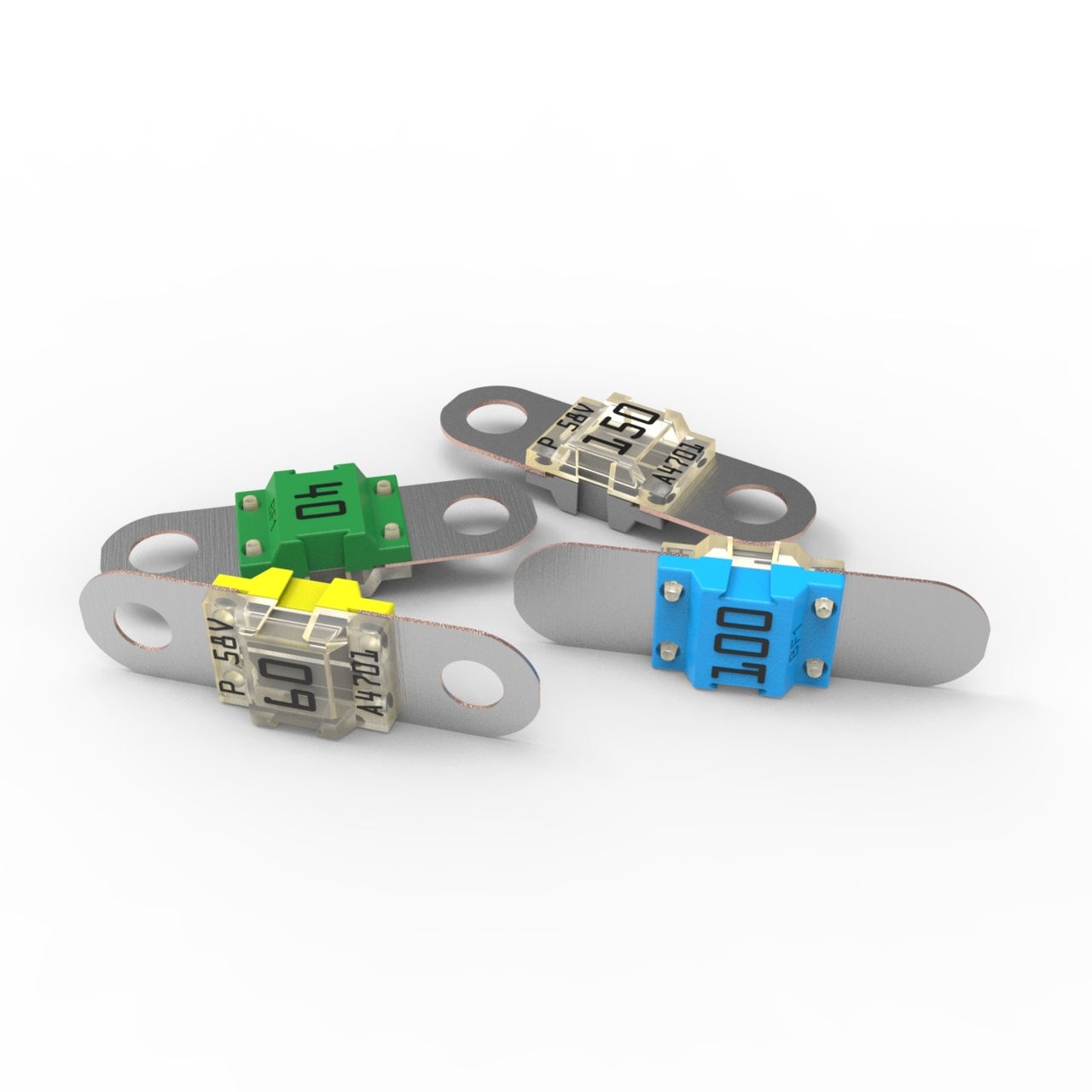

Fuse - BF1 58V w/o holes, 40A, 500 pc

Fuse - BF1 58V w/o holes, 50A, 500 pc

Fuse - BF1 58V w/o holes, 60A, 500 pc

Fuse - BF1 58V w/o holes, 150A, 500 pc

Fuse - BF1 58V w/o holes, 200A, 500 pc
