Product families from Lighting Science Group Corporation
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts from Lighting Science Group Corporation that are not part of a series
| Part Information | Pricing (lowest) | Temperature - Test | Height | Voltage - Forward (Vf) (Typ) | Lens Type | Size / Dimension Length | Size / Dimension Width | Type | Configuration | Wavelength | Luminous Flux (Typical) | Color | Lumens/Watt | Current - Test | CCT (K) | Current - Max | CRI (Color Rendering Index) (Typ) | Current - Test (Value {index}) | Current - Test (Value 2) | Current - Test (Value 1) | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Red) | Voltage - Forward (Vf) (Typ) (Green) | Voltage - Forward (Vf) (Typ) (Blue) | Wavelength Colors | Wavelength (Green) | Wavelength (Blue) | Wavelength (Red) | Luminous Flux Colors | Luminous Flux (Green) | Luminous Flux (Blue) | Luminous Flux (Red) | Current - Max Colors | Current - Max (Green) | Current - Max (Red) | Current - Max (Blue) | Optical Pattern | Lens Width | Lens Length | Lens Transparency | Viewing Angle | Number of LEDs | Material | Mounting Type | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lighting Science Group Corporation LED MOD BL-2000 BLUE SQUARE SMD | Sign in to see pricing | 25 °C | 2.54 mm | 10.5 V | Domed | 14.48 mm | 14.48 mm | LED Module | Square | 470 nm | 22 lm | Blue | 5 lm/W | 420 mA | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
Lighting Science Group Corporation LED MOD BL-2000 WHT SQ 4300K SMD | Sign in to see pricing | 25 °C | 2.54 mm | 24 VDC | Domed | 14.48 mm | 14.48 mm | LED Module | Square | — | 100 lm | Neutral, White | 20 lm/W | 210 mA | 4300 K | 210 mA | 90 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Lighting Science Group Corporation LED MOD BL-2000 RGB SQUARE SMD | Sign in to see pricing | 25 °C | 2.54 mm | — | Domed | 14.48 mm | 14.48 mm | LED Module | Square | — | — | Blue (RGB), Green, Red | — | 210 mA, 630 mA | — | — | — | 210 mA, 630 mA | 210 mA | 630 mA | Blue, Green, Red | 3 V | 4 V | 4 V | Blue, Green, Red | 523 nm | 470 nm | 630 nm | Blue, Green, Red | 31 lm | 4.2 lm | 59 lm | — | — | — | — | — | — | — | — | — | — | — | — | — |
Lighting Science Group Corporation LED MOD BL-2000 RGB SQUARE SMD | Sign in to see pricing | 25 °C | 2.54 mm | — | Domed | 14.48 mm | 14.48 mm | LED Module | Square | — | — | Blue (RGB), Green, Red | — | 210 mA | — | — | — | — | — | — | Blue, Green, Red | 4.8 V | 7 V | 7 V | Blue, Green, Red | 525 nm | 470 nm | 624 nm | Blue, Green, Red | 26 lm | 8 lm | 21 lm | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Lighting Science Group Corporation LED MOD BL-3000 AMBER RECT SMD | Sign in to see pricing | 25 °C | 2.29 mm | 6.69 V | Domed | 1.25 in | 26.67 mm | LED Module | Rectangle | 587 nm | 1938 lm | Amber | 19 lm/W | 15.5 A | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Lighting Science Group Corporation LED MOD BL-3000 GREEN RECT SMD | Sign in to see pricing | 25 °C | 2.29 mm | 10 V | Domed | 1.25 in | 26.67 mm | LED Module | Rectangle | 525 nm | 348 lm | Green | 15 lm/W | 2.34 A | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Lighting Science Group Corporation LED MOD BL-3000 WHT RECT 5000K | Sign in to see pricing | 25 °C | 2.29 mm | 10.5 V | Domed | 1.25 in | 26.67 mm | LED Module | Rectangle | — | 567 lm | Cool, White | 23 lm/W | 2.34 A | 5000 K | 2.34 A | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

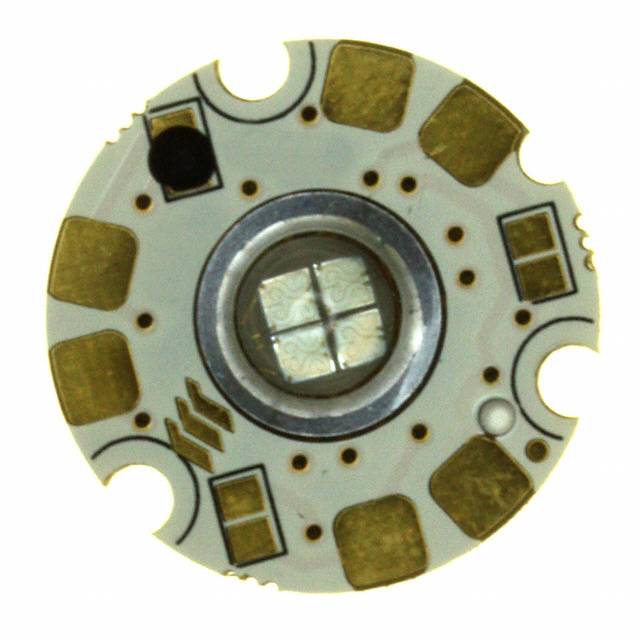

 Lighting Science Group Corporation LED MOD BL-4000 RGB STARBOARD | Sign in to see pricing | — | — | — | Domed | — | — | LED Module | Starboard | — | — | Blue (RGB), Green, Red | — | 350 mA | — | — | — | — | — | — | — | — | — | — | Blue, Green, Red | 530 nm | 465 nm | 624 nm | — | — | — | — | Blue, Green, Red | 400 mA | 450 mA | 400 mA | — | — | — | — | — | — | — | — | — |
 Lighting Science Group Corporation LENS CLEAR 70DEG WIDE ADHESIVE | Sign in to see pricing | — | — | — | — | — | — | Lens with Integrated Mount | — | — | — | Clear | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Wide | 16.04 mm | 16.04 mm | Diffused | 70 ° | 7 | Acrylic | Adhesive | Cluster Top, Round |
 Lighting Science Group Corporation LENS CLEAR 60DEG WIDE ADHESIVE | Sign in to see pricing | — | — | — | — | — | — | Lens with Integrated Mount | — | — | — | Clear | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Wide | 28.13 mm | 25.95 mm | Diffused | 60 ° | 39 | Polycarbonate | Adhesive | Cluster Top, Round |
