Product families from KinnexA
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from KinnexA that are not part of a series
| Part Information | Pricing (lowest) | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Number of Ports | Contact Finish | LED Color | Number of Positions | Connector Type | Number of Contacts | Orientation Angle | Orientation Direction | Mounting Type | Housing Material | Shielding | Tab Direction | Number of Rows | Contact Finish Thickness | Applications | Height Above Board | Shield Material | Number of Cores per Jack | Contact Finish Thickness (string set options) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

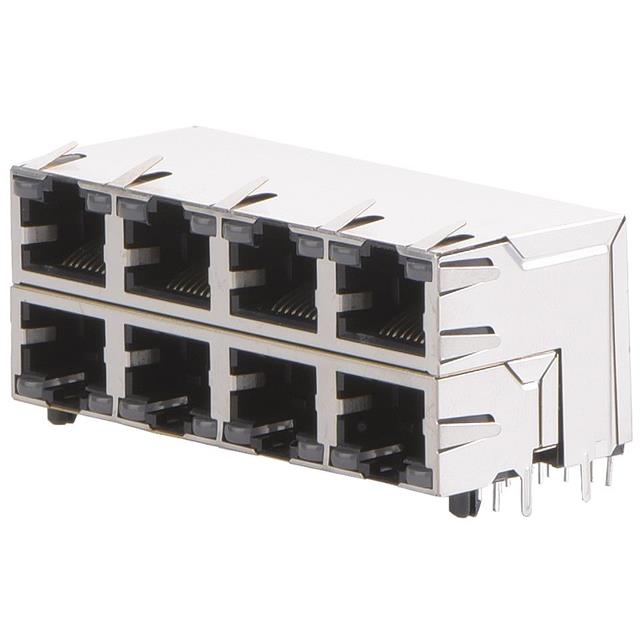

 KinnexA CONN MOD JACK 8PORT 8P8C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 8 | Gold | Yellow - Green | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | EMI Finger, Shielded | Down, Up | 2 | — | — | — | — | — | — |
 KinnexA CONN MOD JACK 8PORT 8P8C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 8 | Gold | Green - Yellow | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | EMI Finger, Shielded | Down, Up | 2 | 6 µin | — | — | — | — | — |

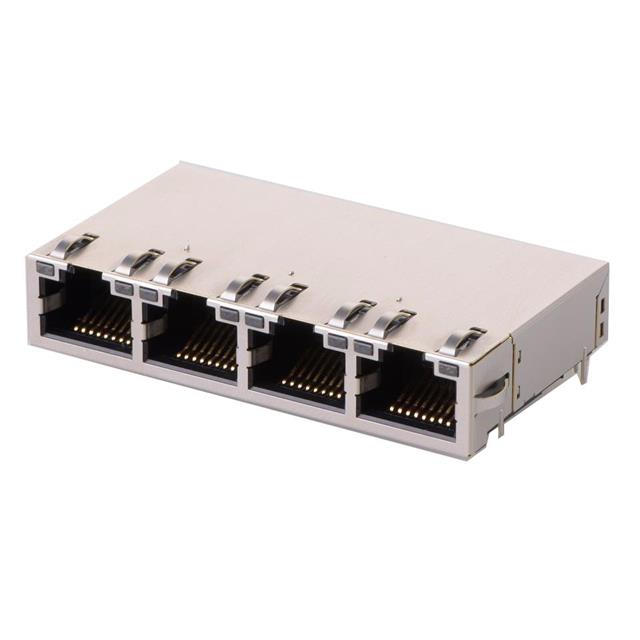

 KinnexA CONN JACK 4-PORT 1G BASE-T PCB | Sign in to see pricing | Phosphor Bronze | 0 °C | 70 °C | Solder | 4 | Gold | Green, Yellow - Green | — | RJ45 | — | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | EMI Finger, Shielded | Up | 1 | 50 µin | 1G Base-T, AutoMDIX | 0.456 in | Copper Alloy | 8 | — |

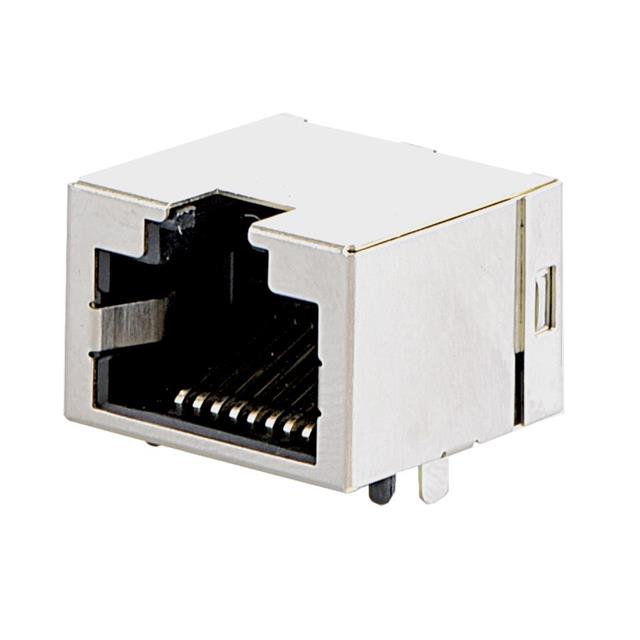

 KinnexA CONN MOD JACK 8P8C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 1 | Gold | Green - Yellow | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | EMI Finger, Shielded | Down | 1 | 50 µin | — | — | — | — | — |
 KinnexA CONN MOD JACK 8P8C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 2 | Gold | Does Not Contain LED | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | Shielded | Down | 1 | 0, Flash | — | — | — | — | Flash |

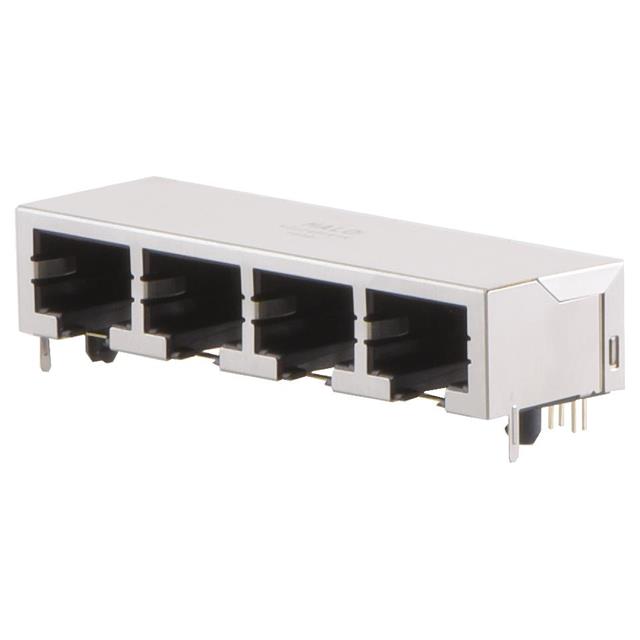

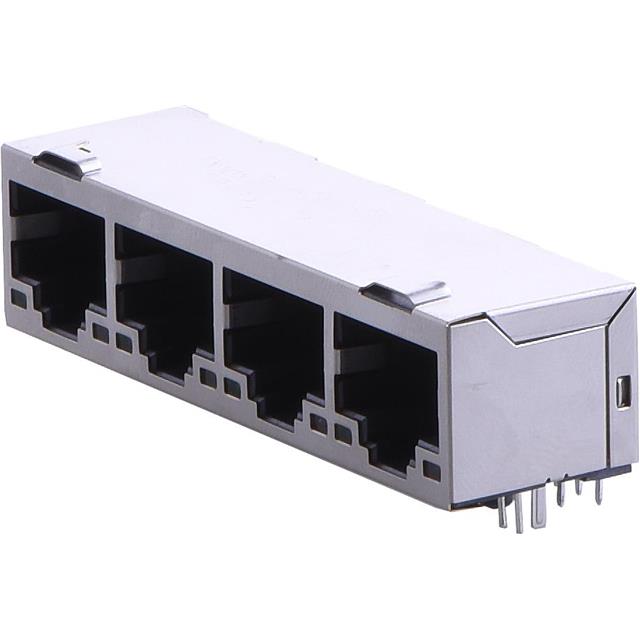

 KinnexA CONN MOD JACK 8P8C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 4 | Gold | Green, Yellow - Green | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | Shielded | Down | 1 | 15 µin | — | — | — | — | — |
 KinnexA CONN MOD JACK 10P10C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 4 | Gold | Does Not Contain LED | 10 | Jack, RJ50 | 10 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | Shielded | Down | 1 | 30 µin | — | — | — | — | — |

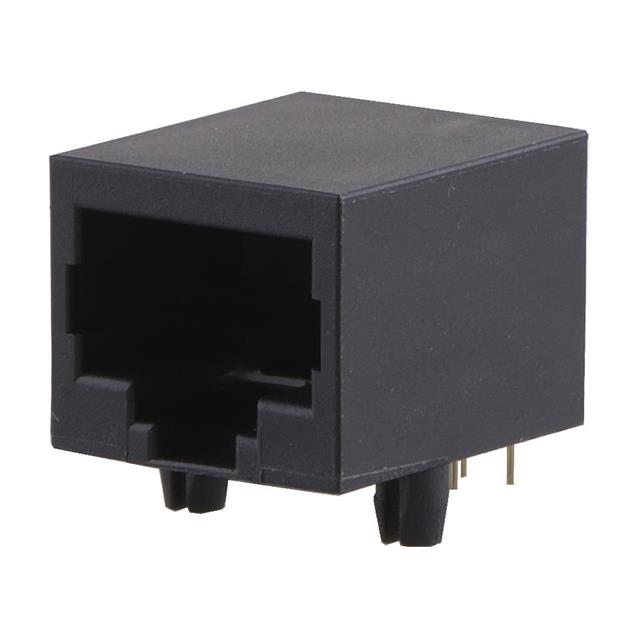

 KinnexA CONN MOD JACK 8P8C UNSHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 1 | Gold | Does Not Contain LED | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | PBT, Polybutylene Terephthalate | Unshielded | Down | 1 | 0, Flash | — | — | — | — | Flash |
KinnexA CONN MOD JACK 8P8C UNSHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 1 | Gold | Yellow - Green | 8 | Ethernet, Jack, RJ45 | 8 | 90 ° | Right | Panel Mount, Through Hole | PBT, Polybutylene Terephthalate | Unshielded | Down | 1 | 0, Flash | — | — | — | — | Flash |
 KinnexA CONN MOD JACK 6P6C SHLD | Sign in to see pricing | Phosphor Bronze | -40 °C | 85 °C | Solder | 1 | Gold | Does Not Contain LED | 6 | Jack, RJ11, RJ12, RJ14, RJ25 | 6 | 90 ° | Right | Panel Mount, Through Hole | Thermoplastic | Shielded | Up | 1 | 6 µin | — | — | — | — | — |
