Product families from JATTA
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from JATTA that are not part of a series
| Part Information | Pricing (lowest) | Package Name | Mounting Type | Voltage - Forward (Vf) (Max) | Capacitance | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Current - Reverse Leakage | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Diode Type | Voltage - Peak Reverse (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JATTA BRIDGE RECT 1P 600V 1.0A DO-41 | Sign in to see pricing | DO-41 | Through Hole | 1.1 V | 15 pF | Standard | 50 V | 1 A | 175 °C | -65 °C | 200 mA, 500 ns | Standard Recovery | 200 mA, 200 mA | 500 ns | 5 µA | Axial, DO-204AL, DO-41 | — | — | — | — |

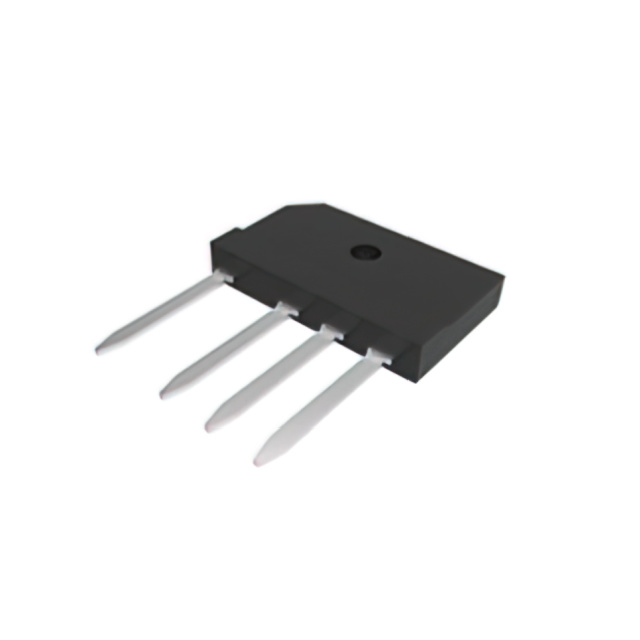

 JATTA BRIDGE RECT 1P 600V 20.0A GBJ | Sign in to see pricing | GBJ | Through Hole | 1.05 V | — | Standard | — | 20 A | — | — | — | — | — | — | 10 µA | 4-SIP, GBJ | -55 °C | 150 °C | Single Phase | 50 V |

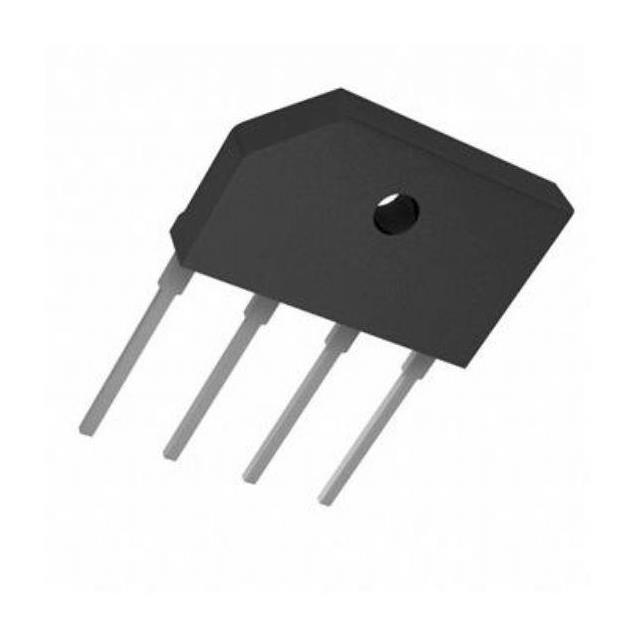

 JATTA BRIDGE RECT 1P 600V 6.0A KBJ | Sign in to see pricing | KBJ | Through Hole | 1 V | — | Standard | — | 6 A | — | — | — | — | — | — | 5 µA | 4-SIP, KBJ | -55 °C | 150 °C | Single Phase | 50 V |

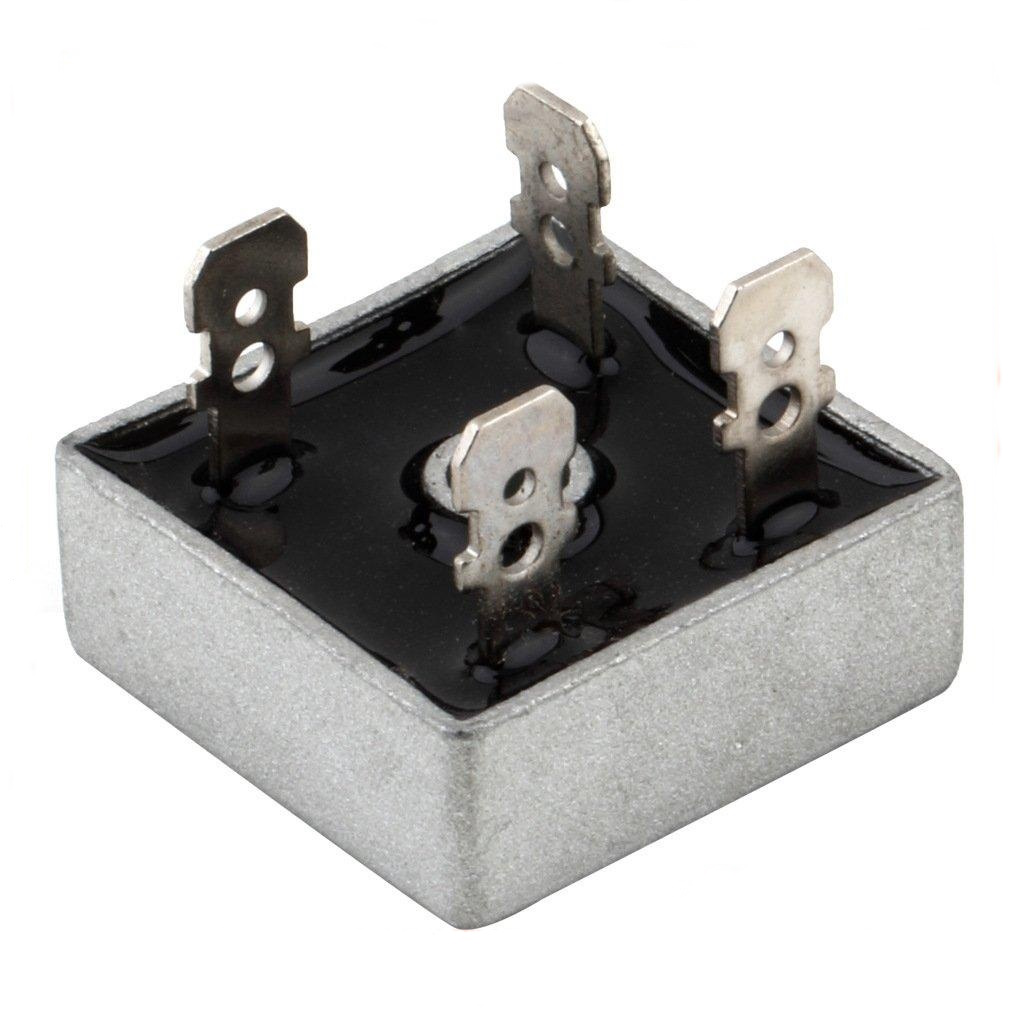

 JATTA BRIDGE RECT 1P 600V 15.0A KBPC-1 | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 JATTA BRIDGE RECT 1P 600V 50.0A KBPC-5 | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

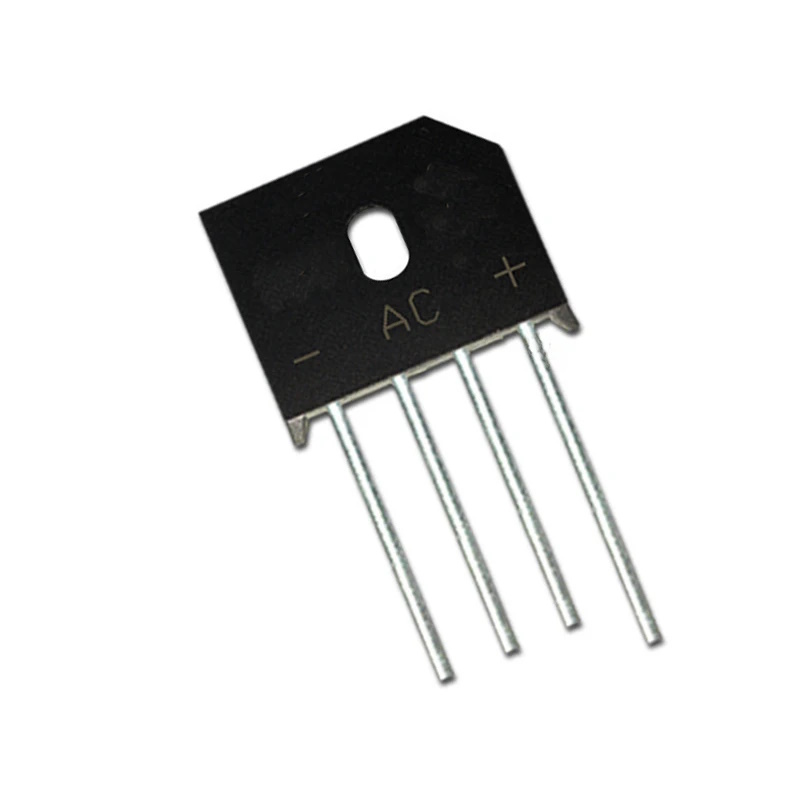

 JATTA BRIDGE RECT 1P 600V 8.0A KBJ | Sign in to see pricing | KBU | Through Hole | 1.1 V | — | Standard | — | 8 A | — | — | — | — | — | — | 10 µA | 4-SIP, KBU | -65 °C | 150 °C | Single Phase | 50 V |

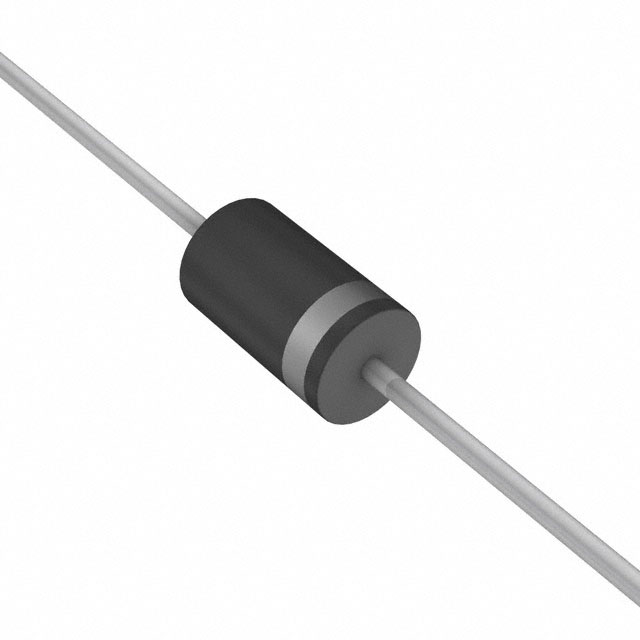

JATTA BRIDGE RECT 1P 600V 2.0A DO-15 | Sign in to see pricing | DO-15 | Through Hole | 1 V | 20 pF | Standard | 50 V | 2 A | 175 °C | -65 °C | 200 mA, 500 ns | Standard Recovery | 200 mA, 200 mA | 500 ns | 5 µA | Axial, DO-15, DO-204AC | — | — | — | — |
 JATTA BRIDGE RECT 1P 600V 6.0A RS-6 | Sign in to see pricing | RS-6 | Through Hole | 1 V | — | Standard | — | 6 A | — | — | — | — | — | — | 10 µA | 4-SIP, RS-6 | -65 °C | 125 °C | Single Phase | 50 V |

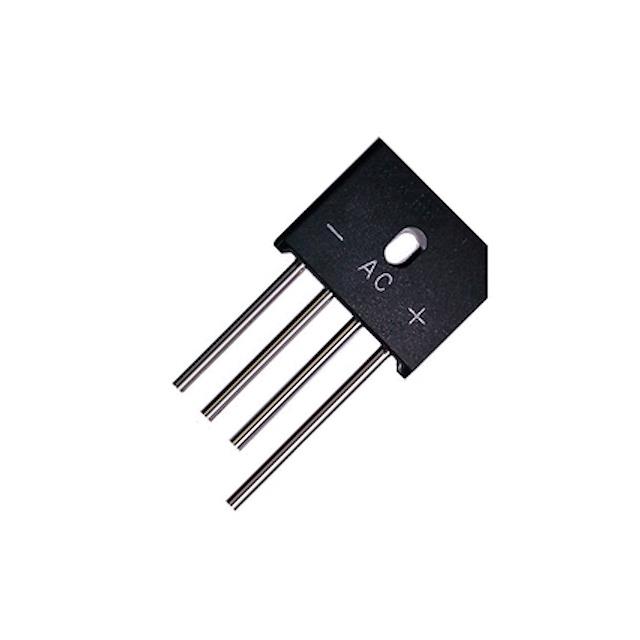

JATTA BRIDGE RECT 1P 600V 8.0A RS-8 | Sign in to see pricing | RS-8 | Through Hole | 1.1 V, 1.1 V | — | Standard | — | 8 A | — | — | — | — | — | — | 10 µA | 4-SIP, RS-6 | -65 °C | 125 °C | Single Phase | 50 V |

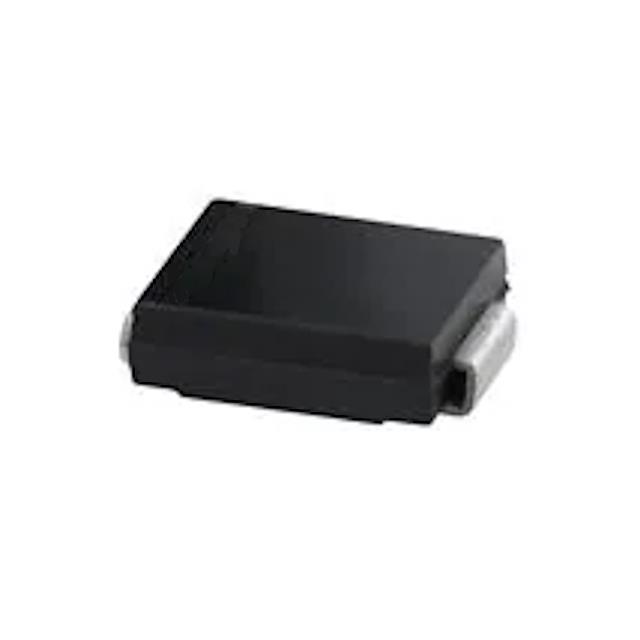

 JATTA BRIDGE RECT 1P 600V 2.0A DO-214A | Sign in to see pricing | DO-214AC (SMA) | Surface Mount | 1.1 V | 30 pF | Standard | 50 V | 2 A | 150 °C | -65 °C | 200 mA, 500 ns | Standard Recovery | 200 mA, 200 mA | 500 ns | 5 µA | DO-214AC, SMA | — | — | — | — |
