Product families from Isentek Inc
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Isentek Inc that are not part of a series
| Part Information | Pricing (lowest) | For Measuring | Technology | Electrical Rotation Angle (Maximum) | Mechanical Rotation Angle (Minimum) | Electrical Rotation Angle (Minimum) | Mechanical Rotation Angle (Maximum) | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Output Signal | Output | Termination Style | Package / Case | Package Name | Package Length (8-SO) | Package Length (8-DFN) | Package Width (8-DFN) | Package Width (8-SO) | Resistance | Voltage - Supply | Package Width | Package Length | Bandwidth | Axis | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Output Type | Resolution | Current - Supply (Max) | Sensing Range (Min) | Sensing Range (Max) | Features | Sensing Range (X,Y) Maximum | Sensing Range (X,Y) Minimum | Sensing Range (Z) | Sensing Range (Trip) | Sensing Range (Release) | Test Condition (Min) | Test Condition (Max) | Function | Polarization | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Isentek Inc 14-BIT DIGITAL 2D AMR ANGLE SENS | Sign in to see pricing | Angle, Rotary | Magnetoresistive | 180 ° | 0 ° | 0 ° | 180 ° | Surface Mount | -40 °C | 85 °C | Cosine, Sine | Analog | Solder Pad | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

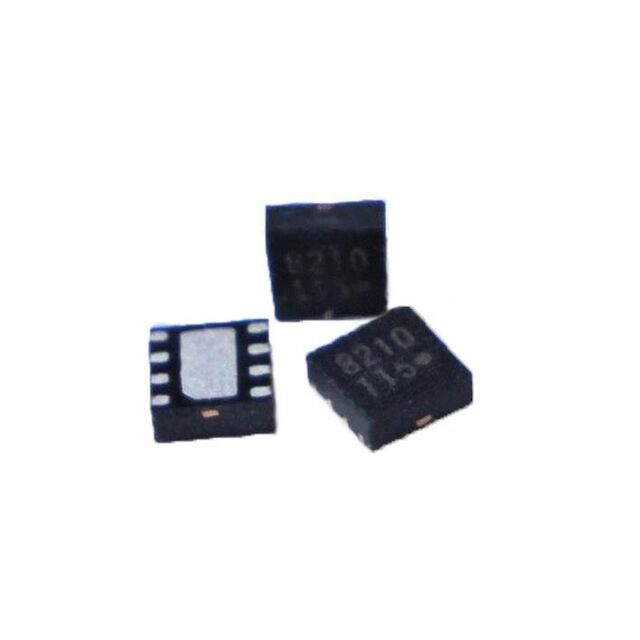

 Isentek Inc 3D ANGLE SENSOR | Sign in to see pricing | Angle | Magnetoresistive | 180 ° | 0 ° | 0 ° | 180 ° | Surface Mount | -40 °C | 150 °C | Cosine, Sine | Analog | Gull Wing | 8-DFN, 8-SO | 8-DFN, 8-SO | 4.9 mm | 2 mm | 2 mm | 6 mm | 3.2 kOhm | 5 VDC | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

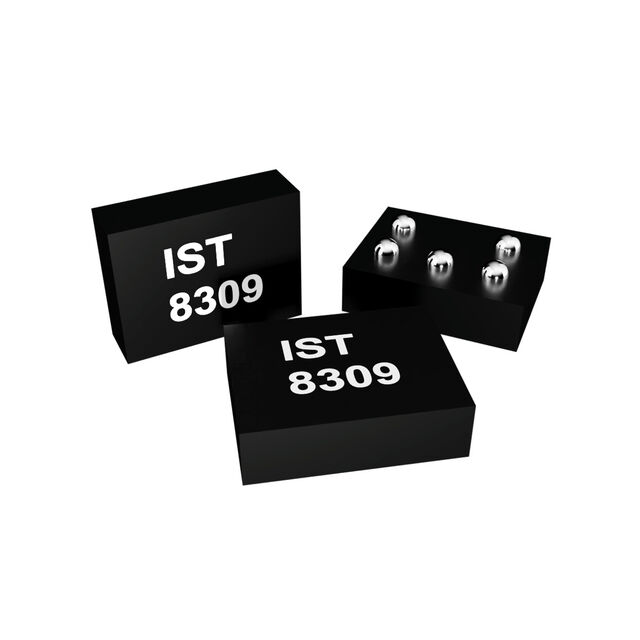

 Isentek Inc 3D MAGNETOMETER FOR TDK IMU | Sign in to see pricing | — | Magnetoresistive | — | — | — | — | Surface Mount | -20 °C | 85 °C | — | — | — | 4-WLCSP | 4-WLCSP | — | — | — | — | — | — | 0.8 mm | 0.8 mm | 200 Hz | X, Y, Z | 1.65 V | 1.95 V | I2C | 8 b | 1.2 mA | -3 mT | 3 mT | Sleep Mode, Temperature Compensated | — | — | — | — | — | — | — | — | — | — |

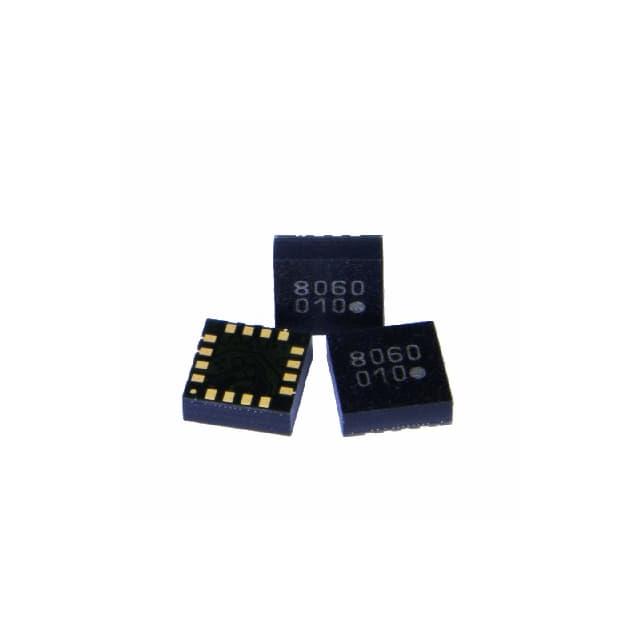

 Isentek Inc HIGH SENSITIVITY 3D MAGNETOMETER | Sign in to see pricing | — | Magnetoresistive | — | — | — | — | Surface Mount | -40 °C | 125 °C | — | — | — | 16-LGA | 16-LGA | — | — | — | — | — | — | 3 mm | 3 mm | 200 Hz | X, Y, Z | 2.4 V | 3.6 V | I2C | 14 b | 520 µA | -0.5 mT | 0.5 mT | Sleep Mode, Temperature Compensated | — | — | — | — | — | — | — | — | — | — |

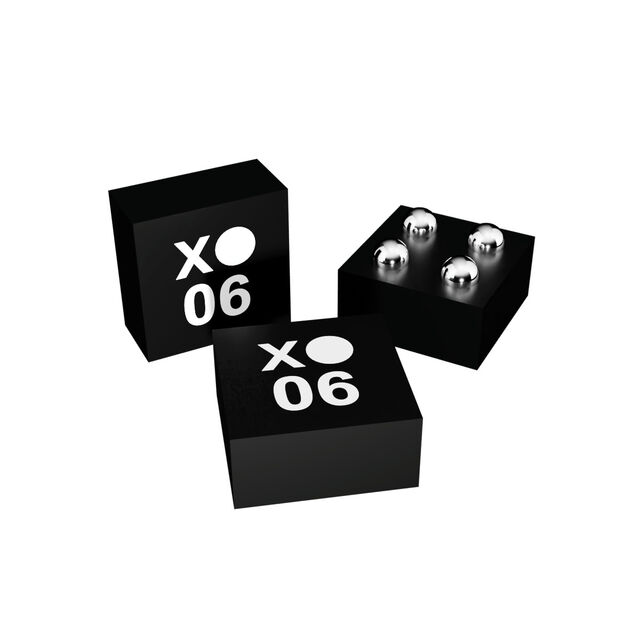

 Isentek Inc 3D MAGNETIC SENSOR | Sign in to see pricing | — | Hall Effect | — | — | — | — | Surface Mount | -30 °C | 85 °C | — | — | — | 5-BGA, WLCSP | 5-WLCSP | — | — | — | — | — | — | 0.99 mm | 1.29 mm | 1 kHz | X, Y, Z | 1.7 V | 3.6 V | I2C | 16 b | 50 µA | 30 mT | 200 mT | Programmable, Sleep Mode, Temperature Compensated | — | — | — | — | — | — | — | — | — | — |

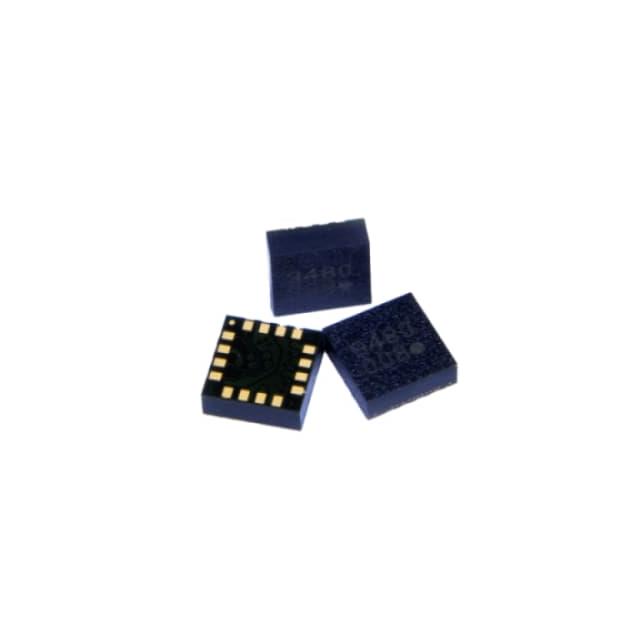

 Isentek Inc 3D MAGNETOMETER FOR DRONES | Sign in to see pricing | — | Magnetoresistive | — | — | — | — | Surface Mount | -40 °C | 85 °C | — | — | — | 16-LGA | 16-LGA | — | — | — | — | — | — | 3 mm | 3 mm | 200 Hz | X, Y, Z | 1.72 V | 3.6 V | I2C | 16 b | 320 µA | — | — | Sleep Mode, Temperature Compensated | 1.6 mT | -1.6 mT | 2.5 mT | — | — | — | — | — | — | — |

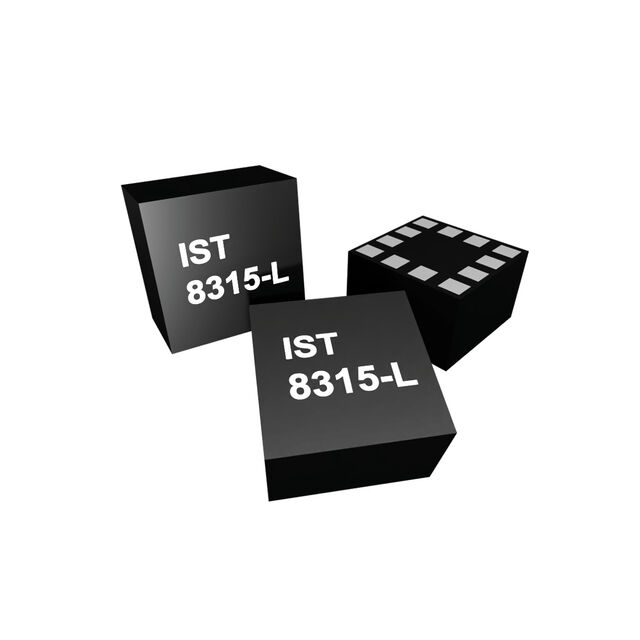

 Isentek Inc PRECISION 3D MAGNETOMETER | Sign in to see pricing | — | Magnetoresistive | — | — | — | — | Surface Mount | -40 °C | 85 °C | — | — | — | 12-LGA | 12-LGA | — | — | — | — | — | — | 1.6 mm | 1.6 mm | 1 kHz | X, Y, Z | 2.4 V | 3.6 V | I2C | 14 b | 400 µA | -1000 µT | 1 mT | Sleep Mode, Temperature Compensated | — | — | — | — | — | — | — | — | — | — |
 Isentek Inc 1KHZ OMNIPOLAR TMR SWITCH | Sign in to see pricing | — | Magnetic, Magnetoresistive, TMR (Tunneling Magnetoresistive) | — | — | — | — | Surface Mount | -40 °C | 125 °C | — | — | — | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | — | — | — | — | — | — | — | — | — | — | 2.4 V | 5.5 V | Open Drain | — | 1.8 µA | — | — | — | — | — | — | 1.4 mT | 1 mT | -40 °C | 125 °C | Omnipolar Switch | North Pole, South Pole | — |
 Isentek Inc NANOPOWER TMR SWITCH | Sign in to see pricing | — | Magnetic, Magnetoresistive, TMR (Tunneling Magnetoresistive) | — | — | — | — | Surface Mount | -40 °C | 85 °C | — | — | — | 4-XFLGA | 4-LGA | — | — | — | — | — | — | 1.45 mm | 1.45 mm | — | — | 1 V | 3.6 V | Push-Pull | — | 20 nA | — | — | Sleep Mode | — | — | — | 0.7 mT | 0.3 mT | -40 °C | 85 °C | Latch, Omnipolar Switch | North Pole, South Pole | 20 mA |
 Isentek Inc NANOPOWER TMR SWITCH | Sign in to see pricing | — | Magnetic, Magnetoresistive, TMR (Tunneling Magnetoresistive) | — | — | — | — | Surface Mount | -40 °C | 85 °C | — | — | — | 4-XFLGA | 4-LGA | — | — | — | — | — | — | 1.45 mm | 1.45 mm | — | — | 1 V | 3.6 V | Push-Pull | — | 33 µA | — | — | Sleep Mode | — | — | — | 0.7 mT | 0.3 mT | -40 °C | 85 °C | Latch, Omnipolar Switch | North Pole, South Pole | 20 mA |
