Product families from GES High Voltage
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from GES High Voltage that are not part of a series
| Part Information | Pricing (lowest) | Mounting Type | Position Types | Number of Positions | Orientation | Shielding | Cable Opening | Operating Temperature (Min) | Operating Temperature (Max) | Fastening Type | Material Flammability Rating | Shell Finish | Contact Finish - Mating | Mounting Feature | Color | Termination | Current Rating | Features | Shell Material | Voltage Rating | Ingress Protection Description | Ingress Protection IP Rating | Primary Material | Connector Type | Ingress Protection | Contact Type | Contact Material | Termination Finish | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Contact Finish | Contact Size | Type | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

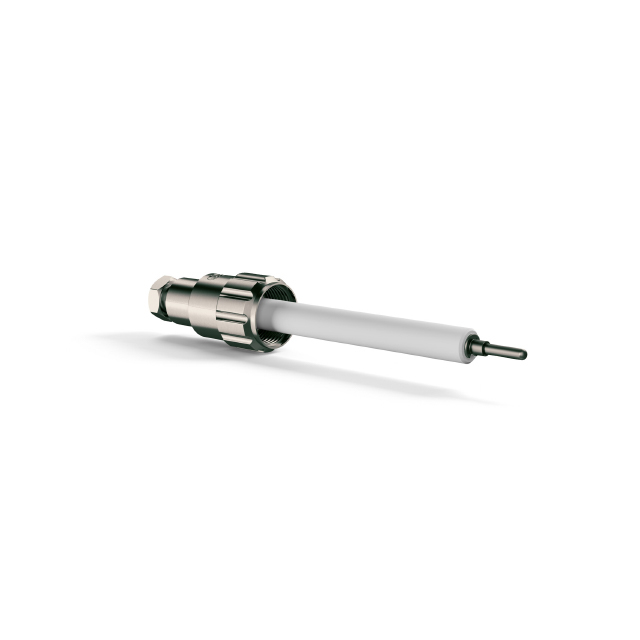

 GES High Voltage S30-PC, PLUG, 30 KVDC, 1P | Sign in to see pricing | Cable Mount, Free Hanging (In-Line) | Coax | 1 | N (Normal) | Shielded | 0.256 in | -30 °C | 80 °C | Threaded | UL94 V-0 | Nickel | Silver | Rear Side Nut | Silver, White | Solder | 30 A | High Voltage Connector | Brass | 30000 VDC | Dust Protected | IP50 | Metal | Male Pins, Plug | — | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage S30-RP, RECEPT., 30 KVDC, 1P | Sign in to see pricing | Panel Mount | — | 1 | N (Normal) | Unshielded | — | -30 °C | 80 °C | Threaded | UL94 V-0 | Nickel | Silver | Flange | Silver, White | Screw or Solder | 30 A | High Voltage Connector | Brass | 30000 VDC | Dust Protected | IP50 | Metal | Female Pins, Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage S31-PC, PLUG, 30 KVDC, 1P | Sign in to see pricing | Cable Mount, Free Hanging (In-Line) | Coax | 1 | N (Normal) | Shielded | 0.256 in | -30 °C | 80 °C | Threaded | UL94 V-0 | Nickel | Silver | Rear Side Nut | Silver, White | Solder | 30 A | High Voltage Connector | Brass | 30000 VDC | Dust Protected | IP50 | Metal | Male Pins, Plug | — | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage S31-RP, RECEPT., 30 KVDC, 1P | Sign in to see pricing | Panel Mount | — | 1 | N (Normal) | Unshielded | — | -30 °C | 80 °C | Threaded | UL94 V-0 | Nickel | Silver | Bulkhead | Silver, White | Screw or Solder | 30 A | High Voltage Connector | Brass | 30000 VDC | Dust Protected | IP50 | Metal | Female Pins, Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |

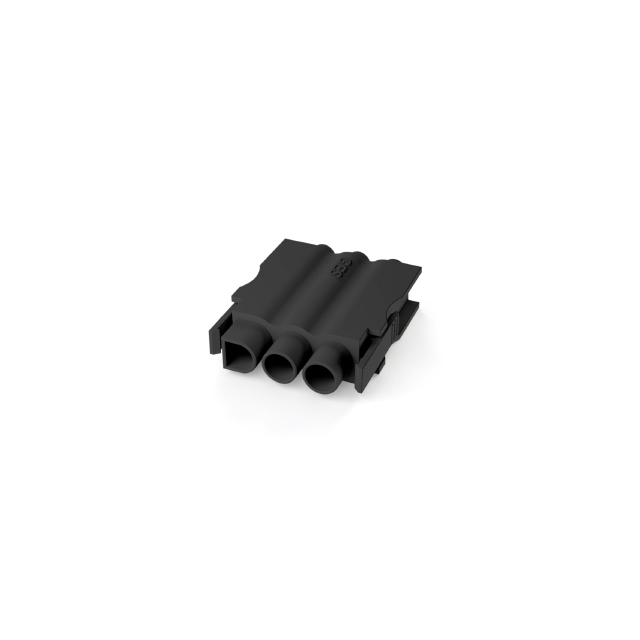

 GES High Voltage VPC3-PC, PLUG, 13 KVDC, 3P | Sign in to see pricing | Cable Mount, Free Hanging (In-Line) | — | 3 | Keyed | Unshielded | 0.157 in | -40 °C | 150 °C | Latch Lock, Snap-In | UL94 V-0 | — | Silver | — | Black | Crimp | 13 A | High Voltage Connector | Thermoplastic | 13000 VDC | — | — | Plastic | Male Pins, Plug | IP20 | — | — | — | — | — | — | — | — | — | — | — |

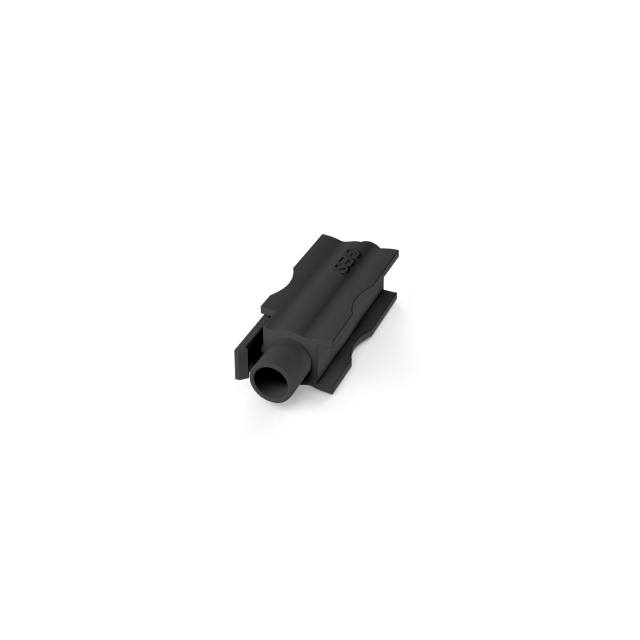

 GES High Voltage VPC3-RP, RECEPT., 13 KVDC, 3P | Sign in to see pricing | Panel Mount | — | 3 | Keyed | Unshielded | 0.157 in | -40 °C | 150 °C | Latch Holder, Snap In | UL94 V-0 | — | Silver | — | Black | Crimp | 13 A | High Voltage Connector | Thermoplastic | 13000 VDC | — | — | Plastic | Female Pins, Receptacle | IP20 | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage MCS605-PC, PLUG, 5 KVDC, 6P | Sign in to see pricing | Cable Mount, Free Hanging (In-Line) | — | 6 | Keyed | Shielded | 0.063 in | -30 °C | 80 °C | Threaded | UL94 V-0 | Nickel | Gold | Rear Side Nut | Silver | Crimp or Solder | 4.5 A | High Voltage Connector | Brass | 5000 V | Dust Tight, Waterproof | IP68 | Metal | Male Pins, Plug | — | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage MCS605-RP, RECEPT., 5 KVDC, 6P | Sign in to see pricing | Panel Mount | — | 6 | Keyed | Unshielded | 0.063 in | -30 °C | 80 °C | Threaded | UL94 V-0 | Nickel | Gold | Bulkhead | Silver | Crimp or Solder | 4.5 A | High Voltage Connector | Brass | 5000 V | Dust Tight, Waterproof | IP68 | Metal | Female Pins, Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage MC407-RP, RECEPT., 10 KVDC, 4P | Sign in to see pricing | Panel Mount | — | 4 | Keyed | Unshielded | 0.157 in | -30 °C | 80 °C | Threaded | UL94 HB | Nickel | Silver | Bulkhead, Flange | Silver, White | Crimp or Solder | 13 A | High Voltage Connector | Brass | 10000 V | Dust Tight, Water Resistant | IP61, IP65 | Metal | Female Pins, Receptacle | — | — | — | — | — | — | — | — | — | — | — | — |
 GES High Voltage PHV-0722F, FEMALE, 22-26 AWG, AU | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Socket | Brass | Gold | 0.38 mm² | 0.15 mm² | Gold | 0.7 mm | Machined, Signal | 25.5 AWG | 22 AWG | Crimp, Solder |
