Product families from EMI FILTER COMPANY
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from EMI FILTER COMPANY that are not part of a series
| Part Information | Pricing (lowest) | Type | Package / Case | Size / Dimension Length | Size / Dimension Diameter | Voltage - Rated | Temperature Coefficient | Current | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Capacitance | Tolerance (Positive) | Tolerance (Negative) | Insertion Loss | Thread Size (Min) | Thread Size (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EMI FILTER COMPANY CAP FEEDTHRU 10000PF 50V AXIAL | Sign in to see pricing | Feed Through | Axial, Bushing | 0.2 in | 0.105 in | 50 V | X7R | 5 A | 125 °C | -55 °C | Through Hole | 10000 pF | 100 % | 0 % | 35 dB | — | — |

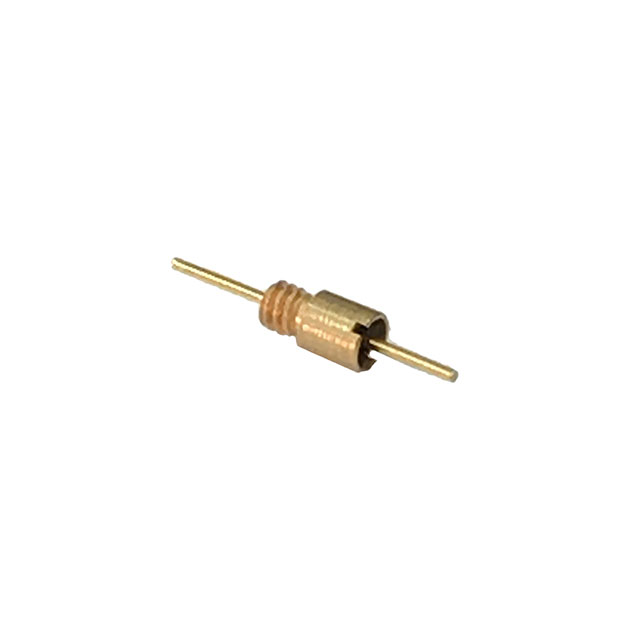

 EMI FILTER COMPANY FILTER, B2, C CIRC, 1500PF | Sign in to see pricing | Feed Through | Axial, Bushing | 0.2 in | 0.105 in | 100 VAC/DC | X7R | 5 A | 125 °C | -55 °C | Through Hole | 1500 pF | 100 % | 0 % | 23 dB | 2 mm | 56 mm |
EMI FILTER COMPANY CAP FEEDTHRU 5000PF 100V AXIAL | Sign in to see pricing | Feed Through | Axial, Bushing | 0.2 in | 0.105 in | 100 VAC/DC | X7R | 5 A | 125 °C | -55 °C | Through Hole | 5000 pF | 100 % | 0 % | 30 dB | — | — |
 EMI FILTER COMPANY FILTER, 4-40 MINI, 0PF, 200VDC | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 200 VDC | X7R | 10 A | 125 °C | -55 °C | Through Hole | 0 pF | 100 % | 0 % | — | — | — |
EMI FILTER COMPANY FILTER, 4-40 MINI, 10PF | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 200 VDC | X7R | 10 A | 125 °C | -55 °C | Through Hole | 10 pF | 100 % | 0 % | — | — | — |
EMI FILTER COMPANY FILTER, 4-40 MINI, 100PF | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 200 VDC | X7R | 10 A | 125 °C | -55 °C | Through Hole | 100 pF | 100 % | 0 % | 3 dB | — | — |

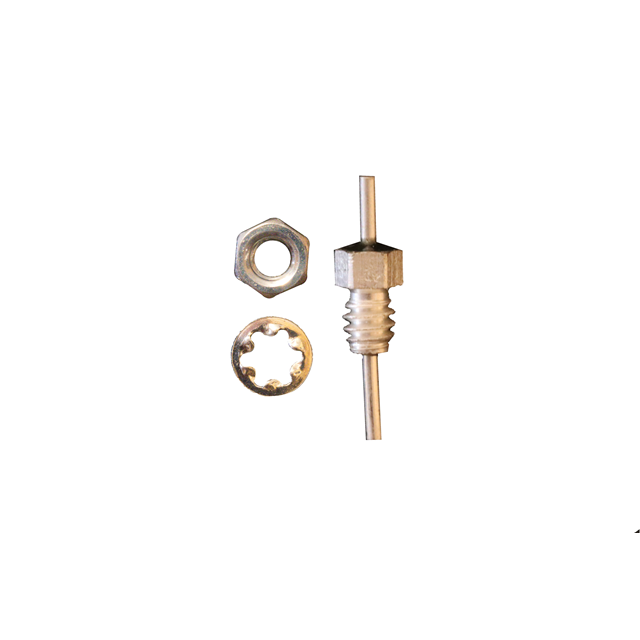

 EMI FILTER COMPANY CAP FEEDTHRU, 1000PF, 200VDC | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 200 VDC | X7R | 10 A | 125 °C | -55 °C | Through Hole | 1000 pF | 100 % | 0 % | 20 dB | 4 mm | 40 mm |
 EMI FILTER COMPANY CAP FEEDTHRU 10000PF 100V AXIAL | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 100 VAC/DC | X7R | 10 A | 125 °C | -55 °C | Through Hole | 10000 pF | 100 % | 0 % | 35 dB | — | — |

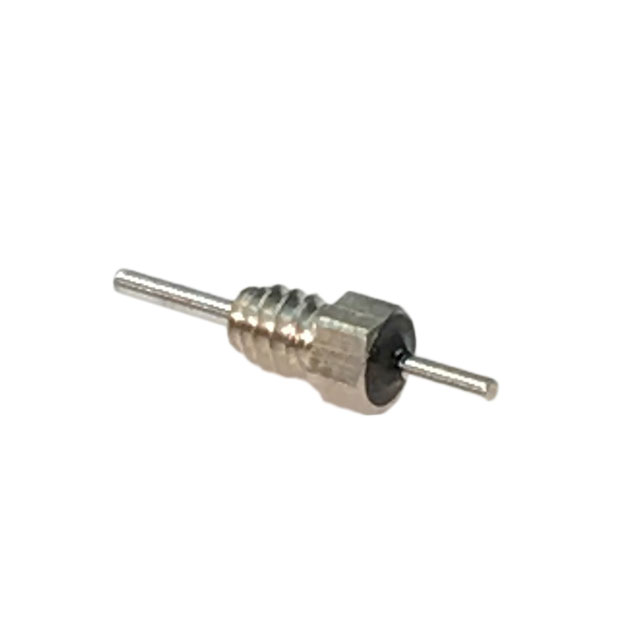

 EMI FILTER COMPANY CAP FEEDTHRU, 15,000PF, 100VDC | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 100 VAC/DC | X7R | 10 A | 125 °C | -55 °C | Through Hole | 0.015 µF | 100 % | 0 % | 35 dB | 4 mm | 40 mm |
EMI FILTER COMPANY FILTER, 4-40 MINI, 27,000PF | Sign in to see pricing | Feed Through | Axial, Bushing | 0.244 in | 0.125 in | 50 V | X7R | 10 A | 125 °C | -55 °C | Through Hole | 0.027 µF | 100 % | 0 % | 42 dB | — | — |
