Product families from Edgelight LLC
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| LED COBs, Engines, Modules, Strips | 4 | Active |
Parts from Edgelight LLC that are not part of a series
| Part Information | Pricing (lowest) | Voltage - Input (AC) Maximum | Voltage - Input (AC) Minimum | Form | Voltage - Output | Size / Dimension Width | Size / Dimension Height | Size / Dimension Length | Efficiency | Operating Temperature (Max) | Operating Temperature (Min) | Region Utilized | Power (Watts) | Input Type | Polarization | Input Connector | Applications | Approval Agency | Current - Output (Max) | Voltage - Input (Min) | Standard Number | Voltage - Isolation | Number of Outputs | Type | Features | Ratings | Dimming | Topology | Termination Style | Voltage - Input (Max) | Mounting Type | Output Connector | Output Connector O.D. | Output Connector I.D. | No Load Power Consumption (Max) | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Edgelight LLC AC/DC DESKTOP ADAPTER 12V 36W | Sign in to see pricing | 240 VAC | 100 VAC | Desktop (Class I) | 12 V | 1.75 in | 1.5 in | 95.25 mm | 88 % | 50 °C | -20 °C | International | 36 W | Cord (Included) | Positive Center | IEC 320-C14 | ITE (Commercial) | CB, CE, cULus, UL | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

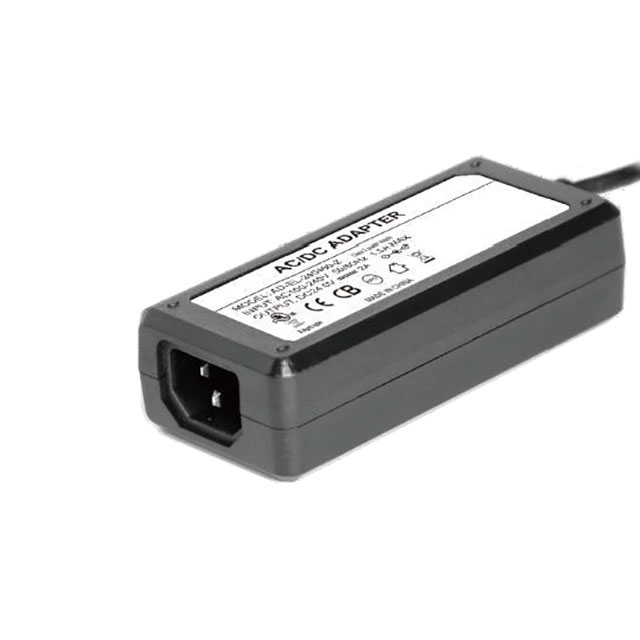

 Edgelight LLC AC/DC DESKTOP ADAPTER 12V 48W | Sign in to see pricing | 240 VAC | 100 VAC | Desktop (Class I) | 12 V | 2 in | 1.5 in | 4.75 in | 88 % | 50 °C | -20 °C | International | 48 W | Cord (Included) | Positive Center | IEC 320-C14 | ITE (Commercial) | CB, CE, cULus, UL | 4 A | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

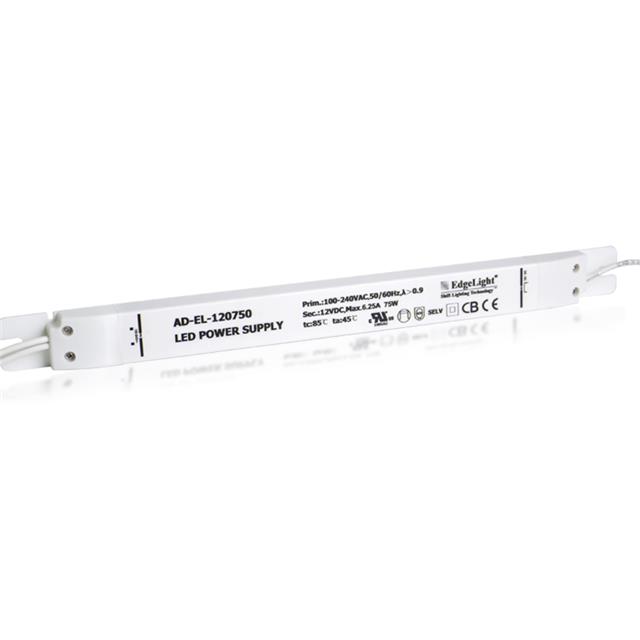

 Edgelight LLC LED DRIVER 12 VDC 75W | Sign in to see pricing | — | — | — | 12 V | 1.18 in | 0.79 in | 14.84 in | 92 % | 50 °C | -20 °C | — | 75 W | — | — | — | — | CB, CCC, CE, cULus, KC, PSE, TUV | 6.25 A | 100 VAC | UL E489262 | 3 kV | 1 | Constant Current | OCP, SCP | IP20 | Analog | AC DC Converter | Wire Leads | 240 V | Chassis Mount | — | — | — | — | — |
 Edgelight LLC AC/DC DESKTOP ADAPTER 12V 120W | Sign in to see pricing | 240 VAC | 100 VAC | Desktop (Class I) | 12 V | 2.83 in | 1.3 in | 6.75 in | 88 % | 50 °C | -20 °C | International | 120 W | Cord (Sold Separately) | — | IEC 320-C14 | ITE (Commercial) | CB, CE, cULus | 10 A | — | 60950-1 | — | — | — | — | — | — | — | — | — | — | Barrel Jack | 5.5 mm | 2.5 mm | 800 mW | — |
 Edgelight LLC AC/DC DESKTOP ADAPTER 12V 60W | Sign in to see pricing | 240 VAC | 100 VAC | Desktop (Class I) | 12 V | 2.36 in | 1.26 in | 5.51 in | 85 % | 50 °C | -20 °C | International | 60 W | Cord (Sold Separately) | Positive Center | IEC 320-C14 | ITE (Commercial) | CB, CE, cULus | 5 A | — | 60950-1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 100 mW |

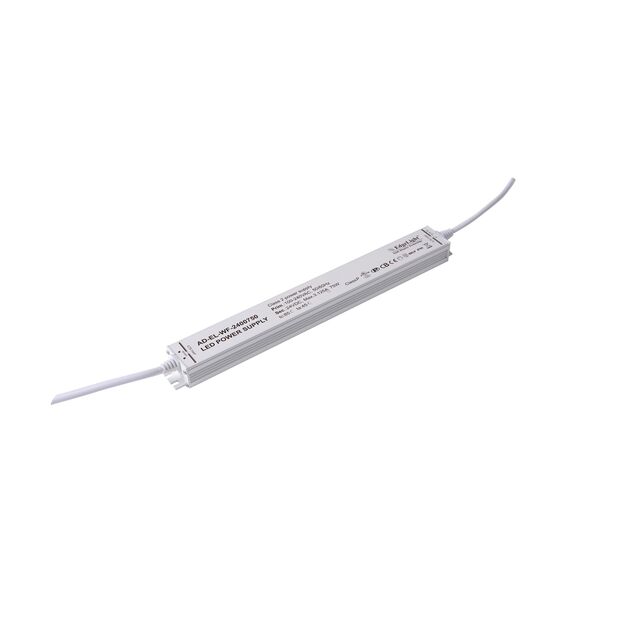

 Edgelight LLC 24 VDC 75W LED DRIVER | Sign in to see pricing | — | — | — | 24 V | 1.18 in | 0.79 in | 13.27 in | 92 % | 50 °C | -20 °C | — | 75 W | — | — | — | — | CB, CCC, CE, cULus, KC, PSE, TUV | 3.125 A | 100 VAC | UL E489262 | 3 kV | 1 | Constant Current | OCP, SCP | IP20 | Analog, PWM | AC DC Converter | Wire Leads | 240 V | — | — | — | — | — | — |
 Edgelight LLC 24VDC 80W SLIM LED DRIVER | Sign in to see pricing | — | — | — | 24 V | 1.18 in | 0.67 in | 14.84 in | 92 % | 50 °C | -20 °C | — | 96 W | — | — | — | — | CB, CCC, CE, cULus, KC, PSE, TUV | 4 A | 100 VAC | UL E489262 | 3 kV | 1 | Constant Current | OCP, SCP | IP20 | Analog, PWM | AC DC Converter | Wire Leads | 240 V | — | — | — | — | — | — |
 Edgelight LLC LED DRIVER UL LISTED CLASS 2, 24 | Sign in to see pricing | — | — | — | 24 V | 1.18 in | 0.79 in | 14.84 in | 94 % | 50 °C | -20 °C | — | 96 W | — | — | — | — | CCC, CE, cULus, cURus | 4 A | 100 VAC | 60950-1, UL 8750 | 3750 VDC | 1 | Constant Current | OCP, OTP, OVP, SCP | — | — | AC DC Converter | Wire Leads | 240 V | — | — | — | — | — | — |

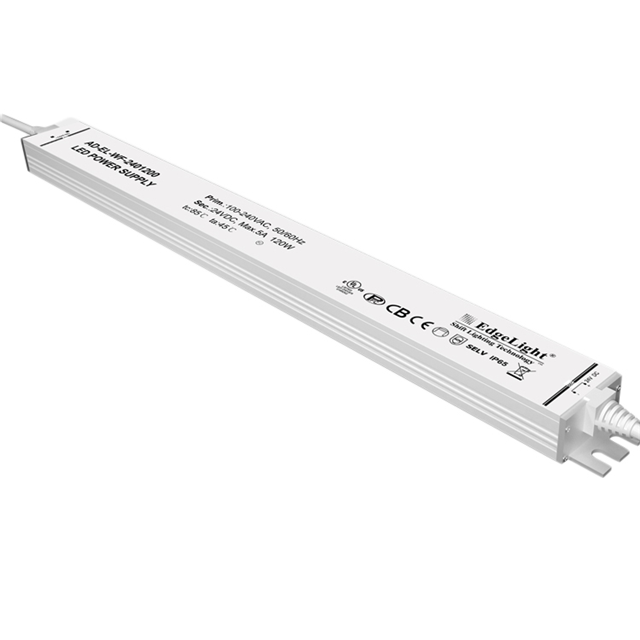

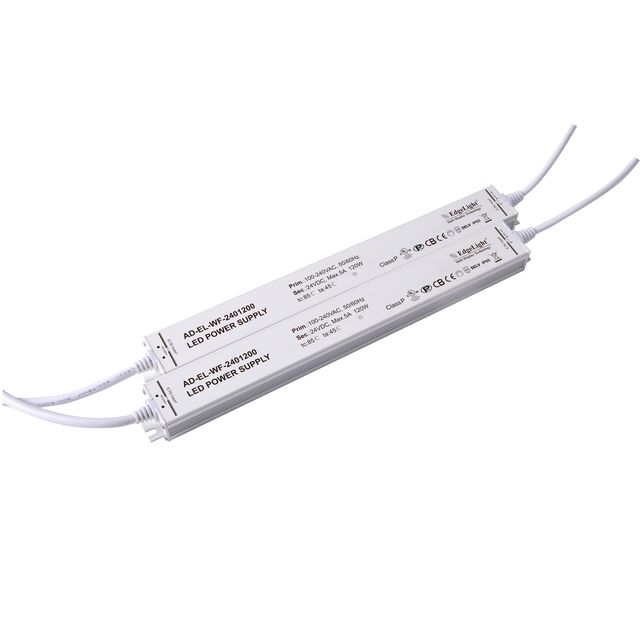

 Edgelight LLC 24V 120W SLIM EMC LED DRIVER POW | Sign in to see pricing | — | — | — | 24 V | 1.18 in | 0.98 in | 16.42 in | 92 % | 50 °C | -20 °C | — | 120 W | — | — | — | — | CB, CCC, CE, cULus | 5 A | 100 VAC | UL E489262 | 3 kV | 1 | Constant Current | OCP, SCP | IP20 | PWM | AC DC Converter | Wire Leads | 240 V | Chassis Mount | — | — | — | — | — |
 Edgelight LLC AC/DC DESKTOP ADAPTER 24V 120W | Sign in to see pricing | 240 VAC | 100 VAC | Desktop (Class I) | 24 V | 2.83 in | 1.3 in | 6.75 in | 91 % | 50 °C | -20 °C | International | 120 W | Cord (Included) | Positive Center | IEC 320-C14 | ITE (Commercial) | CB, CE, cULus, UL | 5 A | — | 60950-1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 850 mW |
