Ecliptek, powered by Abracon, is a market leader in frequency control products offering quick-turn programmable crystal and MEMS oscillators for industrial, consumer, data center, and telecommunications applications.
Parts that are not part of a series
Company background and product focus
Ecliptek is a recognized leader in the frequency control market, now powered by Abracon to provide the latest technical design support and global supply chain flexibility. The brand specializes in quick-turn programmable crystal and MEMS oscillator devices, enabling faster time-to-market and eliminating long lead times.
Ecliptek's programming capability offers quick-turn delivery of low, medium, and high-volume programmable oscillators, shortening customer design cycles and accelerating production lot delivery. Their product range includes:
These solutions are ideally suited for industrial, consumer, data center, and telecommunications infrastructure architectures.
© 2026 Zenode. All rights reserved.
Product families from Ecliptek
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Ecliptek that are not part of a series
| Part Information | Pricing (lowest) | Mounting Type | Size / Dimension Length | Size / Dimension Width | Height - Seated (Max) | Type | ESR (Equivalent Series Resistance) | Package / Case | Frequency Tolerance | Operating Temperature (Max) | Operating Temperature (Min) | Frequency Stability | Frequency | Load Capacitance | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ecliptek CRYSTALS 25.000MHZ 50PPM 18PF PA | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 40 Ohm | HC-49/US | 50 ppm | 70 °C | -20 °C | 100 ppm | 25 MHz | 18 pF | Fundamental |
 Ecliptek CRYSTALS 3.6864MHZ 50PPM 18PF PA | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 200 Ohm | HC-49/US | 50 ppm | 70 °C | -20 °C | 100 ppm | 3.6864 MHz | 18 pF | Fundamental |
Ecliptek CRYSTALS 7.3728MHZ 50PPM 18PF PA | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 120 Ohm | HC-49/US | 50 ppm | 70 °C | -20 °C | 100 ppm | 7.3728 MHz | 18 pF | Fundamental |
Ecliptek CRYSTALS 8.000MHZ 50PPM 18PF PAR | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 90 Ohm | HC-49/US | 50 ppm | 70 °C | -20 °C | 100 ppm | 8 MHz | 18 pF | Fundamental |

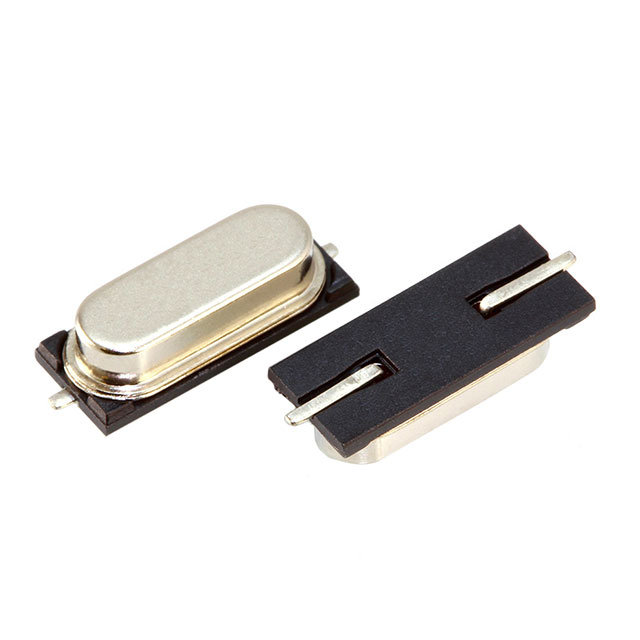

 Ecliptek CRYSTALS 14.7456MHZ 50PPM 18PF P | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 70 Ohm | HC-49/US | 50 ppm | 85 °C | -40 °C | 100 ppm | 14.7456 MHz | 18 pF | Fundamental |
Ecliptek CRYSTALS 16.000MHZ 50PPM 18PF PA | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 50 Ohm | HC-49/US | 50 ppm | 85 °C | -40 °C | 100 ppm | 16 MHz | 18 pF | Fundamental |
Ecliptek CRYSTALS 20.000MHZ 50PPM 18PF PA | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 50 Ohm | HC-49/US | 50 ppm | 85 °C | -40 °C | 100 ppm | 20 MHz | 18 pF | Fundamental |
Ecliptek CRYSTALS 3.6864MHZ 50PPM 18PF PA | Sign in to see pricing | Surface Mount | 0.457 in | 0.191 in | 0.126 in | MHz Crystal | 200 Ohm | HC-49/US | 50 ppm | 85 °C | -40 °C | 100 ppm | 3.6864 MHz | 18 pF | Fundamental |
Ecliptek CRYSTAL 7.3728MHZ 18PF SMD | Sign in to see pricing | Surface Mount | 0.457 in, 0.524 in | 0.191 in | 0.126 in | MHz Crystal | 160 Ohm | HC-49/US | 50 ppm | 85 °C | -40 °C | 100 ppm | 7.3728 MHz | 18 pF | Fundamental |
Ecliptek CRYSTAL 8.0000MHZ 18PF SMD | Sign in to see pricing | Surface Mount | 0.457 in, 0.524 in | 0.191 in | 0.126 in | MHz Crystal | 160 Ohm | HC-49/US | 50 ppm | 85 °C | -40 °C | 100 ppm | 8 MHz | 18 pF | Fundamental |
