Diwell Electronics is a Korean manufacturer established in 2008, specializing in infrared sensors and DC/DC converters for industrial automation, medical, and home applications.
Parts that are not part of a series
Company background and product focus
Diwell Electronics is a Korean company established in 2008 that has grown into a recognized manufacturer of infrared sensors and power conversion products. The company directly conducts product research and manufacturing while continuously developing solutions to meet evolving market demands.
Diwell Electronics provides sensors measuring a variety of ranges for applications in industrial automation, home appliances, automation systems, and medical devices. The company also offers an extensive portfolio of over hundreds of DC/DC converter modules for power management applications.
© 2026 Zenode. All rights reserved.
Product families from Diwell Electronics
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Diwell Electronics that are not part of a series
| Part Information | Pricing (lowest) | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Voltage - Output 1 | Type | Current - Output (Max) | Voltage - Input (Min) | Applications | Number of Outputs | Efficiency | Power (Watts) | Package Leads | Package Name | Voltage - Isolation | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Input (Max) | Topology | Dimming | Features | Voltage - Output (Min) | Voltage - Output (Max) | Approval Agency | Voltage - Output 2 | Current - Output (Max) Options |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

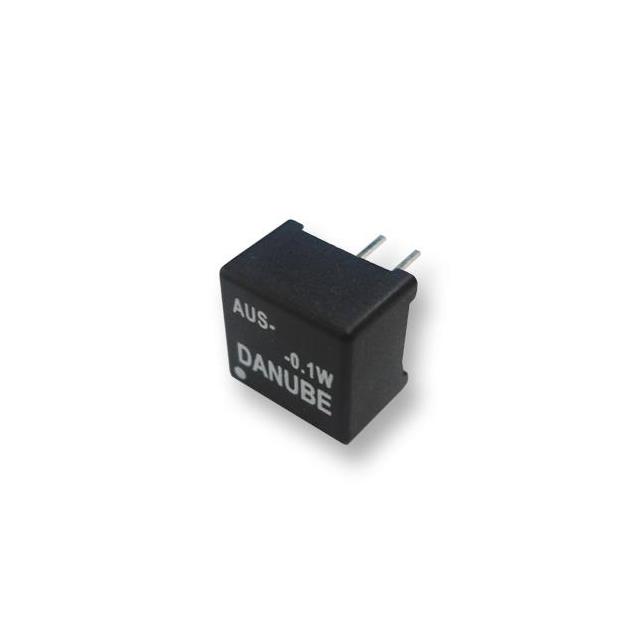

 Diwell Electronics DC DC CONVERTER 3.3V 0.1W | Sign in to see pricing | 0.37 in | 0.25 in | 0.35 in | 3.3 V | Isolated Module | 30 mA | 2.97 V | ITE (Commercial) | 1 | 50 % | 99 mW | 4 Leads | 5-DIP Module | 1500 Vrns | Through Hole | -40 °C | 85 °C | 3.63 V | — | — | — | — | — | — | — | — |
 Diwell Electronics DC DC CONVERTER 5V 0.1W | Sign in to see pricing | 0.37 in | 0.25 in | 0.35 in | 5 V | Isolated Module | 20 mA | 2.97 V | ITE (Commercial) | 1 | 50 % | 100 mW | 4 Leads | 5-DIP Module | 1500 Vrns | Through Hole | -40 °C | 85 °C | 3.63 V | — | — | — | — | — | — | — | — |
Diwell Electronics DC DC CONVERTER 3.3V 0.1W | Sign in to see pricing | 0.37 in | 0.25 in | 0.35 in | 3.3 V | Isolated Module | 30 mA | 4.5 V | ITE (Commercial) | 1 | 50 % | 99 mW | 4 Leads | 5-DIP Module | 1500 Vrns | Through Hole | -40 °C | 85 °C | 5.5 V | — | — | — | — | — | — | — | — |
Diwell Electronics DC DC CONVERTER 5V 0.1W | Sign in to see pricing | 0.37 in | 0.25 in | 0.35 in | 5 V | Isolated Module | 20 mA | 4.5 V | ITE (Commercial) | 1 | 50 % | 100 mW | 4 Leads | 5-DIP Module | 1500 Vrns | Through Hole | -40 °C | 85 °C | 5.5 V | — | — | — | — | — | — | — | — |

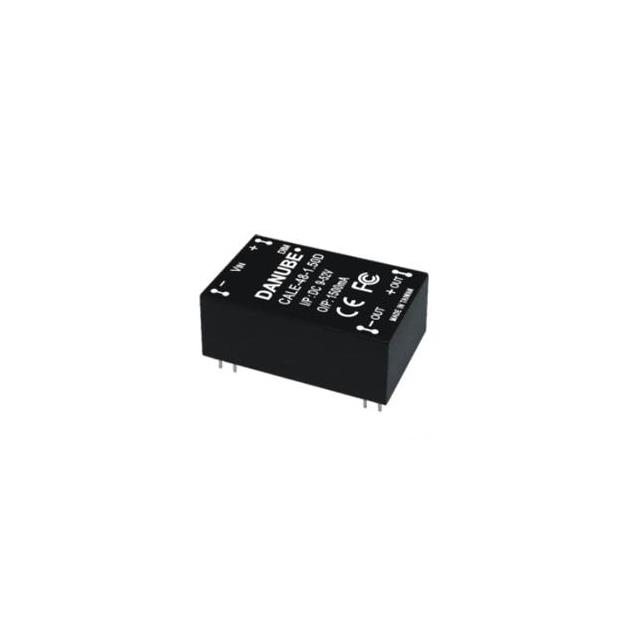

 Diwell Electronics LED DRIVER CC BUCK 2-46V 1.5A | Sign in to see pricing | 1.25 in | 0.48 in | 0.8 in | — | Constant Current | 1.5 A | 9 V | — | 1 | 96 % | 54 W | 9 Leads | 24-DIP Module | — | Through Hole | -40 °C | 65 °C | 52 V | Buck (Step-Down) | PWM | OCP, OTP, Remote On/Off, SCP | 2 V | 46 V | CE, FCC | — | — |
 Diwell Electronics DC DC CONVERTER +/-5V 2W | Sign in to see pricing | 1.25 in | 0.4 in | 0.8 in | 5 V | Isolated Module | 200 mA | 4.5 V | ITE (Commercial) | 2 | 57 % | 2 w | 12 Leads | 24-DIP Module | 1500 Vrns | Through Hole | -25 °C | 71 °C | 5.5 V | — | — | — | — | — | — | -5 V | — |
Diwell Electronics DC DC CONVERTER +/-12V 2W | Sign in to see pricing | 1.25 in | 0.4 in | 0.8 in | 12 V | Isolated Module | — | 4.5 V | ITE (Commercial) | 2 | 59 % | 2 w | 12 Leads | 24-DIP Module | 1500 Vrns | Through Hole | -25 °C | 71 °C | 5.5 V | — | — | — | — | — | — | -12 V | 84mA |
 Diwell Electronics DC DC CONVERTER +/-15V 2W | Sign in to see pricing | 1.25 in | 0.4 in | 0.8 in | 15 V | Isolated Module | 67 mA | 4.5 V | ITE (Commercial) | 2 | 62 % | 2 w | 12 Leads | 24-DIP Module | 1500 Vrns | Through Hole | -25 °C | 71 °C | 5.5 V | — | — | — | — | — | — | -15 V | — |
 Diwell Electronics DC DC CONVERTER +/-5V 2W | Sign in to see pricing | 1.25 in | 0.4 in | 0.8 in | 5 V | Isolated Module | 200 mA | 10.8 V | ITE (Commercial) | 2 | 61 % | 2 w | 12 Leads | 24-DIP Module | 1500 Vrns | Through Hole | -25 °C | 71 °C | 13.2 V | — | — | — | — | — | — | -5 V | — |
Diwell Electronics DC DC CONVERTER +/-12V 2W | Sign in to see pricing | 1.25 in | 0.4 in | 0.8 in | 12 V | Isolated Module | — | 10.8 V | ITE (Commercial) | 2 | 62 % | 2 w | 12 Leads | 24-DIP Module | 1500 Vrns | Through Hole | -25 °C | 71 °C | 13.2 V | — | — | — | — | — | — | -12 V | 84mA |
