Diodes Inc

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(5404)

...

Part	Category	Description
Diodes Inc ZXSC100X8TAObsolete	Integrated Circuits (ICs)	SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8
Diodes Inc MBR1045Obsolete	Discrete Semiconductor Products	DIODE SCHOTTKY 45V 10A TO220AC
Diodes Inc BC847CQ-7-F	Discrete Semiconductor Products	TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R
Diodes Inc FL2500151	Crystals Oscillators Resonators	CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD
Diodes Inc FDD300004	Crystals Oscillators Resonators	XTAL OSC XO 133.0000MHZ CMOS SMD
Diodes Inc 1N4002G-T	Discrete Semiconductor Products	DIODE GEN PURP 100V 1A DO41
Diodes Inc MBRF20150CTLObsolete	Discrete Semiconductor Products	DIODE SCHOTTKY ITO220AB
Diodes Inc AP9101CAK-BUTRG1	Integrated Circuits (ICs)	NRND = NOT RECOMMENDED FOR NEW DESIGN
Diodes Inc RS1MWF-7	Discrete Semiconductor Products	1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS
Diodes Inc 74LVC1G3157DW-7	Integrated Circuits (ICs)	ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES

Series	Category	# Parts	Status	Description

APX393DUAL DIFFERENTIAL COMPARATORS	Integrated Circuits (ICs)	2	Active	TN1.pdf
APX4558	Instrumentation, Op Amps, Buffer Amps	1	Obsolete	TN1.pdf
APX803LMICRO POWER VOLTAGE DETECTOR	Crystals, Oscillators, Resonators	168	Active	The APX803L is brand new micro-power voltage detector series Diodes Inc. develops with target to be used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. It provides wide range of detection voltage level ranging from 1.2V to 5.0V with 0.1V per step options fixed internally from circuit design. As to supply current, APX803L series requires low supply current level of 1µA(typical) which gives no burden to power efficiency on systems requiring detection functions, such as smart phone, battery-powered devices, Internet of Things and so on.
APX803S	Power Management (PMIC)	30	Active	The APX803S is used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5.0V, 3.3V, 3.0V and 2.5V powered circuits.
APX809SNRND = Not Recommended for New Design	Power Management (PMIC)	35	Active	The APX809/810 are used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V powered circuits. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 240ms after VCChas risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The APX809/810 have push pull outputs. The APX809 have an active low RESET output, while the APX810 has an active high RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCCdown to 1V. Low supply current makes the APX809/810 ideal for use in portable equipment. The APX809/810 is available in a 3-pin SOT23 and SOT23R package.
APX810SNRND = Not Recommended for New Design	PMIC	33	Active	The APX809/810 are used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V powered circuits. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 240ms after VCChas risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The APX809/810 have push pull outputs. The APX809 have an active low RESET output, while the APX810 has an active high RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCCdown to 1V. Low supply current makes the APX809/810 ideal for use in portable equipment. The APX809/810 is available in a 3-pin SOT23 and SOT23R package.

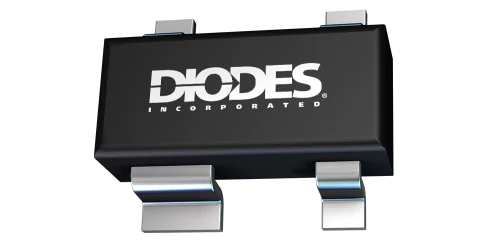

APX811	PMIC	6	Active	TN1.pdf
APX812	Power Management (PMIC)	3	Active	TN1.pdf
APX823Processor Supervisory Circuits	Power Management (PMIC)	4	Active	The APX823/APX824/APX825A family of supervisors provides circuit initialization and timing supervision, primarily for DSP and processor-based systems.
APX824Processor Supervisory Circuits	PMIC	5	Active	The APX823/APX824/APX825A family of supervisors provides circuit initialization and timing supervision, primarily for DSP and processor-based systems.
