AP71671.2A Low Dropout Regulator with POK | PMIC | 1 | Active | TN1.pdf |
AP7176B3A Ultra Low Dropout Linear Regulator with ENABLE | PMIC | 1 | Active | The AP7176B is a 3.0A ultra low-dropout (LDO) linear regulator that features an enable input and a power-good output. |
| Integrated Circuits (ICs) | 1 | Active | TN1.pdf |
AP7217NRND = Not Recommended for New Design | Integrated Circuits (ICs) | 1 | Active | TN1.pdf |

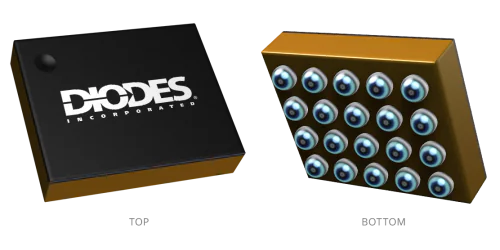

| DC/DC & AC/DC (Off-Line) SMPS | 1 | Active | The AP72200 is a high current synchronous buck-boost converter providing high efficiency, excellent transient response and high DC output accuracy. The targeted applications are smartphones, tablets, and other handheld devices. The AP72200 utilizes a four switches H-bridge configuration to support buck and boost operation. The buck-boost provides at least 2A output current. |
| Power Management (PMIC) | 2 | Active | |
AP7311150MA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator | PMIC | 6 | Active | The AP7311 is a 150mA, adjustable and fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7311 is available in SOT25 package. |
AP7312NRND = Not Recommended for New Design | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 3 | Active | The AP7312 is 150mA, dual fixed output voltage, low dropout linear regulator. The AP7312 include the pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry which protect the IC from damage in fault conditions. The AP7312 has two enable pins (EN1 and EN2) to independently turn the respective channel on when a logic high level is applied. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications. The typical quiescent current is approximately 60μA. This device is available with fixed output options of 1.2V/1.8V, 1.2V/3.3V, 1.5V/2.5V, 1.5V/3.3V, 1.8V/2.8V, 1.8V/3.0V, 1.8V/3.3V and 3.3V/3.3V. For other output options please contact our local sales representative directly or through our distributor located in your area. The AP7312 is available in SOT26 and DFN2018-6 packages. |
AP7313150MA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator | PMIC | 8 | Active | The AP7313 is a 150mA, fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7313 is available in SOT23 package with different pin-outs. |
AP7315QAutomotive Compliant 150MA High PSRR Low Noise LDO with ENABLE | PMIC | 49 | Active | The AP7315Q is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process. |
