| Part | Category | Description |
|---|---|---|
 Diodes Inc ZXSC100X8TAObsolete | Integrated Circuits (ICs) | SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8 |
 Diodes Inc MBR1045Obsolete | Discrete Semiconductor Products | DIODE SCHOTTKY 45V 10A TO220AC |
 Diodes Inc | Discrete Semiconductor Products | TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R |
 Diodes Inc | Crystals Oscillators Resonators | CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD |
 Diodes Inc | Crystals Oscillators Resonators | XTAL OSC XO 133.0000MHZ CMOS SMD |
 Diodes Inc | Discrete Semiconductor Products | DIODE GEN PURP 100V 1A DO41 |
Diodes Inc MBRF20150CTLObsolete | Discrete Semiconductor Products | DIODE SCHOTTKY ITO220AB |
 Diodes Inc | Integrated Circuits (ICs) | NRND = NOT RECOMMENDED FOR NEW DESIGN |
 Diodes Inc | Discrete Semiconductor Products | 1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS |
 Diodes Inc | Integrated Circuits (ICs) | ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES |
| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|
PI3CSW12High-Speed I3C 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable | Integrated Circuits (ICs) | 1 | Active | The PI3CSW12 is a high-bandwidth switch specially designed for the switching of high-speed I3C signals in communication and server applications, such as servers, workstations, and notebooks with hubs or controllers with limited I3C I/Os. The wide bandwidth (1.6GHz) of this switch allows signals to pass with minimum edge and phase distortion. |
PI3DBS12212A12 Gbps,1-Lane (2-Channel), Differential 2:1 Mux/DeMux. 3.3V | Integrated Circuits (ICs) | 1 | Active | 12 Gbps,1-Lane (2-Channel), Differential 2:1 Mux/DeMux. 3.3V |
PI3DBS12412A12Gbps, 2-Lane (4-Channel), Differential 2:1 Mux/DeMux. 3.3V | Integrated Circuits (ICs) | 1 | Active | 12Gbps, 2-Lane (4-Channel), Differential 2:1 Mux/DeMux. 3.3V |

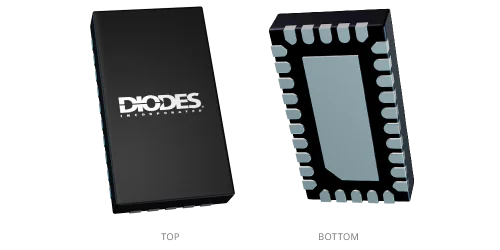

PI3DBS16222Q3.3V 20Gbps 4-Channel 2x2 Exchange Switch, AEC-Q100 Grade 2 | Interface | 1 | Active | The PI3DBS16222Q is an automotive-qualified differential exchange switch featuring pass-through pinout. It supports 2x2 exchange switch operating at 20Gbps, and enables applications in PCI Express 4.0, USB 4.0, USB 3.1 Gen 2, Thunderbolt 4, 10G BASE-KR. |

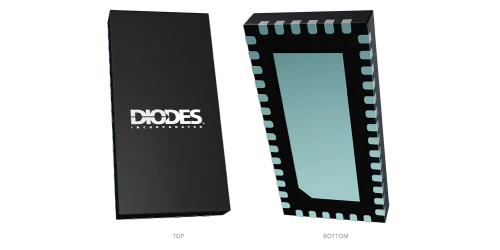

| Interface | 2 | Active | ||
PI3DBS16413PCIe Gen 4 MUX | Interface | 1 | Active | The PI3DBS16413 is an 12 to 4 differential channel multiplexer/demultiplexer switch. This solution can switch multiple signal types up to data rate of 20Gbps. Using a unique design technique, Peri-com has been able to minimize the impedance of the switch such that the attenuation observed through the switch is minimal. The unique design technique also offers a layout targeted for USB3.0, USB3.1, 10GE, Thunderbolt 3, and SAS3.0 signals, which mini-mizes the channel to channel skew as well as channel to channel crosstalk as required by high speed signals. |
PI3DBS32243.3V High Speed 2:4 Differential Mux/Demux | Interface | 1 | Obsolete | 3.3V High Speed 2:4 Differential Mux/Demux |
| Integrated Circuits (ICs) | 1 | Obsolete | ||
PI3DDR4212NRND = Not Recommended for New Design | Analog Switches - Special Purpose | 1 | Active | NRND = Not Recommended for New Design |
| Signal Buffers, Repeaters, Splitters | 1 | Obsolete | ||
