| Part | Category | Description |
|---|---|---|
 Diodes Inc ZXSC100X8TAObsolete | Integrated Circuits (ICs) | SWITCHING CONTROLLER, VOLTAGE-MODE, 200KHZ SWITCHING FREQ-MAX, PDSO8, MSOP-8 |
 Diodes Inc MBR1045Obsolete | Discrete Semiconductor Products | DIODE SCHOTTKY 45V 10A TO220AC |
 Diodes Inc | Discrete Semiconductor Products | TRANS GP BJT NPN 45V 0.1A 3-PIN SOT-23 T/R |
 Diodes Inc | Crystals Oscillators Resonators | CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD |
 Diodes Inc | Crystals Oscillators Resonators | XTAL OSC XO 133.0000MHZ CMOS SMD |
 Diodes Inc | Discrete Semiconductor Products | DIODE GEN PURP 100V 1A DO41 |
Diodes Inc MBRF20150CTLObsolete | Discrete Semiconductor Products | DIODE SCHOTTKY ITO220AB |
 Diodes Inc | Integrated Circuits (ICs) | NRND = NOT RECOMMENDED FOR NEW DESIGN |
 Diodes Inc | Discrete Semiconductor Products | 1.1V@2A 240NS INDEPENDENT TYPE 1A 1KV SOD-123F FAST RECOVERY / HIGH EFFICIENCY DIODES ROHS |
 Diodes Inc | Integrated Circuits (ICs) | ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES |
| Series | Category | # Parts | Status | Description |
|---|---|---|---|---|
DGD2005HIGH-SIDE AND LOW-SIDE GATE DRIVER IN SO-8 | Power Management (PMIC) | 1 | Active | The DGD2005 is a mid-voltage / high-speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half-bridge configuration. High voltage processing techniques enable the DGD2005’s high-side to switch to 200V in a bootstrap operation. The 30ns (max) propagation delay matching between the high-side and low-side drivers allows high frequency switching. |
| Gate Drivers | 1 | Obsolete | ||
| Power Management (PMIC) | 1 | Obsolete | ||
| PMIC | 1 | Obsolete | ||
DGD2104MHALF-BRIDGE GATE DRIVER IN SO-8 | Power Management (PMIC) | 3 | Active | The DGD2104M is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration. High-voltage processing techniques enable the DGD2104M’s high side to switch to 600V in a bootstrap operation.The DGD2104M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high-pulse current buffers designed for minimum driver cross conduction.The DGD2104M is offered in the SO-8 (Type TH) package and operates over an extended -40°C to +125°C temperature range. |

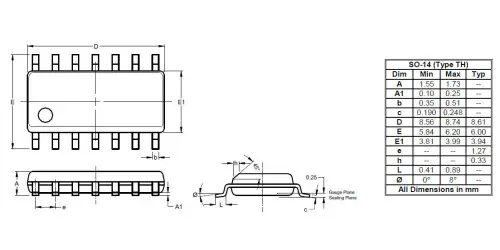

DGD21064HIGH-SIDE AND LOW-SIDE GATE DRIVER IN SO-14 | Gate Drivers | 1 | Active | The DGD21064 is a high voltage / high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration. High voltage processing techniques enable the DGD21064’s high-side to switch to 600V in a bootstrap operation. |
DGD2106MHIGH-SIDE AND LOW-SIDE GATE DRIVER IN SO-8 | Gate Drivers | 1 | Active | The DGD2106M is a high-voltage / high-speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half-bridge configuration. High voltage processing techniques enable the DGD2106M’s high-side to switch to 600V in a bootstrap operation. |
| PMIC | 1 | Obsolete | ||
DGD2136Inactive Datasheet Archive | Gate Drivers | 1 | Active | The DGD2136 is a three-phase gate driver IC designed for high-voltage / high-speed applications, driving N-Channel MOSFETs and IGBTs in a half-bridge configuration. High-voltage processing techniques enable the DGD2136’s high-side to switch to 600V in a bootstrap operation. |
DGD21814MHIGH-SIDE AND LOW-SIDE GATE DRIVER IN SO-14 | PMIC | 2 | Active | The DGD21814M is a high voltage / high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration. High-voltage processing techniques enable the DGD21814M’s highside to switch to 600V in a bootstrap operation. |
