Product families from Crystal IS
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Crystal IS that are not part of a series
| Part Information | Pricing (lowest) | Package / Case | Viewing Angle | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Type | Wavelength | Wavelength (Minimum) | Wavelength (Nominal) | Wavelength (Maximum) | Orientation | Current - DC Forward (If) (Max) | Voltage - Forward (Vf) (Typ) | Contents | Voltage - Forward (Vf) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Crystal IS 260 - 270 NM, >80MW OUTPUT POWER | Sign in to see pricing | 1414 (3535 Metric) | 130 ° | Surface Mount | -40 °C | 85 °C | Ultraviolet (UV) | 265 nm | 260 nm | 265 nm | 270 nm | Top View | 700 mA | 6.5 V | — | — |
 Crystal IS UVC LED 62.5 MW OUTPUT | Sign in to see pricing | 1414 (3535 Metric) | 130 ° | Surface Mount | -40 °C | 85 °C | Ultraviolet (UV) | 265 nm | 260 nm | 265 nm | 270 nm | Top View | 500 mA | 6.1 V | — | — |
 Crystal IS LED ON STARBOARD - >62.5MW OUTPU | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
Crystal IS UVC LED 75 MW OUTPUT | Sign in to see pricing | 1414 (3535 Metric) | 130 ° | Surface Mount | -40 °C | 85 °C | Ultraviolet (UV) | 265 nm | 260 nm | 265 nm | 270 nm | Top View | 500 mA | 6.1 V | — | — |
Crystal IS LED ON STARBOARD >75MW OUTPUT PO | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
 Crystal IS UVC LED EVAL BOARD W/ LEDIL (2) | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | Board | — |
 Crystal IS 235 NM, >0.04MW OUTPUT @ 20MA | Sign in to see pricing | 1414 (3535 Metric) | 120 ° | Surface Mount | -5 °C | 50 °C | Ultraviolet (UV) | 234 nm | 231 nm | 234 nm | 237 nm | Top View | 50 mA | 6 V | — | — |
 Crystal IS UVC LED, 255NM, SMD | Sign in to see pricing | 1414 (3535 Metric) | 120 ° | Surface Mount | -5 °C | 55 °C | Ultraviolet (UV) | 255 nm | 250 nm | 255 nm | 260 nm | Top View | 100 mA | — | — | 8 V |
Crystal IS UVC LED, 275NM, SMD | Sign in to see pricing | 1414 (3535 Metric) | 120 ° | Surface Mount | -5 °C | 55 °C | Ultraviolet (UV) | 275 nm | 270 nm | 275 nm | 280 nm | Top View | 100 mA | — | — | 8 V |

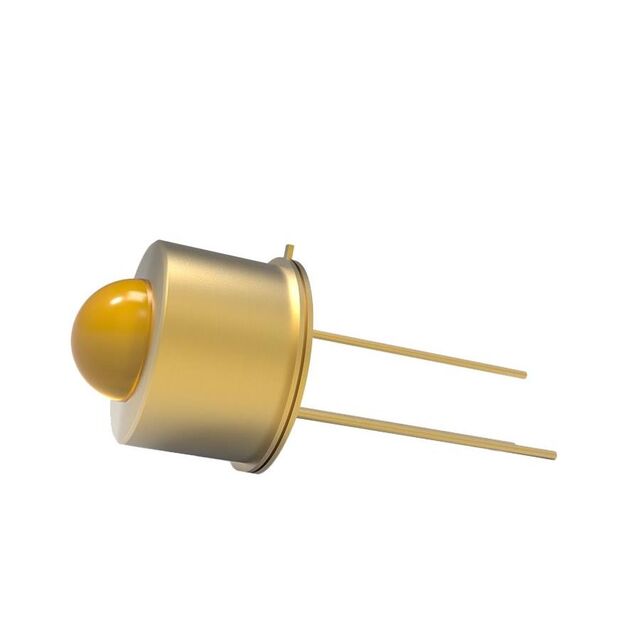

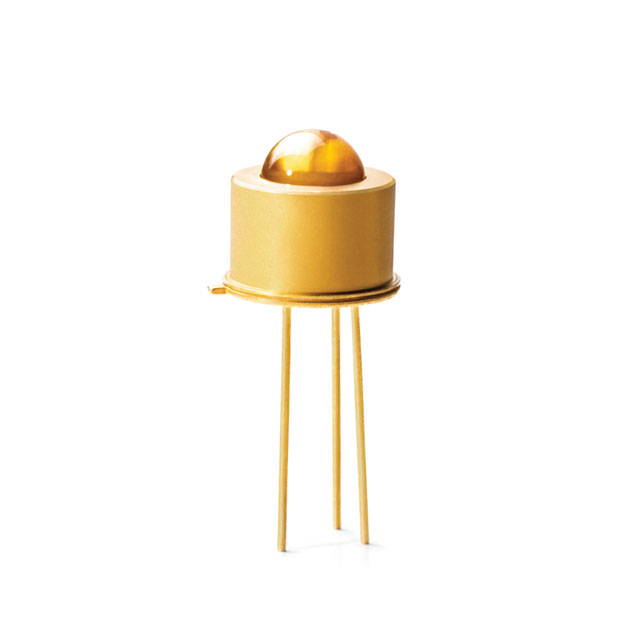

 Crystal IS UVC LED, 250NM, BALL LENS | Sign in to see pricing | TO-205AD, TO-39-3 Metal Can | 15 ° | Through Hole | -5 °C | 55 °C | Ultraviolet (UV) | 250 nm | 245 nm | 250 nm | 255 nm | Top View | 100 mA | — | — | 10 V |
