Product families from Cosmo Ferrites Ltd.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Cosmo Ferrites Ltd. that are not part of a series
| Part Information | Pricing (lowest) | Finish | Effective Length (le) | Height | Length | Material | Gap | Effective Area (Ae) | Tolerance | Package Name | Package Length | Package Height | Package Width | Inductance Factor (Al) | Effective Magnetic Volume (Ve) | Width | Core Type | Core Factor (ΣI/A) | Initial Permeability (µi) | Tolerance (Negative) | Tolerance (Positive) | Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosmo Ferrites Ltd. COSMO INDIA E CORE MN-ZN | Sign in to see pricing | Uncoated | 39.9 mm | 0.319 in | 0.752 in | 3C91 | Ungapped | 22.6 mm² | 25 % | E | 19 mm | 5 mm | 8 mm | 1.5 µH | 900 mm³ | 0.185 in | E | 1.77 mm⁻² | — | — | — | — |

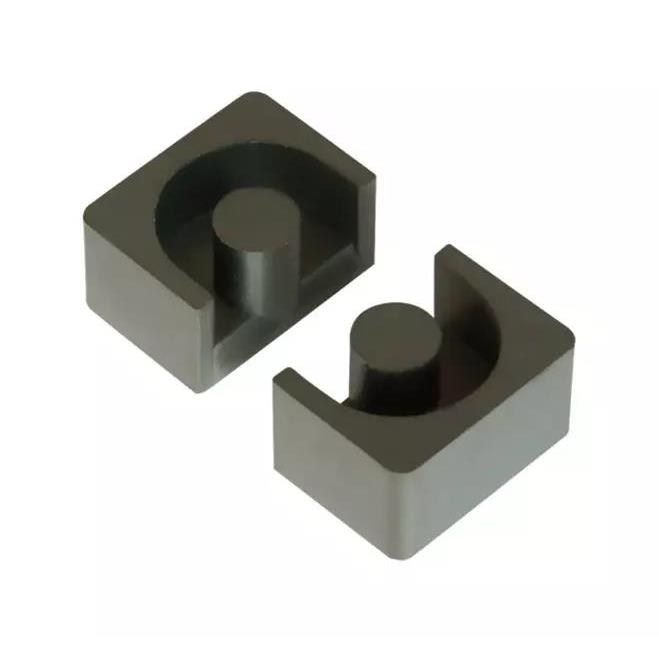

 Cosmo Ferrites Ltd. COSMO INDIA EP CORE MN-ZN | Sign in to see pricing | Uncoated | 40 mm | 0.425 in | 0.965 in | N30 | Ungapped | 78 mm² | — | EP 20 | — | — | — | 6.7 µH | 3120 mm³ | 0.602 in | EP | 0.51 mm⁻² | 5200 | 20 % | 30 % | — |

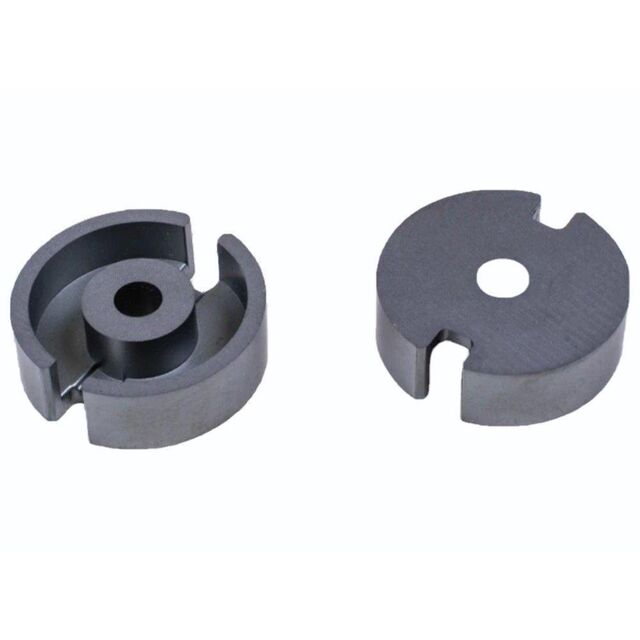

 Cosmo Ferrites Ltd. COSMO INDIA POT CORES MN-ZN | Sign in to see pricing | Uncoated | — | 0.528 in | — | 3C91 | — | — | — | P | 22 mm | — | 13 mm | — | — | — | P (Pot Core) | — | — | — | — | 0.866 in |
 Cosmo Ferrites Ltd. COSMO INDIA TOROIDAL RINGS MN-Z | Sign in to see pricing | Uncoated | 24.07 mm | 0.157 in | — | N30 | Ungapped | 7.83 mm² | 25 % | R | 10 mm | 4 mm | 6 mm | 1.76 µH | 188 mm³ | — | Toroid | 3.07 mm⁻đ | 4300 | — | — | 0.394 in |
Cosmo Ferrites Ltd. COSMO INDIA TOROIDAL RINGS MN-Z | Sign in to see pricing | Epoxy | — | 0.63 in | — | — | — | — | — | TX | 36 mm | 15 mm | 23 mm | — | — | — | Toroid | — | — | — | — | 1.463 in |
Cosmo Ferrites Ltd. COSMO INDIA TOROIDAL RINGS MN-Z | Sign in to see pricing | Epoxy | — | 0.783 in | — | — | — | — | — | TX | 51 mm | 19 mm | 32 mm | — | — | — | Toroid | — | — | — | — | 2.069 in |
Cosmo Ferrites Ltd. COSMO INDIA E CORE MN-ZN | Sign in to see pricing | Uncoated | — | 0.323 in | 0.63 in | T46 | Ungapped | — | — | E | 16 mm | 5 mm | 8 mm | — | — | 0.185 in | E | — | — | — | — | — |
 Cosmo Ferrites Ltd. COSMO INDIA ELP CORE MN-ZN | Sign in to see pricing | Uncoated | — | 0.25 in | 1.25 in | N87 | Ungapped | — | — | ELP | 32 mm | 20 mm | 6 mm | — | — | 0.801 in | ELP | — | — | — | — | — |
Cosmo Ferrites Ltd. COSMO INDIA ELP CORE MN-ZN | Sign in to see pricing | Uncoated | 61.1 mm | 0.374 in | 1.701 in | N87 | Gapped | 225 mm² | 25 % | ELP | 43 mm | 28 mm | 10 mm | 7.3 µH | 14000 mm³ | 1.098 in | ELP | 0.27 mm⁻² | — | — | — | — |
Cosmo Ferrites Ltd. COSMO INDIA E CORE MN-ZN | Sign in to see pricing | Uncoated | 149 mm | 1.307 in | 2.776 in | N87 | Distributed Gapped | 683 mm² | 10 % | E | 70 mm | 32 mm | 33 mm | 250 nH | 102000 mm³ | 1.26 in | E | 0.22 mm⁻² | 2200 | — | — | — |
