Product families from Coilmx
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Coilmx that are not part of a series
| Part Information | Pricing (lowest) | Mounting Type | Tolerance | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Height - Seated (Max) | Material - Core | Size / Dimension Width | Size / Dimension Length | Current Rating | Shielding | Inductance | Package Name | DC Resistance (DCR) (Max) | Inductance Frequency - Test | Current - Saturation (Isat) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilmx INDUCTANCE 1.0 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.118 in | Ferrite | 0.26 in | 0.281 in | 12 A | Shielded | 1 µH | 2-SMD | 7.5 mOhm | 100 kHz | 15 A | — |
 Coilmx INDUCTANCE 3.3 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.118 in | Ferrite | 0.26 in | 0.281 in | 6.5 A | Shielded | 3.3 µH | 2-SMD | 26 mOhm | 100 kHz | 9.5 A | — |
Coilmx INDUCTANCE 4.7 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.118 in | Ferrite | 0.26 in | 0.281 in | 5 A | Shielded | 4.7 µH | 2-SMD | 38 mOhm | 100 kHz | 6.5 A | — |
Coilmx INDUCTANCE 3.3 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.157 in | Ferrite | 0.394 in | 0.427 in | 10 A | Shielded | 3.3 µH | 2-SMD | 12 mOhm | 100 kHz | 16 A | — |
Coilmx INDUCTANCE 4.7UH TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.157 in | Ferrite | 0.394 in | 0.427 in | 8.5 A | Shielded | 4.7 µH | 2-SMD | 20 mOhm | 100 kHz | 13 A | — |
Coilmx INDUCTANCE 1.0 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.197 in | Ferrite | 0.394 in | 0.439 in | 5.5 A | Shielded | 10 µH | 2-SMD | 30 mOhm | 100 kHz | 8.5 A | — |
Coilmx INDUCTANCE 3.3 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.236 in | Ferrite | 0.496 in | 0.537 in | 16 A | Shielded | 3.3 µH | 2-SMD | 2.5 mOhm | 100 kHz | 22 A | — |
Coilmx INDUCTANCE 4.7 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.236 in | Ferrite | 0.496 in | 0.537 in | 13 A | Shielded | 4.7 µH | 2-SMD | 18 mOhm | 100 kHz | 18 A | — |

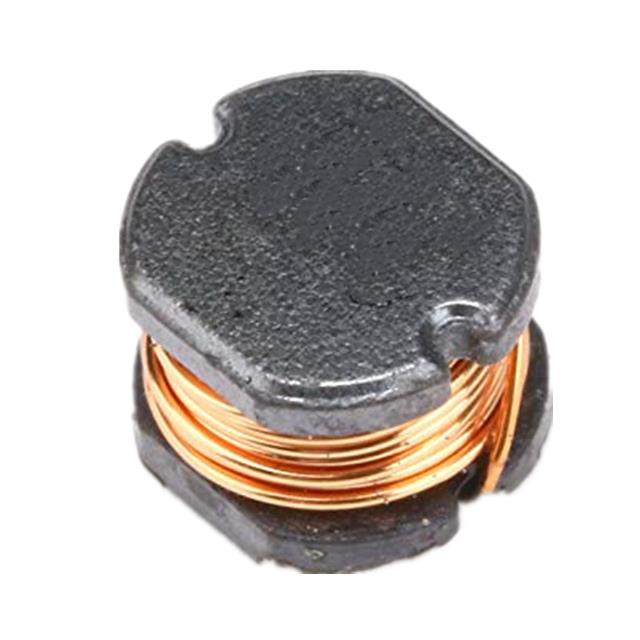

 Coilmx INDUCTANCE 1.5 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.138 in | Ferrite | 0.157 in | 0.177 in | — | Unshielded | 1.5 µH | 2-SMD | 28.5 mOhm | 100 kHz | 4.5 A | Drum Core, Wirewound |
Coilmx INDUCTANCE 3.3 H TOL 20% | Sign in to see pricing | Surface Mount | 20 % | 2-SMD | 125 °C | -55 °C | 0.138 in | Ferrite | 0.157 in | 0.177 in | — | Unshielded | 3.3 µH | 2-SMD | 58.5 mOhm | 100 kHz | 3.5 A | Drum Core, Wirewound |
