Taiwan Chinsan Electronic, known by the Elite brand, is a leading manufacturer of aluminum electrolytic capacitors, conductive polymer capacitors, and hybrid capacitors with over 50 years of manufacturing expertise.
Parts that are not part of a series
Company background and product focus
Taiwan Chinsan Electronic Industrial Co., Ltd., a Taiwan stock-listed company founded in 1970, is a globally recognized manufacturer of capacitors under the Elite brand. Headquartered in New Taipei City, the company has over 53 years of experience in designing and manufacturing high-quality aluminum electrolytic capacitors and aluminum solid polymer capacitors.

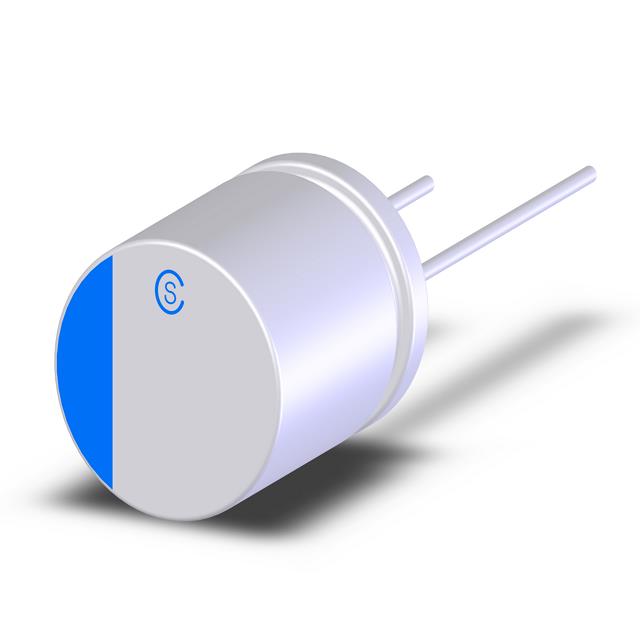

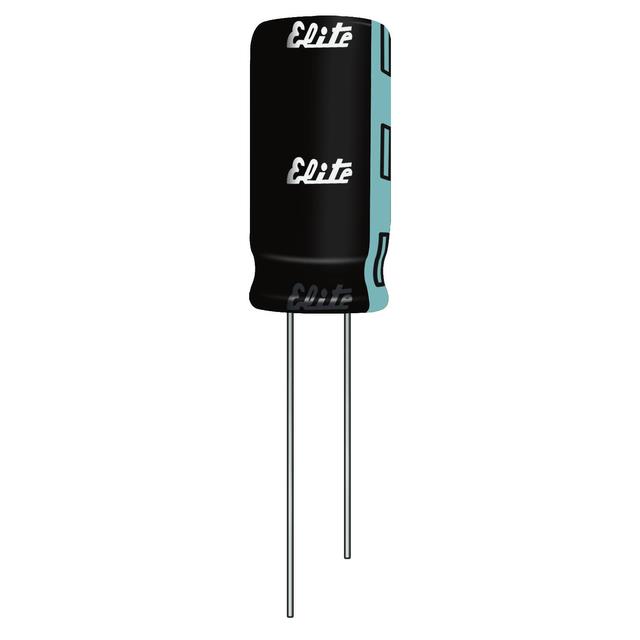

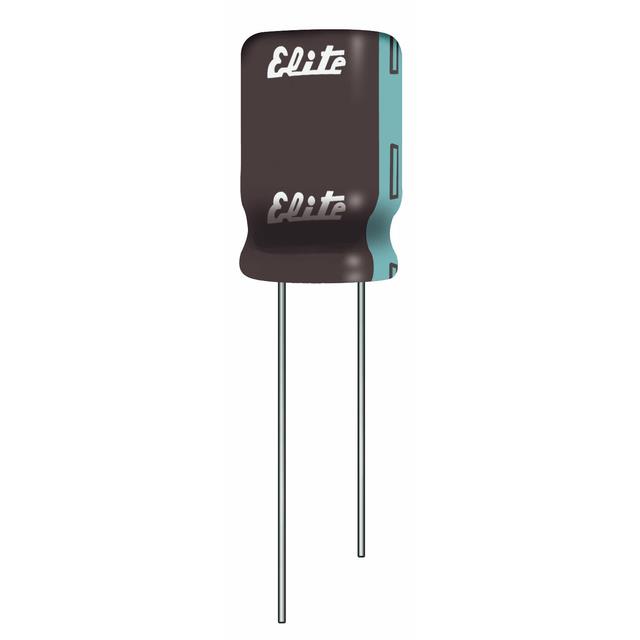

Chinsan's comprehensive product portfolio includes aluminum electrolytic capacitors, aluminum conductive polymer capacitors, and aluminum conductive polymer hybrid capacitors. These are available in both radial can through-hole and SMD (surface mount device) configurations to meet diverse application requirements across multiple industries.
The company serves customers in key sectors including:
With a strong commitment to research and development, Chinsan continuously innovates to introduce new technologies and products that meet the evolving demands of the electronics industry.
© 2026 Zenode. All rights reserved.
Product families from Chinsan (Elite)
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Chinsan (Elite) that are not part of a series
| Part Information | Pricing (lowest) | Package / Case | Lifetime | Tolerance | Ripple Current | Height - Seated (Max) | Mounting Type | Applications | Lead Spacing | Size / Dimension Diameter | Capacitance | Operating Temperature (Max) | Operating Temperature (Min) | Polarization | Voltage - Rated | Surface Mount Land Width | Surface Mount Land Length | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

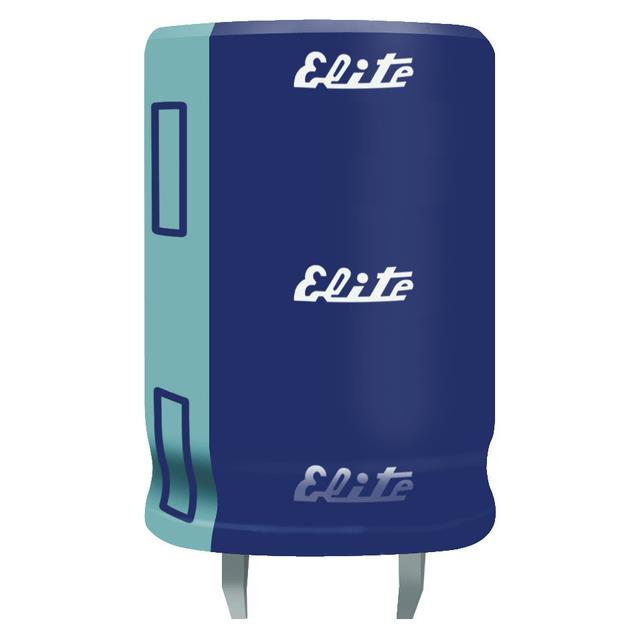

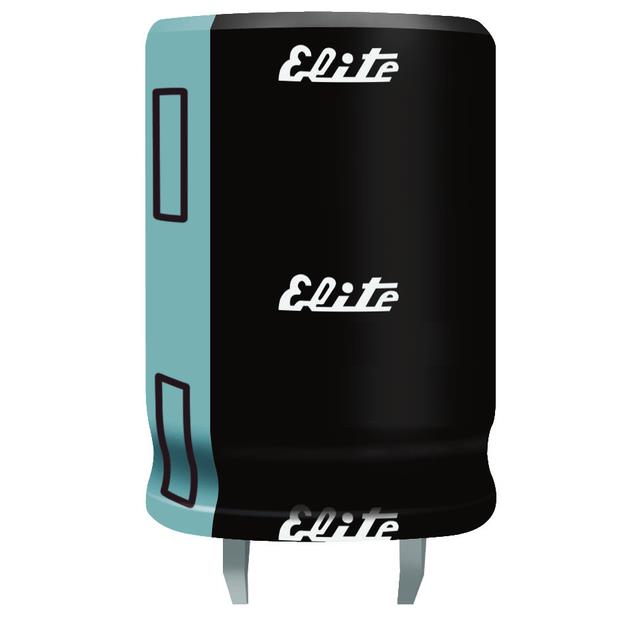

 Chinsan (Elite) CAP ALUM 330UF 20% 450V SNAP TH | Sign in to see pricing | Can - Snap-In, Radial | 3000 Hrs | 20 % | 1.25 A, 1.625 A | 1.654 in | Through Hole | General Purpose | 0.394 in | 1.378 in | 330 µF | 85 °C | -25 °C | Polar | 450 V | — | — | — |
Chinsan (Elite) CAP ALUM 680UF 20% 450V SNAP TH | Sign in to see pricing | Can - Snap-In, Radial | 3000 Hrs | 20 % | 2.8 A, 3.64 A | 2.441 in | Through Hole | General Purpose | 0.394 in | 1.378 in | 680 µF | 85 °C | -25 °C | Polar | 450 V | — | — | — |

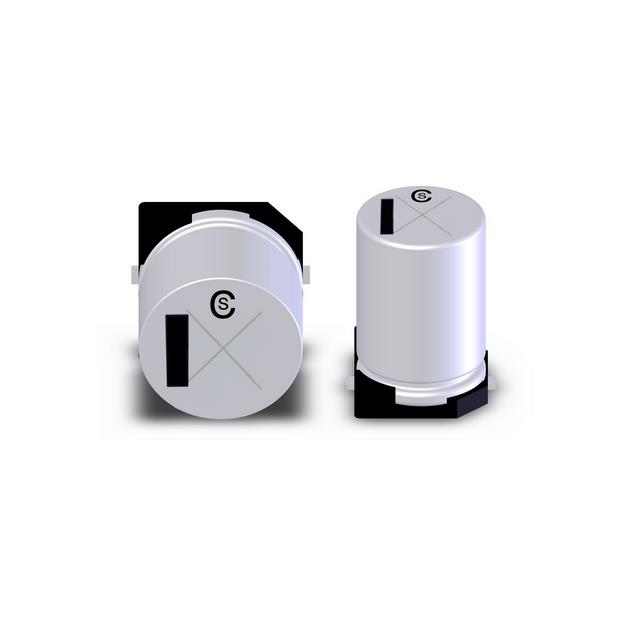

 Chinsan (Elite) CAP ALUM 1000UF 20% 6.3V SMD | Sign in to see pricing | Can - SMD, Radial | 2000 Hrs | 20 % | 180 mA, 450 mA | 0.433 in | Surface Mount | General Purpose | — | 0.315 in | 1000 µF | 105 °C | -55 °C | Polar | 6.3 V | 0.327 in | 0.327 in | 170 mOhm |
Chinsan (Elite) CAP ALUM 220UF 20% 6.3V SMD | Sign in to see pricing | Can - SMD, Radial | 2000 Hrs | 20 % | 92 mA, 230 mA | 0.244 in | Surface Mount | General Purpose | — | 0.248 in | 220 µF | 105 °C | -55 °C | Polar | 6.3 V | 0.26 in | 0.26 in | 440 mOhm |
Chinsan (Elite) CAP ALUM 1000UF 20% 10V SMD | Sign in to see pricing | Can - SMD, Radial | 3000 Hrs | 20 % | 268 mA, 670 mA | 0.433 in | Surface Mount | General Purpose | — | 0.394 in | 1000 µF | 105 °C | -55 °C | Polar | 10 V | 0.406 in | 0.406 in | 90 mOhms |
Chinsan (Elite) CAP ALUM 150UF 20% 10V SMD | Sign in to see pricing | Can - SMD, Radial | 2000 Hrs | 20 % | 92 mA, 230 mA | 0.244 in | Surface Mount | General Purpose | — | 0.248 in | 150 µF | 105 °C | -55 °C | Polar | 10 V | 0.26 in | 0.26 in | 440 mOhm |
 Chinsan (Elite) CAP ALUM 220UF 20% 10V SMD | Sign in to see pricing | Can - SMD, Radial | 3000 Hrs | 20 % | 112 mA, 280 mA | 0.315 in | Surface Mount | General Purpose | — | 0.248 in | 220 µF | 105 °C | -55 °C | Polar | 10 V | 0.26 in | 0.26 in | 0.34 Ohms |
Chinsan (Elite) CAP ALUM 100UF 20% 16V SMD | Sign in to see pricing | Can - SMD, Radial | 2000 Hrs | 20 % | 92 mA, 230 mA | 0.244 in | Surface Mount | General Purpose | — | 0.248 in | 100 µF | 105 °C | -55 °C | Polar | 16 V | 0.26 in | 0.26 in | 440 mOhm |
Chinsan (Elite) CAP ALUM 100UF 20% 16V SMD | Sign in to see pricing | Can - SMD, Radial | 3000 Hrs | 20 % | 112 mA, 280 mA | 0.315 in | Surface Mount | General Purpose | — | 0.248 in | 100 µF | 105 °C | -55 °C | Polar | 16 V | 0.26 in | 0.26 in | 0.34 Ohms |
Chinsan (Elite) CAP ALUM 220UF 20% 16V SMD | Sign in to see pricing | Can - SMD, Radial | 3000 Hrs | 20 % | 112 mA, 280 mA | 0.315 in | Surface Mount | General Purpose | — | 0.248 in | 220 µF | 105 °C | -55 °C | Polar | 16 V | 0.26 in | 0.26 in | 0.34 Ohms |
