Product families from Benchmarq
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Power Management (PMIC) | 1 | Active | ||
| Integrated Circuits (ICs) | 2 | Active | ||
| Power Management (PMIC) | 1 | Active | ||
| Power Management (PMIC) | 3 | Active | ||
| Integrated Circuits (ICs) | 1 | Active | ||
| PMIC | 4 | Active | ||
| Power Management (PMIC) | 1 | Active | ||
| Power Management (PMIC) | 1 | Active | ||
| Power Management - Specialized | 3 | Active | ||
| Integrated Circuits (ICs) | 1 | Active |
Parts from Benchmarq that are not part of a series
| Part Information | Pricing (lowest) | Package Name | Voltage - Supply (Max) | Current - Charging | Package Length | Package Width | Mounting Type | Battery Pack Voltage | Battery Chemistry | Operating Temperature (Min) | Operating Temperature (Max) | Programmable Features | Interface | Function | Number of Cells | Fault Protection | Number of Cells (Min) | Number of Cells (Max) | Charge Current - Max | Package Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

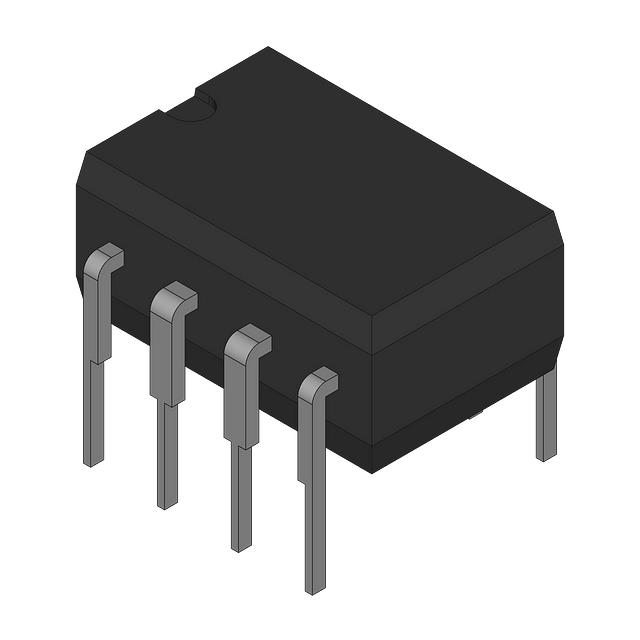

 Benchmarq IC BATT CONTRL MULTI-CHEM 8DIP | Sign in to see pricing | 8-DIP, 8-PDIP | 6 V | Constant, Pulsed | 0.3 in | 7.62 mm | Through Hole | 2 V | Multi-Chemistry | 0 °C | 70 °C | Voltage | — | — | — | — | — | — | — | — |
 Benchmarq IC BATT CHG MULTI-CHEM 16SOIC | Sign in to see pricing | 16-SOIC | 5.5 V | Constant, Pulsed | 0.154 in | 3.9 mm | Surface Mount | — | Multi-Chemistry | -20 °C | 70 °C | Voltage | — | — | — | — | — | — | — | — |
Benchmarq IC BATT PWR SUPPLY SUPPORT CIRC | Sign in to see pricing | 16-SOIC | — | — | 0.154 in | 3.9 mm | Surface Mount | — | Multi-Chemistry | 0 °C | 70 °C | — | Serial | Battery Monitor | — | — | — | — | — | — |
 Benchmarq IC BATT MON MULTI-CHEM 3C 16SOIC | Sign in to see pricing | 16-SOIC | — | — | 0.154 in | 3.9 mm | Surface Mount | — | Multi-Chemistry | 0 °C | 70 °C | — | SMBus | Battery Monitor | 3 | Over Current, Over Temperature, Over/Under Voltage | — | — | — | — |
Benchmarq IC BATT MON MULTI-CHEM 3C 16SOIC | Sign in to see pricing | 16-SOIC | — | — | 0.154 in | 3.9 mm | Surface Mount | — | Multi-Chemistry | 0 °C | 70 °C | — | SMBus | Battery Monitor | 3 | Over Current, Over Temperature, Over/Under Voltage | — | — | — | — |
 Benchmarq BQ2057T LOW DROPOUT LINEAR 2-CEL | Sign in to see pricing | 8-SOIC | 15 V | Constant, Programmable | 0.154 in | 3.9 mm | Surface Mount | 4.1 V | Lithium Ion, Polymer | -20 °C | 70 °C | Current | — | — | 1 | — | — | — | — | — |

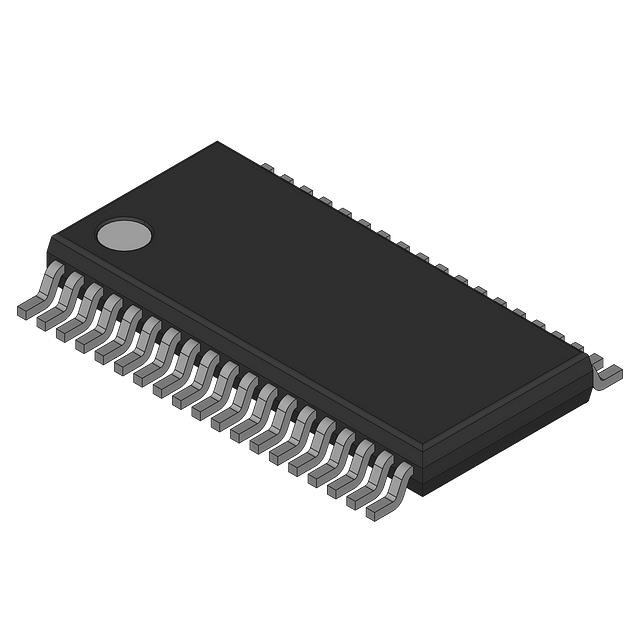

 Benchmarq IC BATT MON LI-ION 3-4CL 38TSSOP | Sign in to see pricing | 38-TFSOP, 38-TSSOP | — | — | 0.173 in | 4.4 mm | Surface Mount | — | Lithium Ion, Polymer | -20 °C | 85 °C | — | Serial | Battery Monitor | — | — | 3 | 4 | — | — |
 Benchmarq IC BATT PWR SUPPLY SUPPORT CIRC | Sign in to see pricing | 38-TFSOP, 38-TSSOP | — | — | 0.173 in | 4.4 mm | Surface Mount | — | Lithium Ion, Polymer | -20 °C | 85 °C | — | SMBus | Battery Monitor | — | — | — | — | — | — |
 Benchmarq IC BATT CHG LI-ION 1CELL 8MSOP | Sign in to see pricing | 8-MSOP, 8-MSOP-PowerPad, 8-TSSOP | 13.5 V | Constant | 0.118 in | 3 mm | Surface Mount | 4.1 V | Lithium Ion, Polymer | -40 °C | 125 °C | Current, Timer | — | — | 1 | Over Temperature, Short Circuit | — | — | 500 mA | Exposed Pad |
 Benchmarq IC BATT CNTL LI-ION 1-4CEL 16DIP | Sign in to see pricing | 16-DIP, 16-PDIP | 5.5 V | Constant | 0.3 in | 7.62 mm | Through Hole | — | Lithium Ion, Polymer | -40 °C | 85 °C | Current | — | — | — | — | 1 | 4 | 2 A | — |
