Product families from BellWether
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from BellWether that are not part of a series
| Part Information | Pricing (lowest) | Number of Rows | Number of Positions Loaded | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Voltage Rating | Style | Contact Finish - Post | Contact Finish Thickness - Mating | Features | Insulation Color | Mounting Type | Termination | Number of Positions | Connector Type | Insulation Height | Pitch - Mating | Contact Finish - Mating | Current Rating | Row Spacing - Mating | Contact Type | Contact Termination | Contact Finish | Pin or Socket | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Type | Contact Finish Thickness | Shrouding | Contact Length - Post | Insulation Material | Contact Material | Contact Shape | Fastening Type | Color | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BellWether CONN RCPT HSG 18POS PH 2.0MM | Sign in to see pricing | 2 | All | -55 °C | 105 °C | UL94 V-0 | 200 VDC | Board, Cable/Wire | Gold | Flash | Board Guide | Natural | Surface Mount | Solder | 18 | Header | 0.276 in | 0.079 in | Gold | 2 A | 0.079 in | Female Socket | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

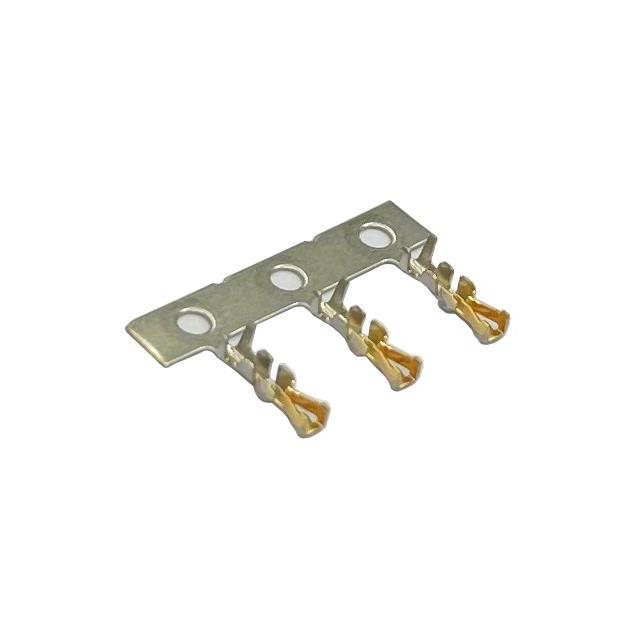

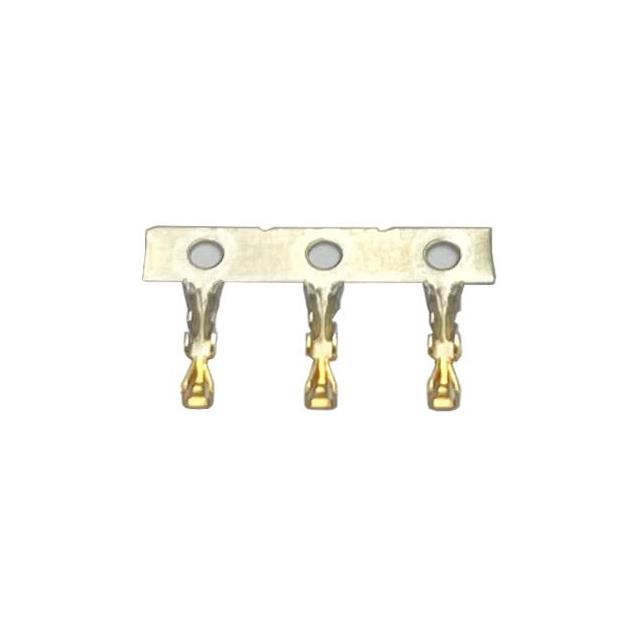

 BellWether CONN SOCKET 26-30AWG CRIMP GOLD | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Crimp | Gold | Socket | 26 AWG | 30 AWG | Stamped | 15 µin | — | — | — | — | — | — | — | — |
 BellWether HEADER 18POS PH 2.00MM VERT TH | Sign in to see pricing | 2 | All | -55 °C | 105 °C | UL94 V-0 | 200 VDC | Board, Cable/Wire | Gold | 15 µin | Board Guide | Natural | Through Hole | Solder | 18 | Header | 0.228 in | 0.079 in | — | 2 A | — | Male Pin | — | — | — | — | — | — | — | Unshrouded | 0.079 in | Glass Filled, Thermoplastic | Copper Alloy | Square | Locking Ramp | — | — |
 BellWether CONN RCPT HSG 2POS PH 3.00MM | Sign in to see pricing | 1 | — | -40 °C | 105 °C | — | — | — | — | — | — | — | Free Hanging (In-Line) | — | 2 | Receptacle | — | — | — | — | — | Female Socket | Crimp | — | — | — | — | — | — | — | — | Nylon, Polyamide (PA) | — | — | Latch Lock | Black | 0.118 in |
 BellWether CONN RCPT HSG 4POS PH 3.00MM | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

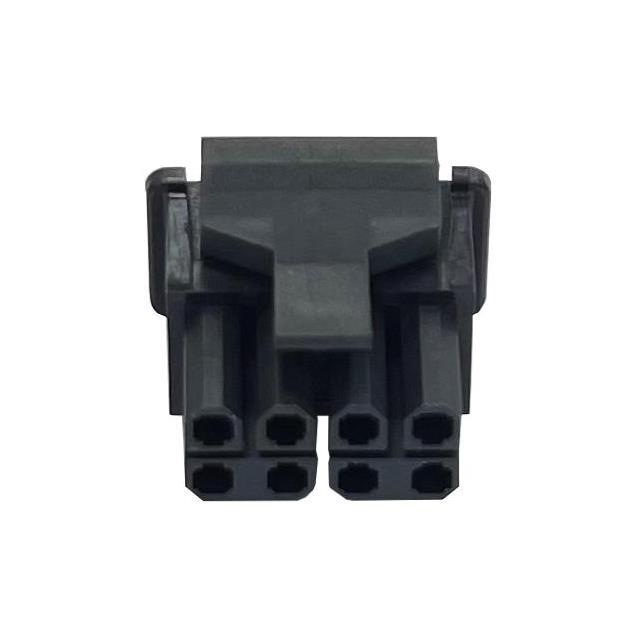

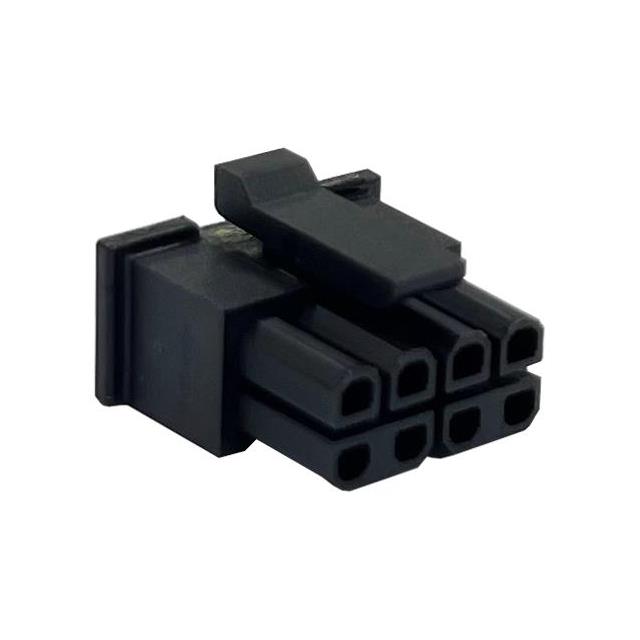

 BellWether CONN RCPT HSG 8POS PH 3.00MM | Sign in to see pricing | 2 | — | -40 °C | 105 °C | — | — | — | — | — | — | — | Free Hanging (In-Line) | — | 8 | Receptacle | — | — | — | — | — | Female Socket | Crimp | — | — | — | — | — | — | — | — | Nylon, Polyamide (PA) | — | — | Latch Lock | Black | 0.118 in |
 BellWether CONN RCPT HSG 16POS PH 3.00MM | Sign in to see pricing | 2 | — | -40 °C | 105 °C | — | — | — | — | — | — | — | Free Hanging (In-Line) | — | 16 | Receptacle | — | — | — | — | — | Female Socket | Crimp | — | — | — | — | — | — | — | — | Nylon, Polyamide (PA) | — | — | Latch Lock | Black | 0.118 in |
 BellWether CONN RCPT HSG 18POS PH 3.00MM | Sign in to see pricing | 2 | — | -40 °C | 105 °C | — | — | — | — | — | — | — | Free Hanging (In-Line) | — | 18 | Receptacle | — | — | — | — | — | Female Socket | Crimp | — | — | — | — | — | — | — | — | Nylon, Polyamide (PA) | — | — | Latch Lock | Black | 0.118 in |
 BellWether HEADER 2POS P=3MM VER DIP 2.5WM | Sign in to see pricing | 2 | All | -40 °C | 105 °C | UL94 V-0 | 600 V | Board, Cable/Wire | Tin | 100 µin | Board Guide | Black | Through Hole | Solder | 2 | Header | 0.39 in | 0.118 in | — | 12.5 A | — | Male Pin | — | — | — | — | — | — | — | Shrouded - 4 Wall | 0.098 in | Glass Filled, Thermoplastic | Copper Alloy | Square | Locking Ramp | — | — |
 BellWether HEADER 8POS P=3MM VER DIP 3.18 | Sign in to see pricing | 2 | All | -40 °C | 105 °C | UL94 V-0 | 600 V | Board, Cable/Wire | Tin | 100 µin | Board Guide | Black | Through Hole | Solder | 8 | Header | 0.39 in | 0.118 in | — | 10.5 A | — | Male Pin | — | — | — | — | — | — | — | Shrouded - 4 Wall | 0.125 in | Glass Filled, Thermoplastic | Copper Alloy | Square | Locking Ramp | — | — |
