Product families from Beking Optoelectronics
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
Parts from Beking Optoelectronics that are not part of a series
| Part Information | Pricing (lowest) | Configuration | Lens Color | Voltage - Forward (Vf) (Typ) | Height (Max) | Viewing Angle | Current - Test | Package / Case | Mounting Type | Millicandela Rating (Min) | Millicandela Rating (Max) | Color | Package Name | Lens Transparency | Lens Style | Lens Width | Lens Length | Size / Dimension Width | Size / Dimension Length | Package Length | Package Width | Package Dimension | Output Type | Current - DC Forward (If) (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Number of Channels | Voltage - Output (Max) | Fall Time (Typ) | Rise Time (Typ) | Input Type | Voltage - Isolation | Current - Output / Channel | Vce Saturation (Max) | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

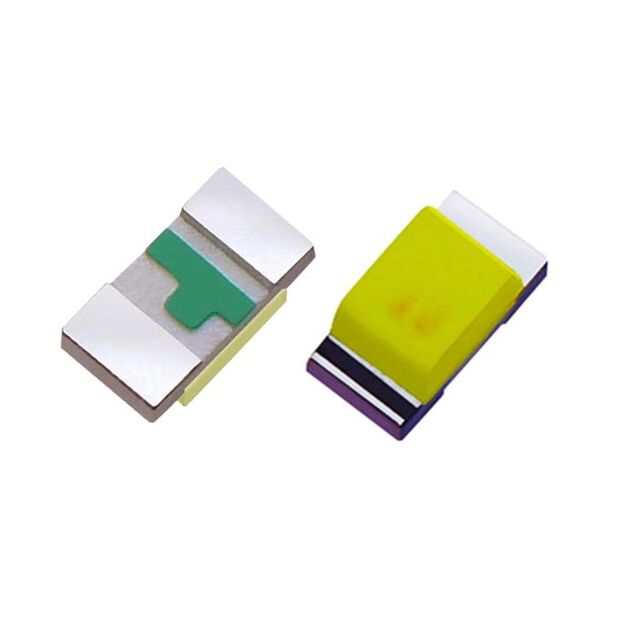

 Beking Optoelectronics LED WHITE DIFFUSED 0402 SMD | Sign in to see pricing | Standard | Yellow | 2.8 V | 0.45 mm | 140 ° | 5 mA | 0402 (1005 Metric) | Surface Mount | 230 mcd | 330 mcd | White | 0402 (1006 Metric) | Diffused | Flat Top, Rectangle | 0.5 mm | 1 mm | 0.55 mm | 1 mm | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

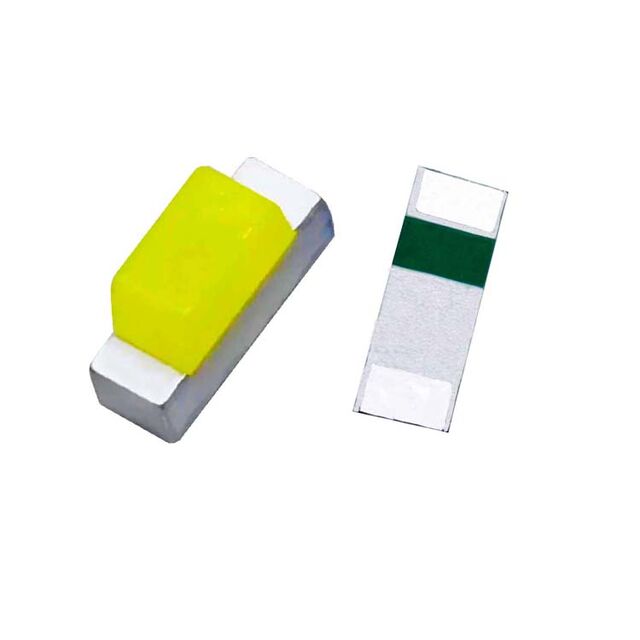

 Beking Optoelectronics LED WHITE DIFFUSED 0602 SMD | Sign in to see pricing | Standard | Yellow | 2.95 V | 1 mm | 140 ° | 5 mA | 0602 (1605 Metric) | Surface Mount | 270 mcd | 330 mcd | White | 0602 (1605 Metric) | Diffused | Flat Top, Rectangle | 0.6 mm | 1.7 mm | 0.6 mm | 1.7 mm | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

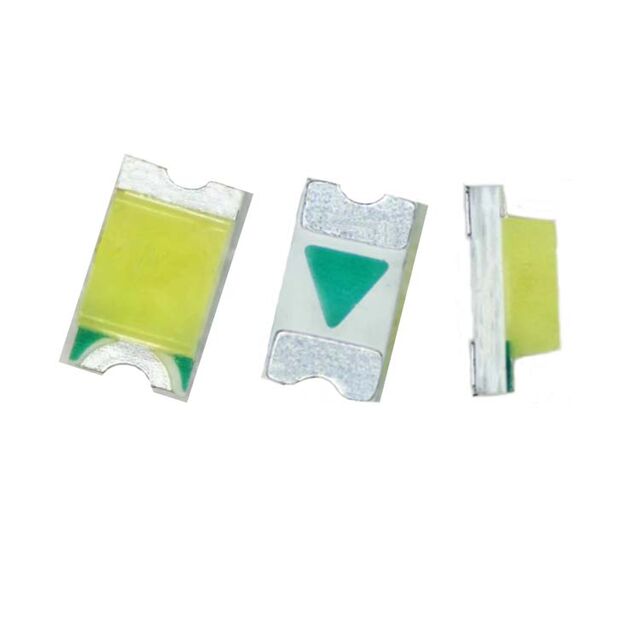

 Beking Optoelectronics LED WHITE DIFFUSED 0603 SMD | Sign in to see pricing | Standard | Yellow | 2.95 V | 0.6 mm | 140 ° | — | 0603 (1608 Metric) | Surface Mount | 240 mcd | 300 mcd | White | 0603 (1608 Metric) | Diffused | Flat Top, Rectangle | 0.8 mm | 1.6 mm | 0.8 mm | 1.6 mm | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

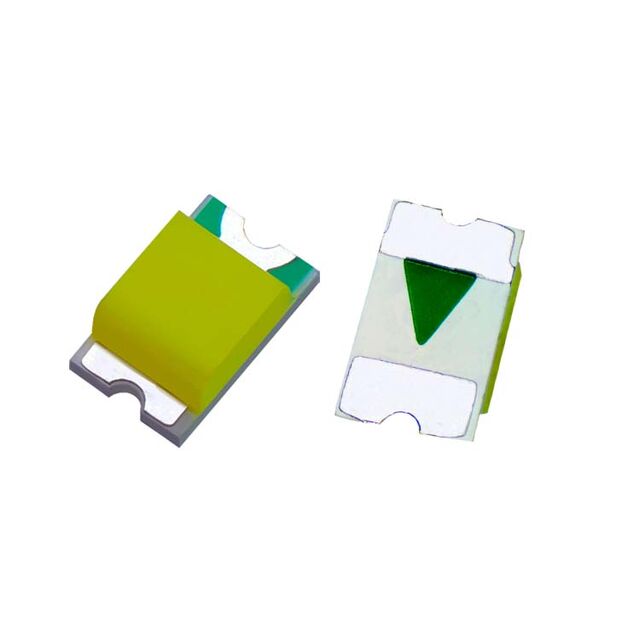

 Beking Optoelectronics LED WHITE DIFFUSED 0805 SMD | Sign in to see pricing | Standard | Yellow | 2.8 V | 0.75 mm | 140 ° | 5 mA | 0805 (2012 Metric) | Surface Mount | 230 mcd | 400 mcd | White | 0805, 0805 (2012 Metric) | Diffused | Flat Top, Rectangle | 1.25 mm | 2 mm | 1.2 mm | 2 mm | 2 mm | 1.2 mm | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

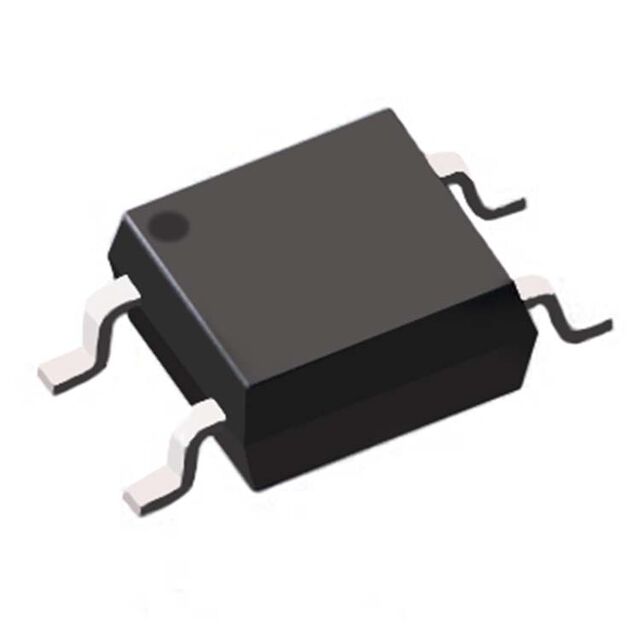

 Beking Optoelectronics OPTOISOLATOR TRANSISTOR 357X | Sign in to see pricing | — | — | 1.4 V | — | — | — | 4-SMD, Gull Wing | Surface Mount | — | — | — | 4-SOP | — | — | — | — | — | — | — | — | 2.54 mm | Transistor | 50 mA | 110 °C | -55 °C | 1 | 80 V | 3 µs | 4 µs | DC | 3750 VDC | 50 mA | 200 mV | 80 % | 600 % |

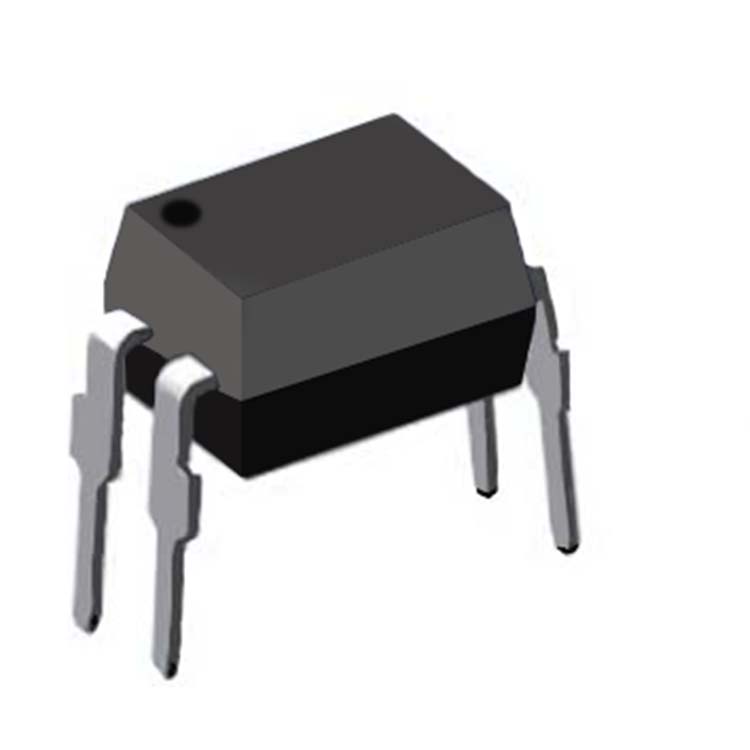

 Beking Optoelectronics OPTOISOLATOR TRANSISTOR 817 | Sign in to see pricing | — | — | 1.25 V | — | — | — | — | Through Hole | — | — | — | 4-DIP | — | — | — | — | — | — | 0.3 in | 7.62 mm | — | Transistor | 45 mA | 110 °C | -55 °C | 1 | 80 V | 3 µs | 4 µs | DC | 5000 Vrms | 50 mA | 200 mV | 80 % | 600 % |

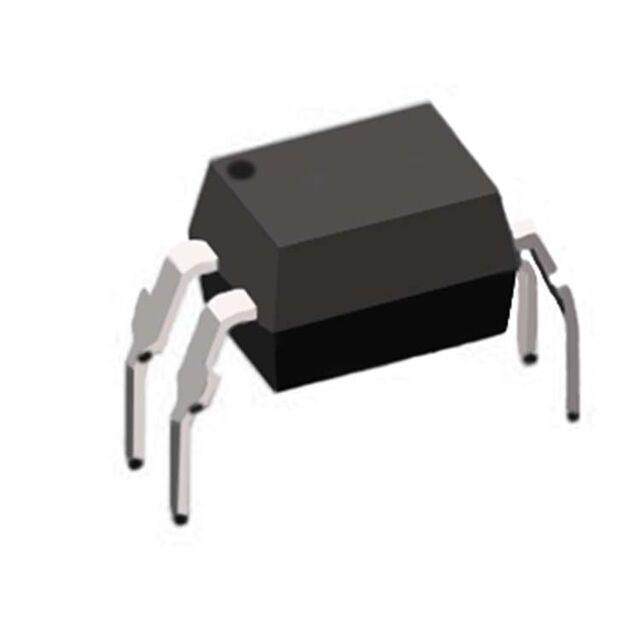

 Beking Optoelectronics OPTOISOLATOR TRANSISTOR 817 | Sign in to see pricing | — | — | — | — | — | — | — | Through Hole | — | — | — | 4-DIP, 4-DIP-M | — | — | — | — | — | — | 0.3 in | 7.62 mm | — | — | — | 110 °C | -55 °C | 1 | — | 3 µs | 4 µs | DC | 5000 Vrms | — | 200 mV | 80 % | 600 % |

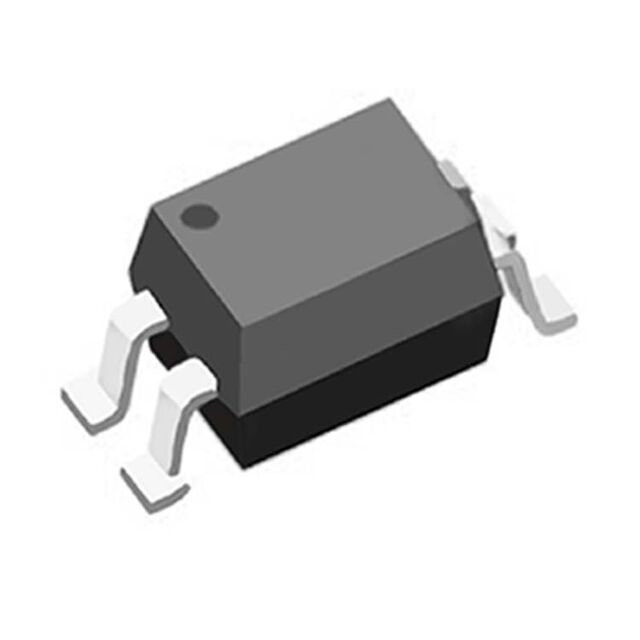

 Beking Optoelectronics OPTOISOLATOR TRANSISTOR 817 | Sign in to see pricing | — | — | 1.25 V | — | — | — | 4-SMD, Gull Wing | Surface Mount | — | — | — | 4-SMD | — | — | — | — | — | — | — | — | — | Transistor | 45 mA | 110 °C | -55 °C | 1 | 80 V | 3 µs | 4 µs | DC | 5000 Vrms | 50 mA | 200 mV | 80 % | 600 % |
