Product families from AzureWave Technologies
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from AzureWave Technologies that are not part of a series
| Part Information | Pricing (lowest) | Frequency | Current - Transmitting | RF Family/Standard | Antenna Type | Data Rate | Modulation | Utilized IC / Part | Current - Receiving | Sensitivity | Serial Interfaces | Mounting Type | Protocol | Voltage - Supply | Power - Output | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Proto Board Type | Number of Positions | Pitch | Package Accepted | Material | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Memory Type | Memory Size (Flash) | Memory Size (SRAM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AzureWave Technologies WI-FI 4 + BT5. 2 LGA MODULE | Sign in to see pricing | 2.4 GHz, 2.4GHz, 5GHz, 5 GHz | 400 mA | Bluetooth, WiFi | Antenna Not Included | 72.2 Mbps | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, OFDM | IW416 | 200 mA | -86 dBm | SDIO | Surface Mount | 802.11a, 802.11b, 802.11g, 802.11n | 3.3 V | 17 dBm | LGA Module | 70 °C | 0 °C | — | — | — | — | — | — | — | — | — | — |
 AzureWave Technologies EVB OF AW-AM510 | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Connector to Plated Through Hole | 4 | 0.1 in | SD Card | FR4 Epoxy Glass | — | — | — | — | — |
 AzureWave Technologies WI-FI 5 + BT 5.0 M.2 2230 MODULE | Sign in to see pricing | 2.4 GHz, 2.4GHz, 5GHz, 5 GHz | 727 mA | Bluetooth, WiFi | Antenna Not Included | 866.7 Mbps | 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK | — | 350 mA | -82 dBm | PCIe, USB | Card Edge | 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, Bluetooth v5.3 | 3.5 V | 18 dBm | Module | 70 °C | 0 °C | — | — | — | — | — | — | — | — | — | — |

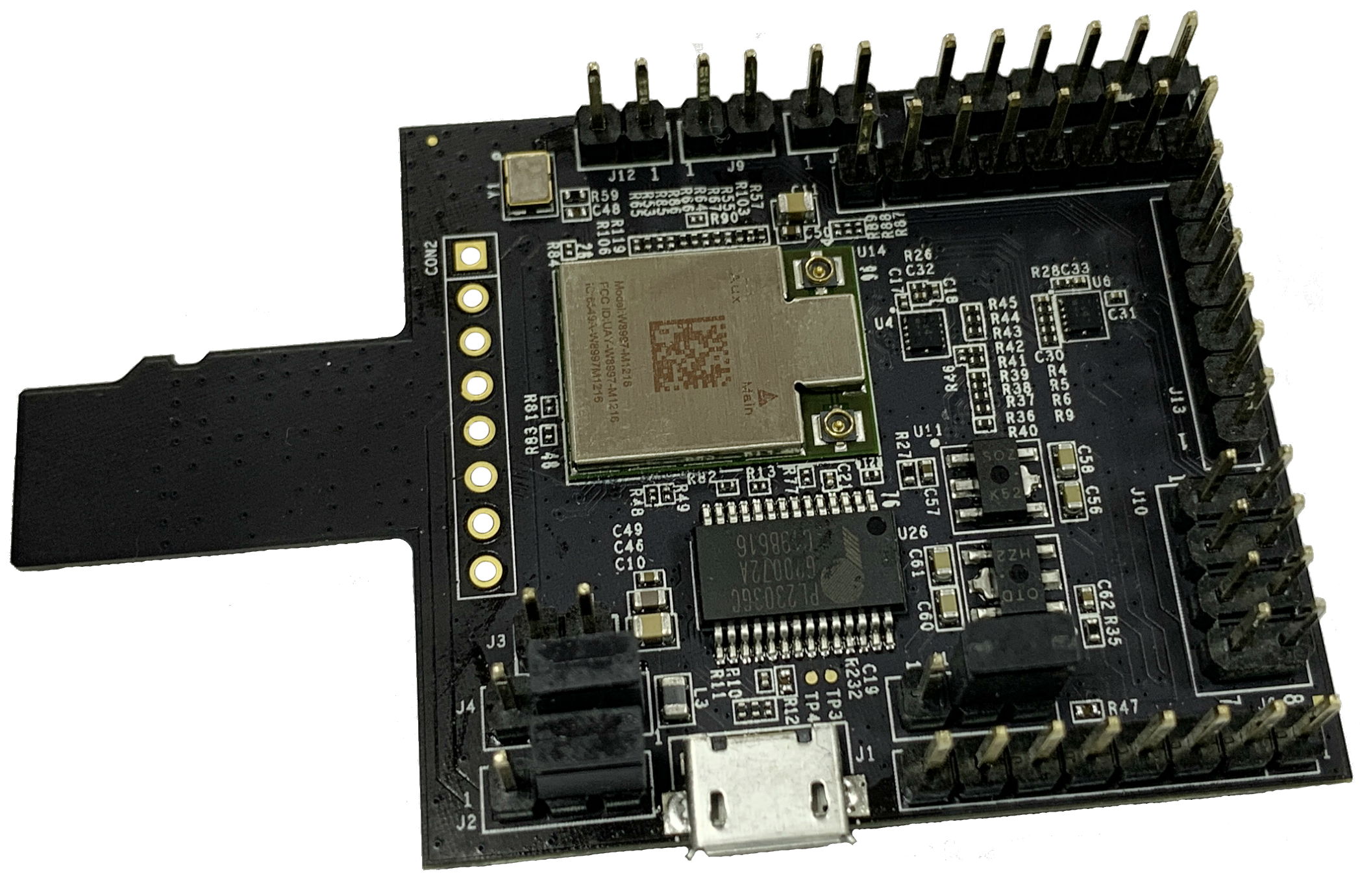

 AzureWave Technologies EVB OF AW-CM276NF | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Connector to Plated Through Hole | 4 | 0.1 in | SD Card | FR4 Epoxy Glass | — | — | — | — | — |
 AzureWave Technologies WI-FI 5 + BT5. 3 M.2 1216 MODULE | Sign in to see pricing | 2.4 GHz, 2.4GHz, 5GHz, 5 GHz | 900 mA | Bluetooth, WiFi | Antenna Not Included | 866.7 Mbps | 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK | 88W8997 | 300 mA | -88 dBm | PCIe, UART | Surface Mount | 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, Bluetooth v5.0 | 3.3 V | 17 dBm | LGA Module | 85 °C | -30 °C | — | — | — | — | — | — | — | — | — | — |
 AzureWave Technologies EVB OF AW-CM358 | Sign in to see pricing | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | Connector to Plated Through Hole | 4 | 0.1 in | SD Card | — | — | — | — | — | — |
 AzureWave Technologies WI-FI 4 MICROCONTROLLER MODULE | Sign in to see pricing | 2.4 GHz, 2.4GHz, 5GHz, 5 GHz | 400 mA | WiFi | Antenna Included | 72.2 Mbps | 16QAM, 64QAM, BPSK, CCK, DSSS, OFDM, QPSK | MW320 | 200 mA | -84 dBm | — | Surface Mount | 802.11b, 802.11g, 802.11n | 3.3 V | 17 dBm | LGA Module | 85 °C | -30 °C | — | — | — | — | — | — | — | — | — | — |
 AzureWave Technologies BLE 5.0 STAMP LGA MODULE | Sign in to see pricing | 2.4 GHz | 10 mA | Bluetooth | Antenna Included | 2 Mbps | DQPSK, GFSK | QN9090THN | 10 mA | -94 dBm | UART | Surface Mount | Bluetooth v5.0 | — | 10 dBm | LGA Module | 85 °C | -40 °C | — | — | — | — | — | 1.9 V | 3.6 V | — | — | — |
 AzureWave Technologies BLE 5.0/802.15.4 STAMP MODULE | Sign in to see pricing | 2.4 GHz | 20 mA | Bluetooth, Zigbee | Antenna Not Included | 250 Kbps | DQPSK, GFSK | K32W061 | 10 mA | -94 dBm | UART | Surface Mount | Bluetooth v5.0, Thread, Zigbee® | — | 10 dBm | LGA Module | 85 °C | -40 °C | — | — | — | — | — | 1.9 V | 3.6 V | — | — | — |
 AzureWave Technologies ZIGBEE RF MODULE, IEEE 802.15.4, 2.405GHZ TO 2.48GHZ, I2C, PDM, PWM, SPI, UART | Sign in to see pricing | 2.4 GHz | 20 mA | Bluetooth, Zigbee | Antenna Included | 250 Kbps | O-QPSK | JN5189THN | 10 mA | -97 dBm | UART | Surface Mount | Thread, Zigbee® | — | 10 dBm | LGA Module | 85 °C | -40 °C | — | — | — | — | — | 1.9 V | 3.6 V | Flash, SRAM | 640 kB | 152 kB |
