Product families from Atlanta Micro Inc.
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Atlanta Micro Inc. that are not part of a series
| Part Information | Pricing (lowest) | Voltage - Supply | RF Type | Package / Case | Current - Supply | Noise Figure | P1dB | Package Width | Package Name | Package Length | Frequency | Mounting Type | Gain | Test Frequency | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Frequency (Min) | Frequency (Max) | Test Frequency (Minimum) | Test Frequency (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

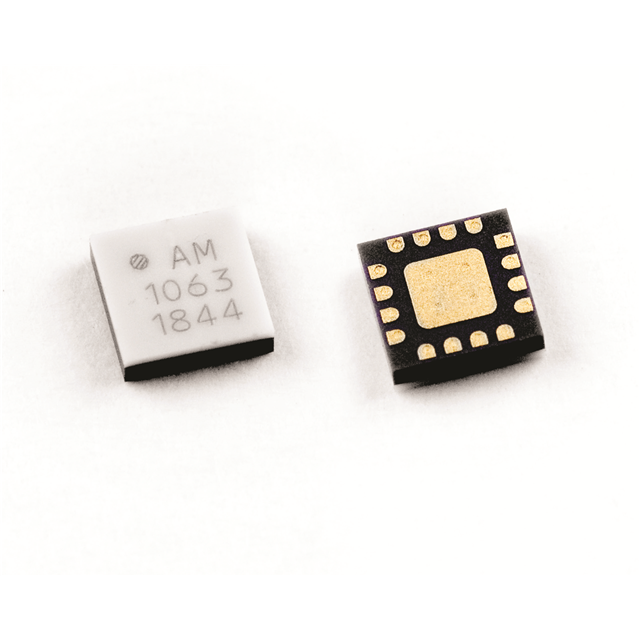

 Atlanta Micro Inc. DC TO 10 GHZ GAIN BLOCK | Sign in to see pricing | 5.2 V | General Purpose | 16-VFQFN Exposed Pad | 74 mA | 2.5 dB | 18 dBm | 3 mm | 16-QFN | 3 mm | 10 GHz | Surface Mount | 15 dB | — | — | — | — | — | — | — |

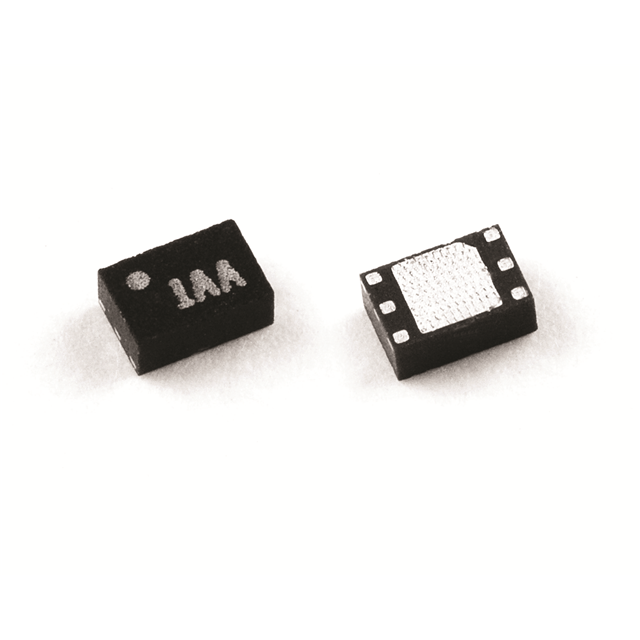

 Atlanta Micro Inc. DC TO 10 GHZ MINIATURE GAIN BLOC | Sign in to see pricing | 5.2 V | General Purpose | 6-VFDFN Exposed Pad | 74 mA | 2.5 dB | 18 dBm | 2 mm | 6-DFN | 1.3 mm | 10 GHz | Surface Mount | 15 dB | — | — | — | — | — | — | — |
Atlanta Micro Inc. DC TO 8 GHZ GAIN BLOCK | Sign in to see pricing | 5.2 V | General Purpose | 16-VFQFN Exposed Pad | 73 mA | 2 dB | 18 dBm | 3 mm | 16-QFN | 3 mm | 8 GHz | Surface Mount | 21 dB | — | — | — | — | — | — | — |
Atlanta Micro Inc. 5 GHZ TO 20GHZ BYPASSABLE AMPLIF | Sign in to see pricing | 3.5 V | General Purpose | 24-VFQFN Exposed Pad | 96 mA | 3.5 dB | 14 dBm | 4 mm | 24-QFN | 4 mm | 20 GHz | Surface Mount | 20 dB | — | — | — | — | — | — | — |
 Atlanta Micro Inc. BROADBAND GAIN EQUALIZING AMPLIF | Sign in to see pricing | 3.5 V | General Purpose | 12-LFQFN Exposed Pad | 59 mA | 4.1 dB | 17 dBm | 3 mm | 12-QFN | 3 mm | 18 GHz | Surface Mount | 13.9 dB | 10 GHz | — | — | — | — | — | — |
 Atlanta Micro Inc. 2.0 GHZ TO 18.0 GHZ DRIVER AMPLI | Sign in to see pricing | 5.2 V | General Purpose | 12-LFQFN Exposed Pad | 100 mA | 2 dB | 21 dBm | 3 mm | 12-QFN | 3 mm | 18 GHz | Surface Mount | 16 dB | 10 GHz | — | — | — | — | — | — |
 Atlanta Micro Inc. DC TO 10 GHZ MINIATURE LOW NOISE | Sign in to see pricing | — | General Purpose | 6-VFDFN Exposed Pad | 80 mA | 2.5 dB | 18 dBm | 2 mm | 6-DFN | 1.3 mm | — | Surface Mount | 15 dB | — | 5.2 V | 2.7 V | 0 Hz | 10 GHz | 0 GHz | 10 GHz |
Atlanta Micro Inc. DC TO 8 GHZ MINIATURE LOW NOISE | Sign in to see pricing | 5.2 V | General Purpose | 6-VFDFN Exposed Pad | 85 mA | 1.5 dB | 18 dBm | 2 mm | 6-DFN | 1.3 mm | 8 GHz | Surface Mount | 21 dB | — | — | — | — | — | — | — |
 Atlanta Micro Inc. GAIN BLOCK, 5 - 20 GHZ, 3.3V, 93 | Sign in to see pricing | 3.3 V | — | 16-QFN Exposed Pad | 93 mA | 2.5 dB | 16 dBm | 3 mm | 16-QFN | 3 mm | — | Surface Mount | 20 dB | — | — | — | 5 GHz | 20 GHz | — | — |
 Atlanta Micro Inc. IC RF AMP GPS 0HZ-10GHZ 16QFN | Sign in to see pricing | — | General Purpose | 16-VFQFN Exposed Pad | 74 mA | 2.5 dB | 18 dBm | 3 mm | 16-QFN | 3 mm | — | Surface Mount | 15 dB | — | 5.2 V | 2.7 V | 0 Hz | 10 GHz | — | — |
