Product families from Anatech Microwave Company
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
Parts from Anatech Microwave Company that are not part of a series
| Part Information | Pricing (lowest) | Package / Case | Frequency (Max) | Frequency (Min) | Size / Dimension Height | Size / Dimension Diameter | Imbalance (Max) | Return Loss | Isolation (Min) | Insertion Loss | Coupling Factor | Coupling Factor Tolerance | Power - Max | Frequency Range 1 (Max) | Frequency Range 1 (Min) | Applications | Package Name | Coupler Type | Size / Dimension Width | Size / Dimension Length | VSWR (Max) | Insertion Loss (Max) | Power - Average Forward | Type | VSWR | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

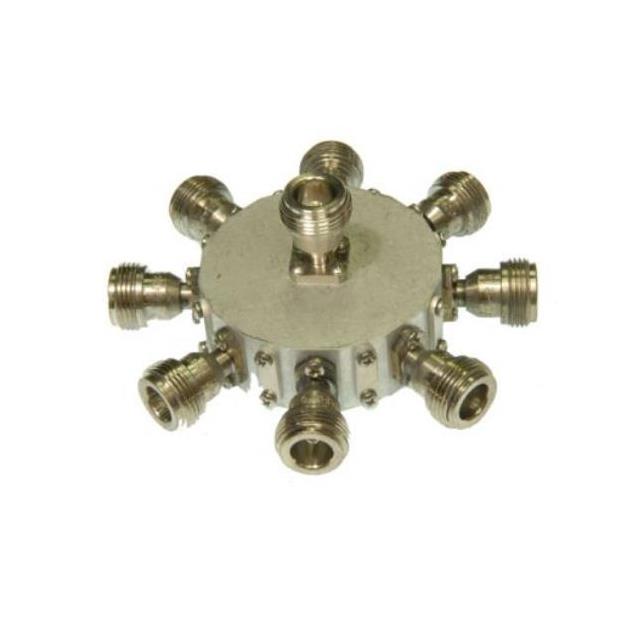

 Anatech Microwave Company DC-4.0 GHZ 8 WAY RESISTIVE POWER | Sign in to see pricing | Module | 4 GHz | 0 Hz | 0.75 in | 2.11 in | 5 ° | 18 dB | 17 dB | 18 dB | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |

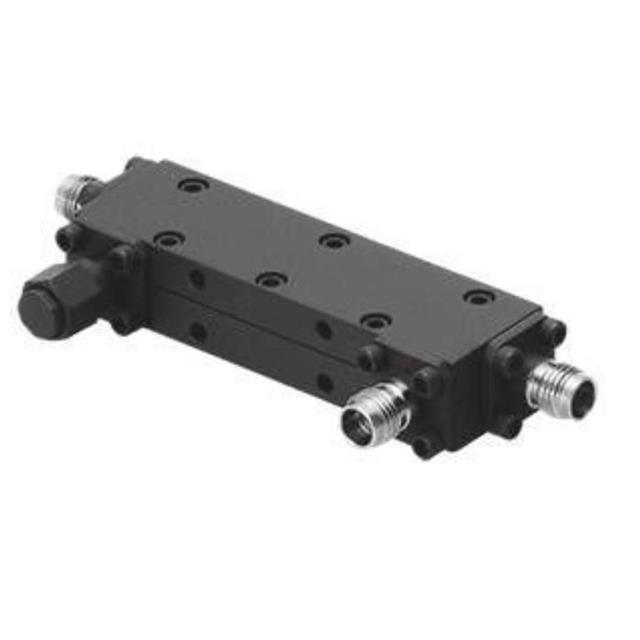

 Anatech Microwave Company 0.5-100 MHZ DIRECTIONAL COUPLER | Sign in to see pricing | Module, SMA Connectors | — | — | — | — | — | — | — | 0.4 dB | 30 dB | 0.5 dB | 3 VA | 100 MHz | 500 kHz | General Purpose | Module | Standard | — | — | — | — | — | — | — | — |
 Anatech Microwave Company 0.5-250 MHZ DIRECTIONAL COUPLER | Sign in to see pricing | Module, SMA Connectors | — | — | — | — | — | — | — | 0.6 dB | 20 dB | 0.5 dB | 3 VA | 250 MHz | 500 kHz | General Purpose | Module | Standard | — | — | — | — | — | — | — | — |
Anatech Microwave Company 0.75-75 MHZ DIRECTIONAL COUPLER | Sign in to see pricing | 8-DIP Module | 75 MHz | 750 kHz | — | — | — | — | — | 0.35 dB | 10 dB | 0.3 dB | 5 VA | — | — | General Purpose | Module | Standard | — | — | — | — | — | — | — | — |
 Anatech Microwave Company 1-200 MHZ 3 WAY POWER DIVIDER | Sign in to see pricing | Module | 200 MHz | 1 MHz | 0.75 in | — | 2 ° | — | 25 dB | 0.5 dB | — | — | — | — | — | — | — | — | 1.25 in | 1.25 in | 1.3 | — | — | — | — | — |
 Anatech Microwave Company 10-1000 MHZ 2 WAY POWER DIVIDER | Sign in to see pricing | Module, SMA Connectors | — | — | 0.75 in | — | 3 ° | — | 30 dB | 0.8 dB | — | — | — | 1 GHz | 10 MHz | — | — | — | 1.25 in | 1.25 in | 1.3 | — | — | — | — | — |
 Anatech Microwave Company 1.300-1.530 GHZ CIRCULATOR | Sign in to see pricing | Module | 1.53 GHz | 1.3 GHz | — | — | — | — | 20 dB | — | — | — | — | — | — | — | Module | — | — | — | — | 0.5 dB | 50 W | Circulator | 1.25 | — |
 Anatech Microwave Company 0.150-0.160 GHZ CIRCULATOR | Sign in to see pricing | Module | 160 MHz | 150 MHz | — | — | — | — | 20 dB | — | — | — | — | — | — | — | Module | — | — | — | — | 0.6 dB | 50 W | Circulator | 1.25 | TYPE-N FEMALE |
 Anatech Microwave Company 2.0-18.0 GHZ 4 WAY POWER DIVIDER | Sign in to see pricing | Module, SMA Connectors | 18 GHz | 2 GHz | 0.41 in | — | 5 ° | — | 15 dB | 1.3 dB | — | — | — | — | — | — | — | — | 2.5 in | 4 in | 2 | — | — | — | — | — |
 Anatech Microwave Company 2000-4000 MHZ ISOLATOR | Sign in to see pricing | Module, SMA Connectors | 4 GHz | 2 GHz | — | — | — | — | 20 dB | — | — | — | — | — | — | — | Module | — | — | — | — | 0.6 dB | 1 W | Isolator | 1.3 | SMA-FEMALE, SMA-MALE |
